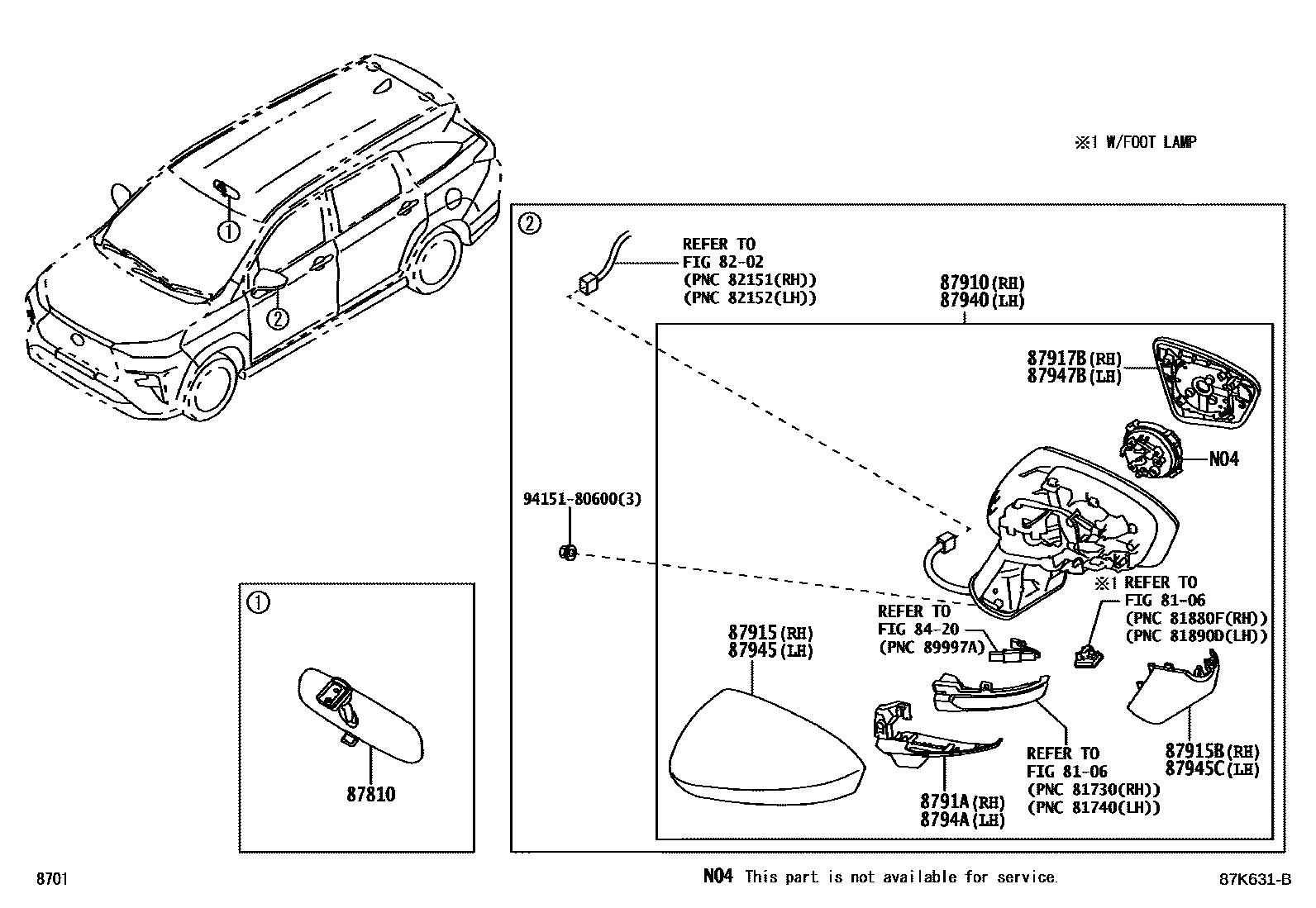

Toyota VELOZ — MIRROR

8106

8202

8420

87810MIRROR ASSY, INNER REAR VIEW

main87810-BZ270-C0iW151202206

BLACK,TRIM2#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-BZQ60supersedes 87910-BZQ80iW151202206

PAINT REQ.,LANE CHANGE ASSIST-W/O

87915COVER, OUTER MIRROR, RH

main87915-BZ600iW151202206

PAINT REQ.

87915BCOVER, OUTER MIRROR, LOWER RH

main87915-BZ630iW151202206

87917BMIRROR, OUTER REAR VIEW, RH

main87917-BZ210supersedes 87917-BZ250iW151202206

LANE CHANGE ASSIST-W/O

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-BZ030supersedes 8791A-BZ090iW151202206

LANE CHANGE ASSIST-W/O

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-BZQ40supersedes 87940-BZQ60iW151202206

PAINT REQ.,LANE CHANGE ASSIST-W/O

87945COVER, OUTER MIRROR, LH

main87945-BZ600iW151202206

PAINT REQ.

87945CCOVER, OUTER MIRROR, LOWER LH

main87945-BZ630iW151202206

87947BMIRROR, OUTER REAR VIEW, LH

main87947-BZ200supersedes 87947-BZ230iW151202206

LANE CHANGE ASSIST-W/O

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-BZ030supersedes 8794A-BZ090iW151202206

LANE CHANGE ASSIST-W/O

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
