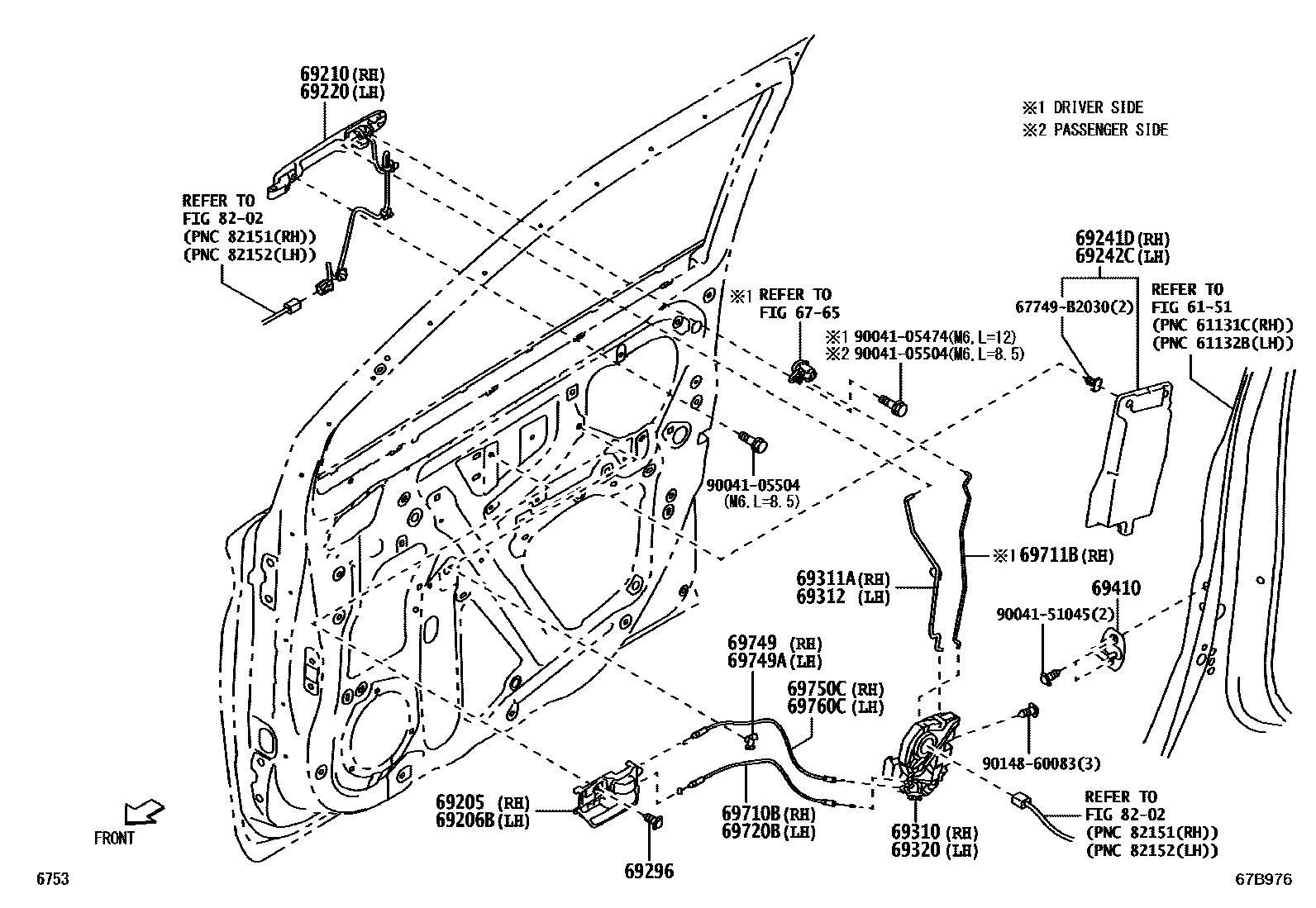

Toyota VELOZ — FRONT DOOR LOCK & HANDLE
6151
6765
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE,W09
SILVER ME.,S28 ,XL2
MET. BLUISH BLACK,X16
RED ME.,R67
BLUE ME.,XL3
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE,W09
SILVER ME.,S28 ,XL2
MET. BLUISH BLACK,X16
RED ME.,R67
BLUE ME.,XL3
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8202
67749B2030CLIP, DOOR TRIM MOULDING
main67749-B2030
9004105474
main90041-05474
9004105504
main90041-05504
9004151045
main90041-51045
9014860083
main90148-60083
27 parts on this diagram · 1 diagram in section
