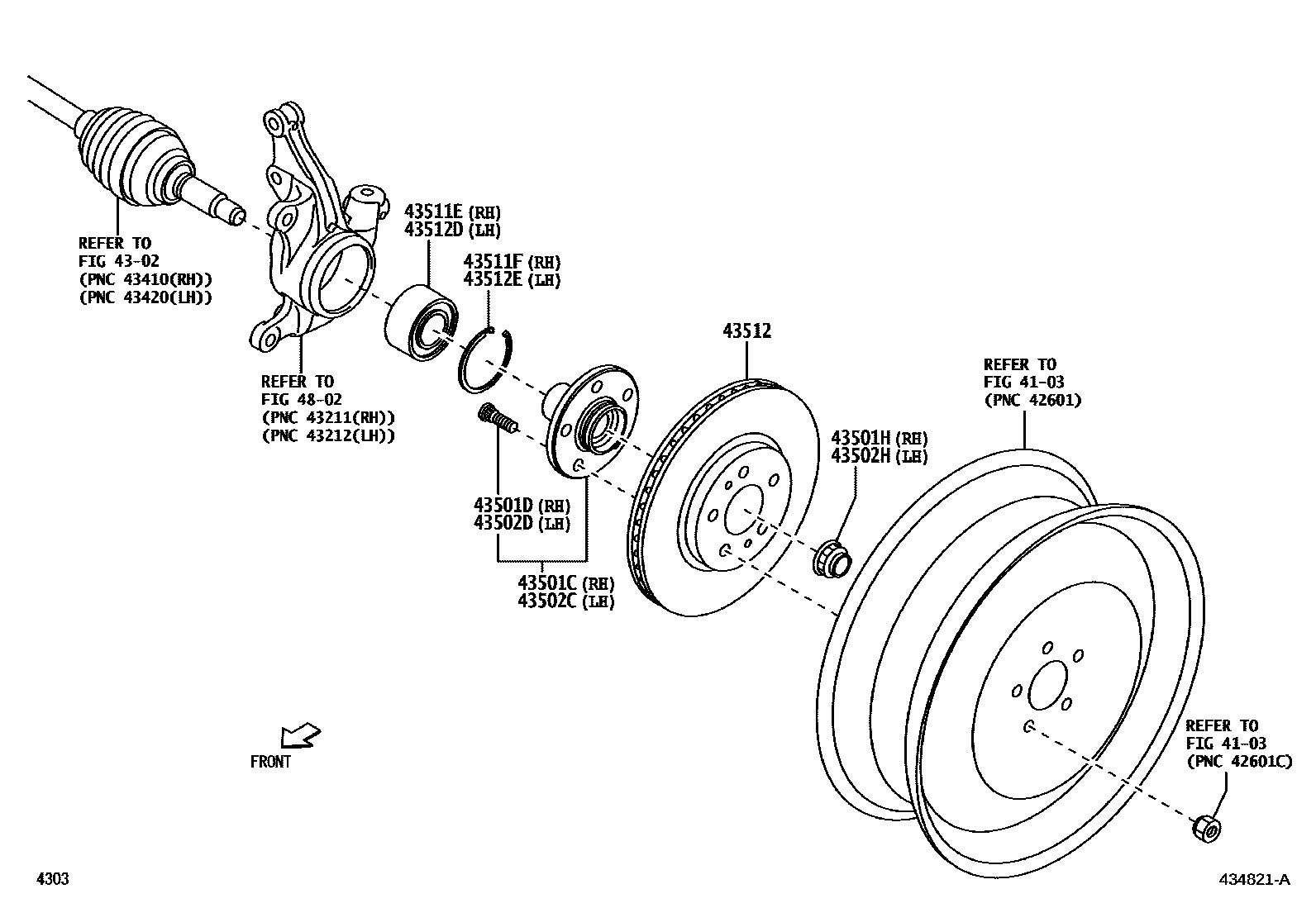

Toyota VELOZ — FRONT AXLE HUB

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-BZ240iW151202206

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×5iW151202206

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iW151202206

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-BZ240iW151202206

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×5iW151202206

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iW151202206

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-BZ070iW151202206

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21188iW151202206

43512DISC, FRONT

main43512-BZ430×2iW151202206

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-BZ070iW151202206

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21188iW151202206

4802

14 parts on this diagram · 1 diagram in section
