Toyota VELOZ — ANTENNA

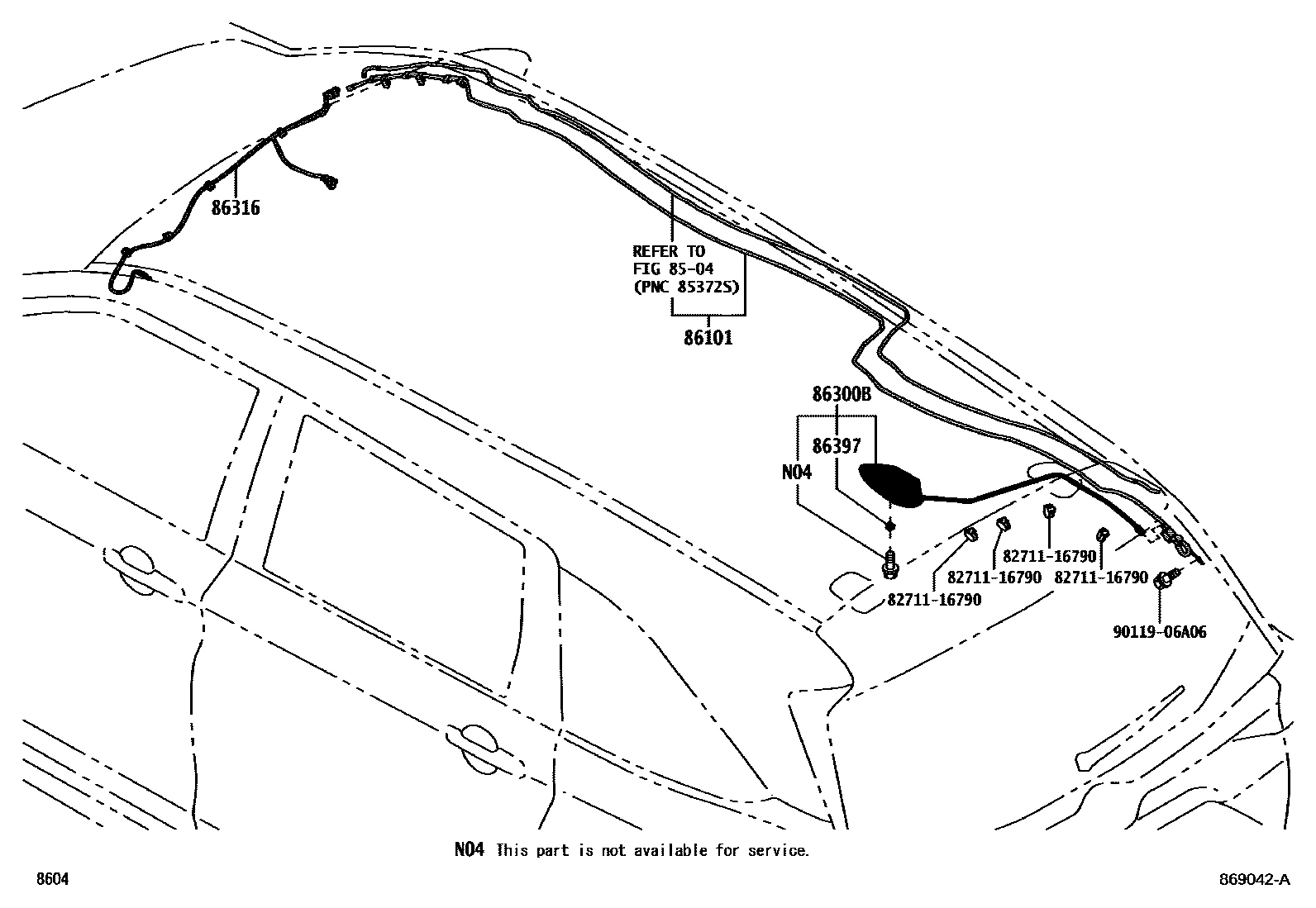

Parts diagram

8504REAR WASHER

→ Go to FIG 85-04

86101CORD SUB-ASSY, ANTENNA

main86316-BZ770i202206

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-BZ490-A0i202206

WHITE,W09

main86300-BZ490-B0i202206

SILVER ME.,S28

main86300-BZ490-C0i202206

MET. BLUISH BLACK,X16 ,XL2 ,XL3

main86300-BZ490-D0i202206

RED ME.,R67

86316CABLE, ANTENNA

main86316-BZ740i202206

86397PLATE, ANTENNA EARTH

main86397-BZ090i202206

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906A06

main90119-06A06

7 parts on this diagram · 1 diagram in section

ANTENNA for Toyota VELOZ

This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota VELOZ. Key components include: REAR WASHER, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, AMPLIFIER, NO.1, CABLE, ANTENNA, PLATE, ANTENNA EARTH.
