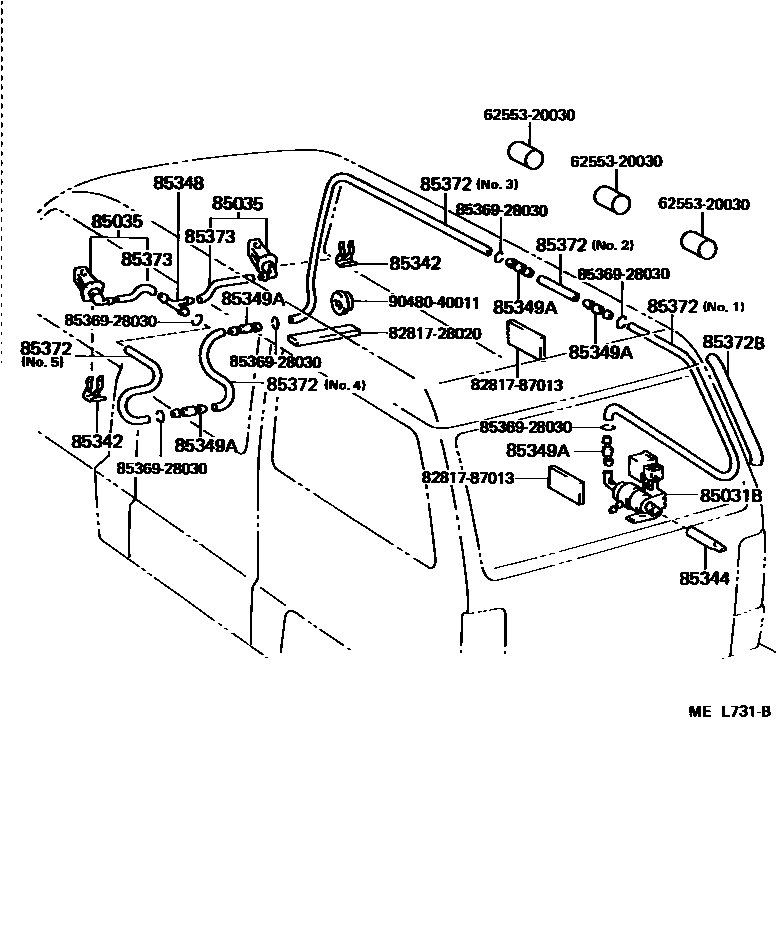

Toyota VAN — WINDSHIELD WASHER

0001 1 0002 1

85031BVALVE SUB-ASSY, WASHER

main85031-87002iYR2#,3#198808-198908

main85321-87001iYR2#,3#198908-199001

85035NOZZLE SUB-ASSY, WASHER

main85035-28040iYR2#,3#198808-199001

RH

main85035-28050iYR2#,3#198808-199001

LH

85342HOLDER, WASHER NOZZLE

main85342-95J00×2iYR2#,3#198808-199001

85344TUBE, WINDSHIELD WASHER HOSE, STOP

main85344-30010iYR2#,3#198808-199001

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-40010iYR2#,3#198808-199001

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-14030iYR2#,3#198808-199001

sub85031-14080

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-20010×4iYR2#,3#198808-199001

sub85334-22480

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85354-28021iYR2#,3#198808-199001

L=2330,NO.3

main85354-87001iYR2#,3#198808-199001

L=2250,NO.1

main90099-33075×2iYR2#,3#198808-199001

L=1800(*H,L=40),NO.2 & NO.4

main90446-08007iYR2#,3#198808-199001

L=1450(*H,L=870),NO.5

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85343-87004iYR2#,3#198808-199001

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iYR2#,3#198808-199001

L=1000(*H,L=360),LH,RH

6255320030TRIM, FLOOR SIDE

main62553-20030

8281728020PROTECTOR, WIRING HARNESS, NO.1

main82817-28020

8281787013PROTECTOR, WIRING HARNESS, NO.1

main82817-87013

8536928030CLAMP

main85369-28030

9048040011

main90480-40011

15 parts on this diagram · 2 diagrams in section
