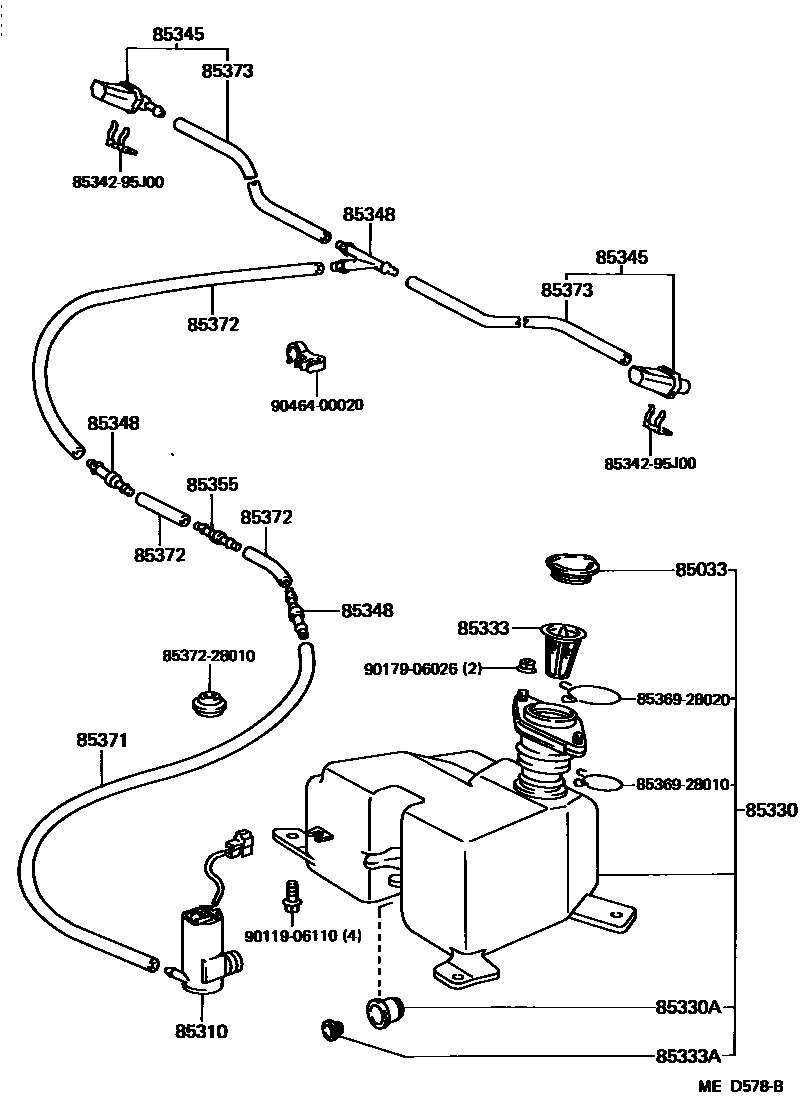

Toyota VAN — WINDSHIELD WASHER

0001 1 0002 1 0003 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-28010iYR2#198308-198402

main85332-28011iYR2#198402-198408

main85332-28020iYR2#198408-198508

main85332-28021iYR2#,3#198508-198808

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-17030iYR2#,3#198408-198808

sub85330-20410

main85310-20130iYR2#198308-198408

sub85310-12130

85330JAR ASSY, WINDSHIELD WASHER

main85330-28030iYR2#198308-198402

main85330-28031iYR2#198402-198408

main85331-28050iYR2#198408-198508

W/O RR WASHER

main85331-28051iYR2#,3#198508-198808

W/O RR WASHER

main85331-28060iYR2#198408-198508

W/RR WASHER

main85331-28061iYR2#,3#198508-198808

W/RR WASHER

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32103iYR2#,3#198308-198808

85333FILTER, WINDSHIELD WASHER JAR

main85333-28010iYR2#198308-198408

85333AFILTER, WINDSHIELD WASHER JAR, NO.2

main85333-20020iYR2#198308-198508

main85333-28020iYR2#,3#198508-198808

85345NOZZLE, WINDSHIELD WASHER

main85035-28020iYR2#198308-198408

RH

main85035-28030iYR2#198308-198408

LH

main85035-28040iYR2#,3#198408-198808

RH

main85035-28050iYR2#,3#198408-198808

LH

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-40010iYR2#,3#198308-198808

3-WAY

main85349-14010×2iYR2#198308-198408

2-WAY

sub85334-22470

main85349-14030iYR2#,3#198408-198808

2-WAY

sub85031-14080

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iYR2#198308-198408

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iYR2#,3#198404-198808

L=1000(*H,L=360)

main90099-33332iYR2#198308-198404

*H,L=650

sub90099-33334

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85343-87002iYR2#198408-198412

L=2300

main85343-87004iYR2#,3#198412-198808

(NO.2)

main85354-87001iYR2#,3#198412-198808

(NO.1)

main90099-33299×2iYR2#198308-198408

L=1450(*H,L=30)

main90099-33332iYR2#198308-198408

*H,L=450

sub90099-33334

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299iYR2#,3#198408-198808

L=1000(*H,L=360),LH,RH

main90446-06013iYR2#198308-198408

L=130,LH,RH

8534295J00HOLDER, WASHER NOZZLE

main85342-95J00

8536928010CLAMP

main85369-28010

8536928020CLAMP

main85369-28020

8537228010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-28010

9011906110

main90119-06110

9017906026

main90179-06026

9046400020

main90464-00020

19 parts on this diagram · 3 diagrams in section
