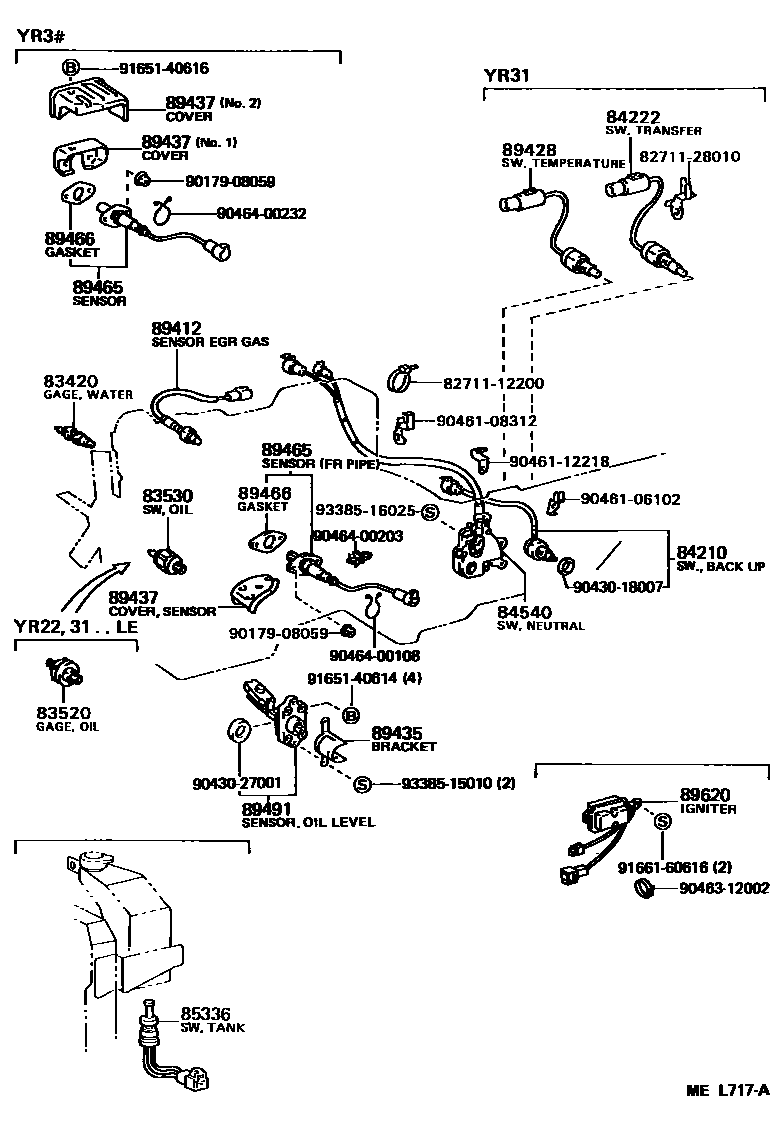

Toyota VAN — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iYR2#,3#198808-199001

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iYR22,31..LE198808-199001

sub83520-35030

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYR2#,3#..DLX,STD198808-199001

sub83530-28030

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iYR2#,3#..5F198808-199001

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-28010iYR3#198808-199001

84540SWITCH ASSY, NEUTRAL START

main84540-35010iYR2#,3#..4FC198808-199001

85336SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85335-73010iYR2#,3#198808-199001

89412SENSOR, E.G.R GAS TEMPERATURE

main89412-12010iYR22,31..USA198808-199001

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-28040iYR3#..4FC198808-199001

89435BRACKET, CONNECTOR COVER

main89435-28030iYR2#,3#198808-199001

89437COVER, SENSOR

main89437-28010iYR31..4FC198808-199001

SPEEDO SENSOR

main89437-28030iYR29198808-199001

FRONT PIPE

main89437-28040iYR3#198808-199001

FRONT PIPE,NO.1

main89437-28050iYR3#198808-199001

FRONT PIPE,NO.2

main89437-28060iYR29,3#198808-199001

TAIL PIPE

89465SENSOR, OXYGEN

main89465-29325iYR2#,3#198808-198908

FRONT PIPE

main89465-29326iYR2#,3#198908-199001

FRONT PIPE

main89465-29335iYR2#,3#198808-198908

TAIL PIPE

main89465-29336iYR2#,3#198908-199001

TAIL PIPE

89466GASKET, OXYGEN SENSOR

main89466-20020×2iYR2#,3#198810-199001

main89466-30010×2iYR2#,3#198808-198810

89491SENSOR, ENGINE OIL LEVEL

main89491-27020iYR2#,3#198808-199001

89620IGNITER ASSY

main89620-28040iYR2#,3#198808-199001

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271128010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-28010

9017908059

main90179-08059

9043018007

main90430-18007

9043027001

main90430-27001

9046106102

main90461-06102

9046108312

main90461-08312

9046112218

main90461-12218

9046312002

main90463-12002

9046400108

main90464-00108

9046400203

main90464-00203

9046400232

main90464-00232

9165140614

main91651-40614

9165140616

main91651-40616

9166160616

main91661-60616

9338515010

main93385-15010

9338516025

main93385-16025

32 parts on this diagram · 5 diagrams in section
