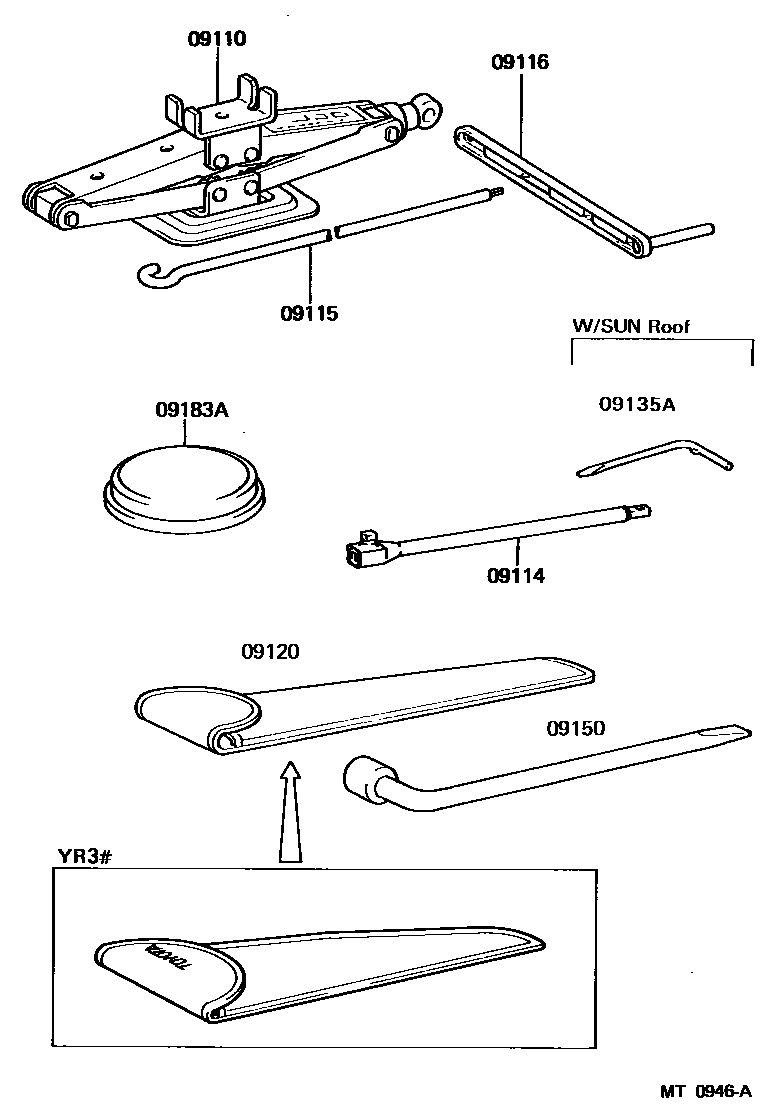

Toyota VAN — STANDARD TOOL

09110JACK ASSY

main09110-28070iYR2#,3#198808-199001

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60050iYR2#,3#198904-199001

sub09114-28010

09115ROD SUB-ASSY, JACK HANDLE

main09115-27040iYR2#,3#198808-198904

main09115-28030iYR2#,3#198904-199001

09116LEVER, JACK HANDLE

main09116-35041iYR2#,3#198808-199001

09120BAG, TOOL

main09120-12030iYR2#198808-198810

main09120-28020iYR3#198808-199001

main09120-32010iYR2#198810-199001

09135ABIT, SCREW DRIVER

main09135-00012iYR22..LE198808-199001

09150WRENCH, HUB NUT BOX

main09150-40010iYR2#,3#198808-199001

09183AREPLACER, WHEEL CAP

main09183-28010iYR3#198808-199001

sub09183-28020

8 parts on this diagram · 1 diagram in section
