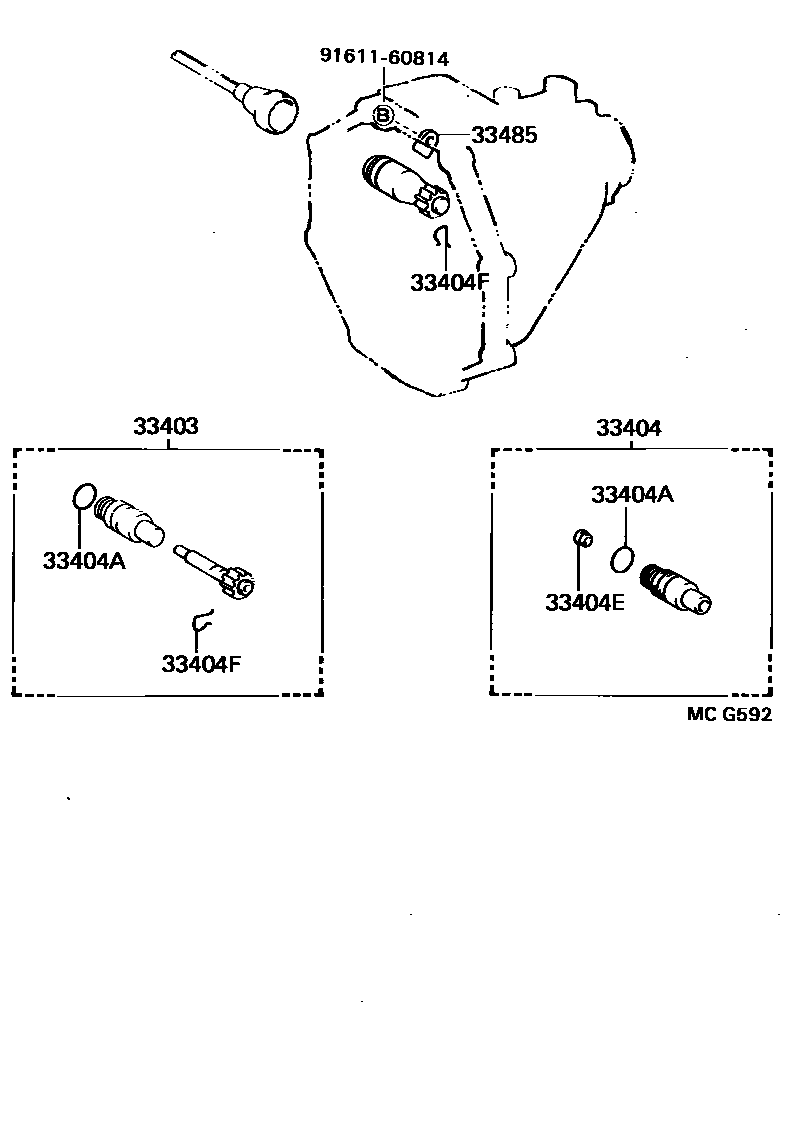

Toyota VAN — SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29065i198808-199001

N=20,MARK 20:6

main33482-39045i198808-199001

N=20,MARK 20:6

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010i198808-199001

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018i198808-199001

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001i198808-199001

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i198808-199001

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020i198808-199001

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota VAN

This section contains 7 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota VAN. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM), RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE), SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE).
