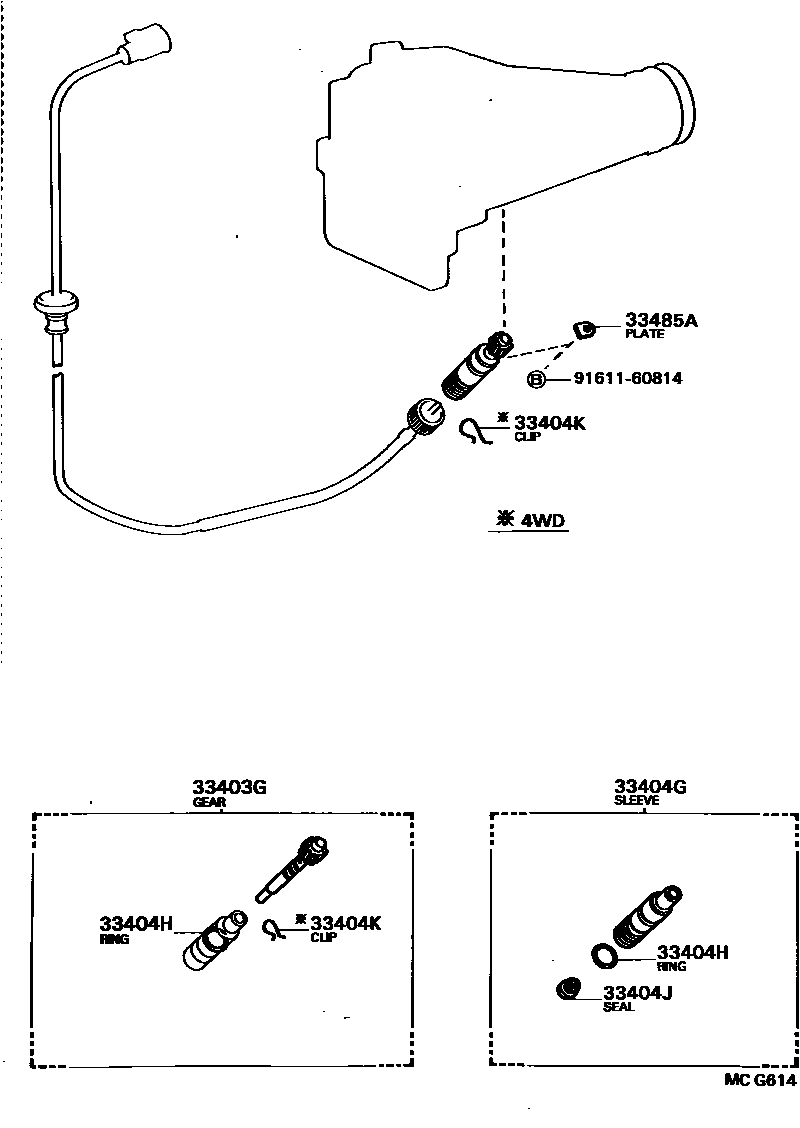

Toyota VAN — SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-29085i198808-199001

N=22,MARK 22:6

main33482-39315i198808-199001

N=21,MARK 21:6

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040i198808-199001

main33404-35010i198808-199001

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004i198808-199001

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001i198808-199001

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i198808-199001

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020i198808-199001

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (ATM) for Toyota VAN

This section contains 7 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (ATM) system of the Toyota VAN. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM), SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM), RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE), SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE), CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE).
