Toyota VAN — MIRROR

0001 1 0002 1

8121

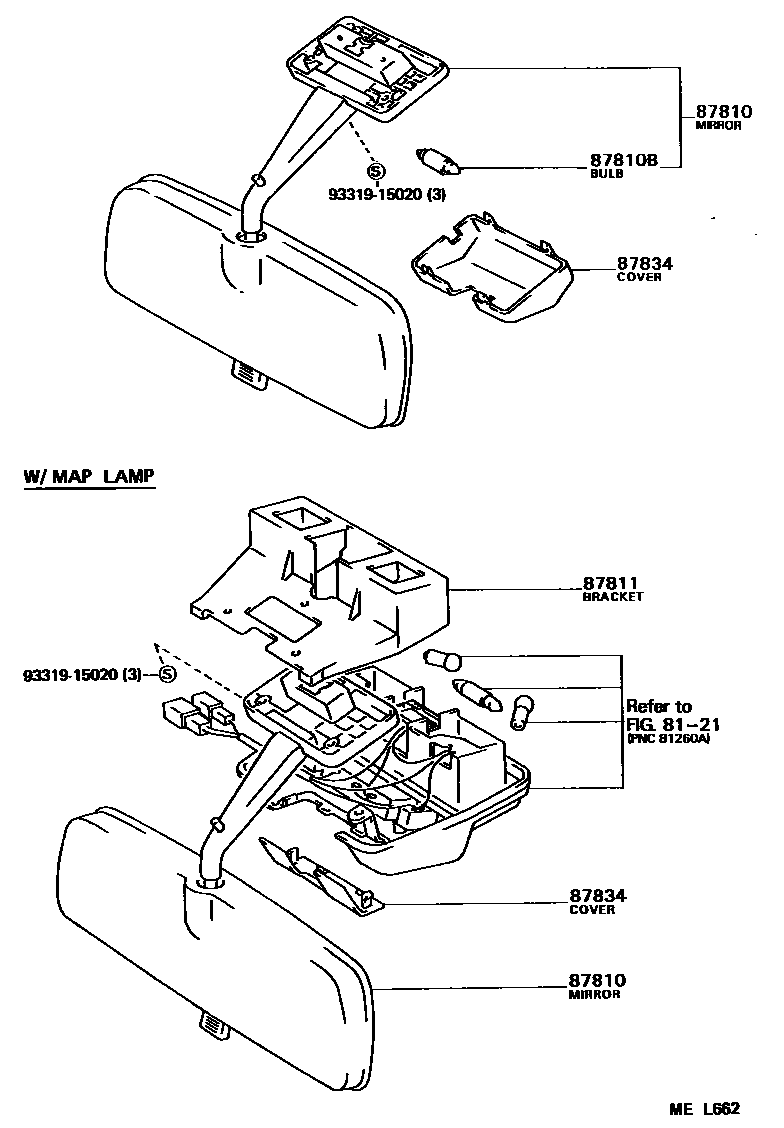

87810MIRROR ASSY, INNER REAR VIEW

main87801-28010-03iYR22,31..LE198808-199001

GRAY,TRIM1#

sub87801-87005

main87801-28010-04iYR22,31..LE198808-199001

BLUE,TRIM8#

sub87801-87005

main87801-28010-06iYR22,31..LE198808-199001

LIGHT BROWN,TRIM4#

sub87801-87005

main87801-28030-03iYR29,32198808-199001

GRAY,TRIM1#

sub87801-28050

main87801-28030-04iYR29,32198808-199001

BLUE,TRIM8#

sub87801-28050

main87801-28030-06iYR29,32198808-199001

BROWN,TRIM4#

sub87801-28050

main87801-87014-04iYR29,32..USA198808-199001

BLUE,TRIM8#

sub87801-28020

main87801-87014-06iYR29,32..USA198808-199001

LIGHT BROWN,TRIM4#

sub87801-28020

main87801-87014-13iYR29,32..USA198808-199001

GRAY,TRIM1#

sub87801-28020

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-12100iYR2#,3#..DLX,STD198808-199001

12V 10W

87811BRACKET, INNER RR VIEW MIRROR

main87811-87001iYR22,31..LE198808-199001

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81241-87001iYR2#,3#..DLX,STD198808-199001

main87834-87003-03iYR22,31..LE198808-199001

GRAY,TRIM1#

main87834-87003-04iYR22,31..LE198808-199001

BLUE,TRIM8#

main87834-87003-06iYR22,31..LE198808-199001

LIGHT BROWN,TRIM4#

9331915020

main93319-15020

6 parts on this diagram · 2 diagrams in section
