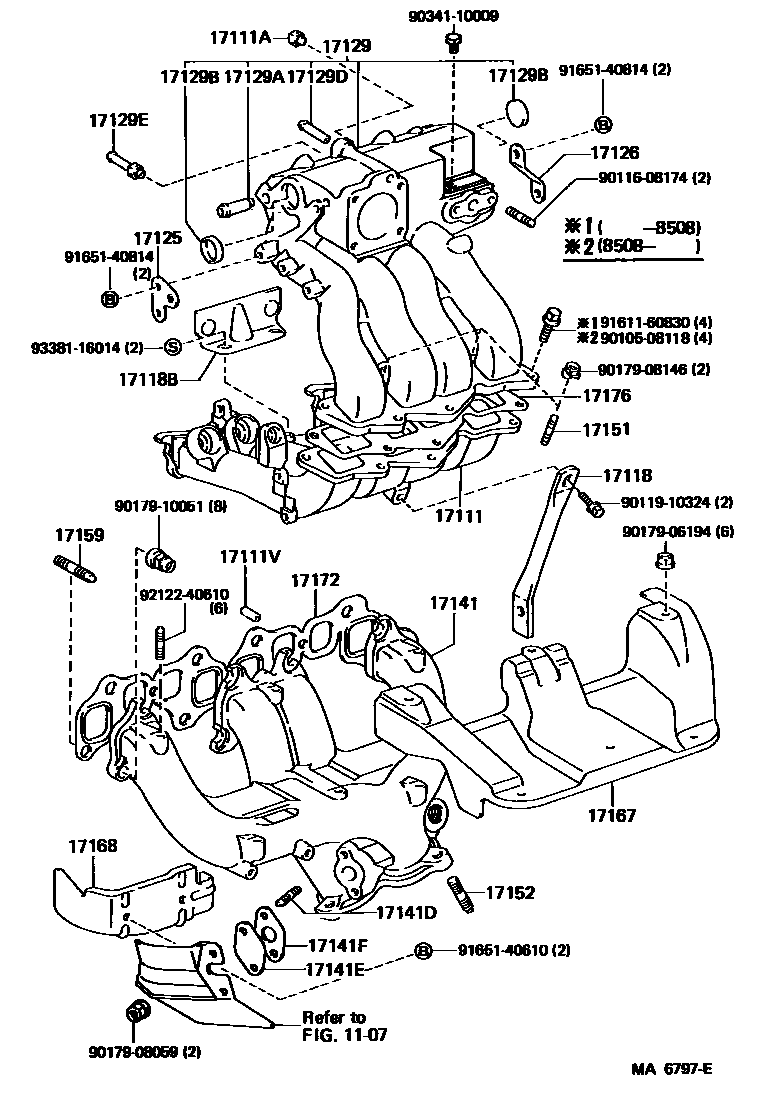

Toyota VAN — MANIFOLD
1107MOUNTING
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17111VPIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
17118STAY, MANIFOLD
17118BINSULATOR, INTAKE MANIFOLD
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17129TANK, INTAKE AIR SURGE
17129AUNION, NO.1
17129BPLUG
17129DUNION, NO.2
17129EUNION, NO.3
17141MANIFOLD, EXHAUST
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17141EPLATE, EXHAUST MANIFOLD
17141FGASKET(FOR EXHAUST MANIFOLD PLATE)
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17172GASKET, MANIFOLD TO CYLINDER HEAD
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
9010508118
main90105-08118
9011608174
main90116-08174
9011910324
main90119-10324
9017906194
main90179-06194
9017908059
main90179-08059
9017908146
main90179-08146
9017910051
main90179-10051
9034110009
main90341-10009
9161160830
main91611-60830
9165140610
main91651-40610
9165140814
main91651-40814
9212240610
main92122-40610
9338116014
main93381-16014
37 parts on this diagram · 1 diagram in section
MANIFOLD for Toyota VAN
This section contains 37 genuine Toyota parts for the MANIFOLD system of the Toyota VAN. Key components include: MOUNTING, MANIFOLD, INTAKE, PLUG, NO.1, PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING), STAY, MANIFOLD.
