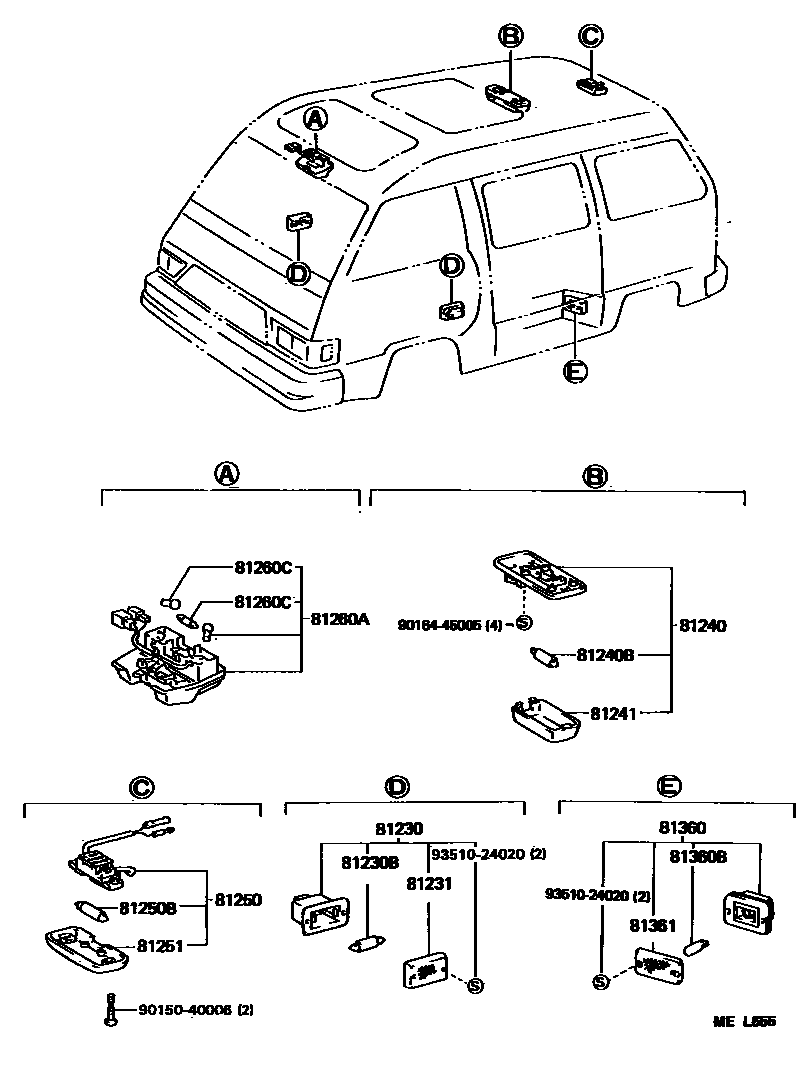

Toyota VAN — INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
GRAY,TRIM1#
DEEP BLUE,TRIM8#
LIGHT BROWN,TRIM4#
W(TWIN SUN ROOF),GRAY,TRIM1#
DARK BLUE,TRIM8#
W(TWIN SUN ROOF),LIGHT BROWN,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
12V 10W
81251LENS, ROOM LAMP, NO.2
81260ALAMP ASSY, MAP
GRAY,TRIM1#
BLUE,TRIM8#
LIGHT BROWN,TRIM4#
81260CBULB(FOR MAP LAMP)
12V 8W
12V 10W
81360LAMP ASSY, STEP OR SPOT
81360BBULB, STEP OR SPOT LAMP
12V 5W
81361LENS, STEP LAMP
9015040006
main90150-40006
9016445005
main90164-45005
9351024020
main93510-24020
17 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota VAN
This section contains 17 genuine Toyota parts for the INTERIOR LAMP system of the Toyota VAN. Key components include: LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1.
