Toyota VAN — FRONT DOOR PANEL & GLASS

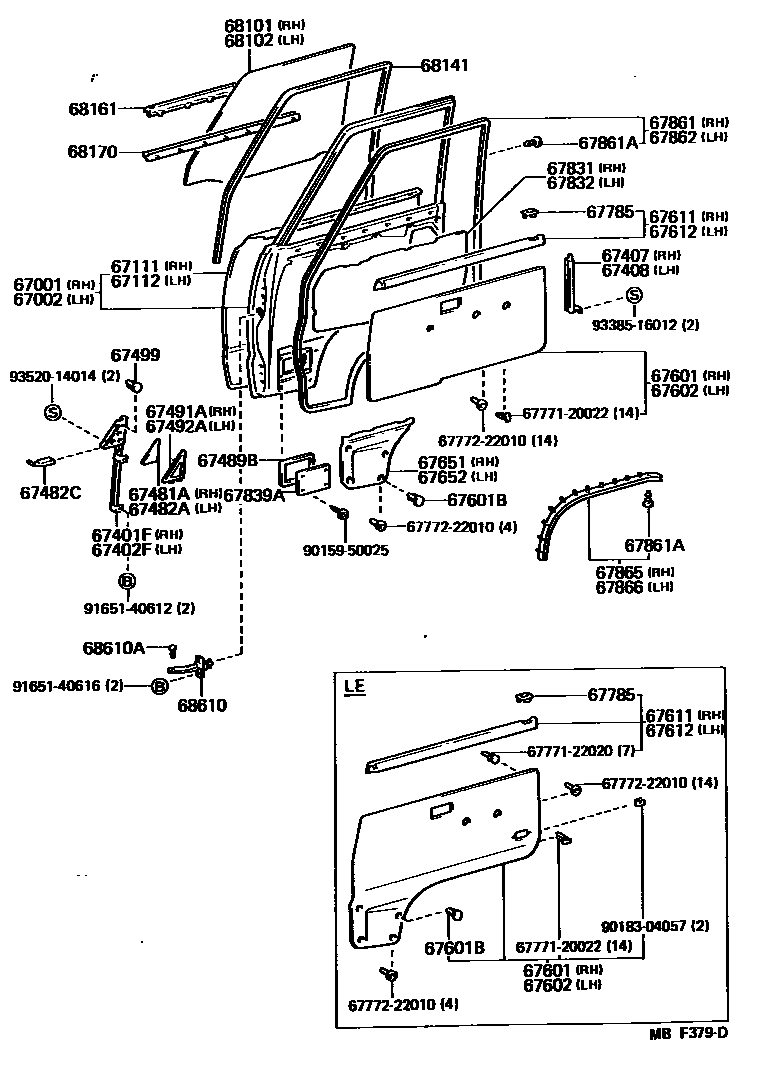

Parts diagram
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-28010i198308-198408
main67001-28020i198311-198808
main67001-28030i198408-198808
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-28010i198308-198408
main67002-28020i198311-198808
main67002-28030i198408-198808
67111PANEL, FRONT DOOR, OUTER RH
main67111-87004i198308-198808
main67111-87006i198508-198808
W/SIDE MOULDING
67112PANEL, FRONT DOOR, OUTER LH
main67112-87003i198308-198808
main67112-87004i198508-198808
W/SIDE MOULDING
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
main67401-87001i198308-198511
main67401-87003i198511-198808
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
main67402-87002i198308-198808
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
main67403-28010i198604-198808
main67403-87001i198308-198604
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
main67404-28010i198604-198808
main67404-87001i198308-198604
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
main67481-16130i198308-198808
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
main67481-16130i198308-198808
67482CPACKING, FRONT DOOR FRONT LOWER FRAME
main67482-28010i198308-198808
67489BPACKING, FRONT DOOR LOWER COVER
main67489-87001i198308-198808
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-87001i198308-198808
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-87001i198308-198808
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-30010i198308-198808
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-28030-03i198308-198408
GRAY,GRAY,TRIM1#
main67610-28030-05i198308-198408
BEIGE,BEIGE,TRIM4#
main67610-28031-03i198408-198508
GRAY,GRAY,TRIM1#
main67610-28031-05i198408-198508
BEIGE,BEIGE,TRIM4#
main67610-28040-03i198308-198408
W/*PW,GRAY,GRAY,TRIM1#
main67610-28040-05i198308-198408
W/*PW,BEIGE,BEIGE,TRIM4#
main67610-28041-03i198408-198508
W/*PW,GRAY,GRAY,TRIM1#
main67610-28041-05i198408-198508
W/*PW,BEIGE,BEIGE,TRIM4#
main67610-28061-05i198408-198508
W/*PW,BEIGE,BEIGE,TRIM4#
main67610-28062-03i198603-198808
W/*PW,GRAY,SHADOW GRAY,TRIM1#,4#
main67610-28062-05i198508-198808
W/*PW,BEIGE,BEIGE,TRIM4#
main67610-28070-05i198408-198508
BEIGE,BEIGE,TRIM4#
main67610-28071-03i198603-198808
GRAY,SHADOW GRAY,TRIM1#,4#
main67610-28071-05i198508-198808
BEIGE,BEIGE,TRIM4#
main67610-28080i198402-198408
W/*PW,BEIGE
main67610-28090-04i198508-198608
W/*PW,BLUE,BLUE,TRIM8#
main67610-28090-06i198508-198608
W/*PW,BROWN,BROWN,TRIM4#
main67610-28091-03i198608-198708
W/*PW,GRAY,SHADOW GRAY,TRIM1#
main67610-28091-06i198608-198708
W/*PW,BROWN,BROWN,TRIM4#
main67610-28092-03i198708-198808
W/*PW,GRAY,GRAY,TRIM1#
main67610-28092-06i198708-198808
W/*PW,BROWN,BROWN,TRIM4#
main67610-28100-05i198508-198608
BEIGE,BEIGE,TRIM4#
main67610-28101-06i198608-198708
BROWN,BROWN,TRIM4#
main67610-28102-03i198708-198808
GRAY,GRAY,TRIM1#
main67610-28102-06i198708-198808
BROWN,BROWN,TRIM4#
main67610-87024i198308-198408
BEIGE
main67610-87042-03i198608-198708
GRAY,SHADOW GRAY,TRIM1#
main67610-87042-06i198608-198708
BROWN,BROWN,TRIM4#
main67610-87053-04i198508-198608
BLUE,BLUE,TRIM8#
main67610-87053-06i198508-198608
BROWN,BROWN,TRIM4#
main67610-87060-03i198708-198808
GRAY,GRAY,TRIM1#
main67610-87060-06i198708-198808
BROWN,BROWN,TRIM4#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-10017-02i198408-198508
WINE,WINE,TRIM4#
main90467-10017-03i198308-198408
GRAY,GRAY,TRIM1#
main90467-10017-05i198308-198408
BEIGE,BEIGE,TRIM4#
main90467-10017-14i198408-198508
BLUE,BLUE,TRIM1#
main90467-10017-24i198508-198608
BLUE,BLUE,TRIM8#
main90467-10017-36i198508-198808
BROWN,BROWN,TRIM4#
main90467-10017-43i198608-198808
GRAY,SHADOW GRAY,TRIM1#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-28030-03i198308-198408
GRAY,GRAY,TRIM1#
main67620-28030-05i198308-198408
BEIGE,BEIGE,TRIM4#
main67620-28031-03i198408-198508
GRAY,GRAY,TRIM1#
main67620-28031-05i198408-198508
BEIGE,BEIGE,TRIM4#
main67620-28040-03i198308-198408
W/*PW,GRAY,GRAY,TRIM1#
main67620-28040-05i198308-198408
W/*PW,BEIGE,BEIGE,TRIM4#
main67620-28041-03i198408-198508
W/*PW,GRAY,GRAY,TRIM1#
main67620-28041-05i198408-198508
W/*PW,BEIGE,BEIGE,TRIM4#
main67620-28061-05i198408-198508
W/*PW,BEIGE,BEIGE,TRIM4#
main67620-28062-03i198603-198808
W/*PW,GRAY,SHADOW GRAY,TRIM1#
main67620-28062-05i198508-198808
W/*PW,BEIGE,BEIGE,TRIM4#
main67620-28070-05i198408-198508
BEIGE,BEIGE,TRIM4#
main67620-28071-03i198603-198808
GRAY,SHADOW GRAY,TRIM1#
main67620-28071-05i198508-198808
BEIGE,BEIGE,TRIM4#
main67620-28080i198402-198408
W/*PW,BEIGE
main67620-28090-04i198508-198608
W/*PW,BLUE,BLUE,TRIM8#
main67620-28090-06i198508-198608
W/*PW,BROWN,BROWN,TRIM4#
main67620-28091-03i198608-198701
W/*PW,GRAY,SHADOW GRAY,TRIM1#
main67620-28091-06i198608-198701
W/*PW,BROWN,BROWN,TRIM4#
main67620-28092-03i198701-198708
W/*PW,GRAY,SHADOW GRAY,TRIM1#
main67620-28092-06i198701-198708
W/*PW,BROWN,BROWN,TRIM4#
main67620-28093-03i198708-198808
W/*PW,GRAY,GRAY,TRIM1#
main67620-28093-06i198708-198808
W/*PW,BROWN,BROWN,TRIM4#
main67620-28100-05i198508-198608
BEIGE,BEIGE,TRIM4#
main67620-28101-06i198608-198708
BROWN,BROWN,TRIM4#
main67620-28102-03i198708-198808
GRAY,GRAY,TRIM1#
main67620-28102-06i198708-198808
BROWN,BROWN,TRIM4#
main67620-87008i198308-198408
BEIGE
main67620-87026-03i198608-198701
GRAY,SHADOW GRAY,TRIM1#
main67620-87026-06i198608-198701
BROWN,BROWN,TRIM4#
main67620-87041-04i198508-198608
BLUE,BLUE,TRIM8#
main67620-87041-06i198508-198608
BROWN,BROWN,TRIM4#
main67620-87048-03i198701-198708
GRAY,GRAY,TRIM1#
main67620-87048-06i198701-198708
BROWN,BROWN,TRIM4#
main67620-87052-03i198708-198808
GRAY,GRAY,TRIM1#
main67620-87052-06i198708-198808
BROWN,BROWN,TRIM4#
67611BOARD, FRONT DOOR TRIM, UPPER RH
main67601-87001-02i198308-198408
WINE,RED/MAROON,TRIM4#
main67601-87001-03i198408-198508
GRAY,GRAY,TRIM1#
main67601-87001-04i198308-198408
BLUE,BLUE,TRIM1#
main67601-87001-05i198408-198508
BEIGE,BEIGE,TRIM4#
main67623-87002-05i198308-198408
BEIGE,BEIGE,TRIM4#
main67623-87002-15i198408-198508
BEIGE,BEIGE,TRIM4#
67612BOARD, FRONT DOOR TRIM, UPPER LH
main67602-87001-02i198308-198408
WINE,RED/MAROON,TRIM4#
main67602-87001-03i198408-198508
GRAY,GRAY,TRIM1#
main67602-87001-04i198308-198408
BLUE,BLUE,TRIM4#
main67602-87001-05i198408-198508
BEIGE,BEIGE,TRIM4#
main67624-87002-05i198308-198408
BEIGE,BEIGE,TRIM4#
main67624-87002-15i198408-198508
BEIGE,BEIGE,TRIM4#
67651BOARD, FRONT DOOR TRIM, LOWER RH
main67060-87002-02i198408-198508
WINE,WINE,TRIM4#
main67060-87002-04i198408-198508
BLUE,BLUE,TRIM1#
main67060-87002-06i198508-198808
BROWN,BROWN,TRIM4#
main67060-87002-13i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main67060-87002-14i198508-198608
BLUE,BLUE,TRIM8#
main67763-87001i198308-198408
BEIGE
main67763-87005-02i198408-198508
WINE,WINE,TRIM4#
main67763-87005-03i198708-198808
GRAY,GRAY,TRIM1#
main67763-87005-06i198508-198808
BROWN,BROWN,TRIM4#
67652BOARD, FRONT DOOR TRIM, LOWER LH
main67070-87002-02i198408-198508
WINE,WINE,TRIM4#
main67070-87002-04i198408-198508
BLUE,BLUE,TRIM1#
main67070-87002-06i198508-198808
BROWN,BROWN,TRIM4#
main67070-87002-13i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main67070-87002-14i198508-198608
BLUE,BLUE,TRIM8#
main67764-87001i198308-198408
BEIGE
main67764-87005-02i198408-198508
WINE,WINE,TRIM4#
main67764-87005-03i198708-198808
GRAY,GRAY,TRIM1#
main67764-87005-06i198508-198808
BROWN,BROWN,TRIM4#
67785HOLDER, FRONT DOOR LOCKING BUTTON COLLAR
main69751-20031i198311-198808
main69751-20040i198308-198508
main69751-20060-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main69751-20060-05i198508-198808
BEIGE,BEIGE,TRIM4#
main69751-20060-24i198508-198608
BLUE,BLUE,TRIM8#
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67801-28010i198308-198808
main67801-28020i198508-198808
W/*PW
main67831-87002i198308-198808
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67802-28010i198308-198508
main67802-28020i198508-198602
main67802-28030i198602-198808
main67802-28030i198508-198808
W/*PW
main67831-87002i198308-198808
67839ACOVER, FRONT DOOR SERVICE HOLE, LOWER
main67839-87001i198308-198808
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-87003i198308-198808
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
main67868-30040i198308-198808
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-87003i198308-198808
67865WEATHERSTRIP, FRONT DOOR, LOWER RH
main67863-87001i198308-198808
67866WEATHERSTRIP, FRONT DOOR LOWER, LH
main67864-87001i198308-198808
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68111-87002i198308-198808
*TEM,T=4.0,*TEM,T=4.0
main68111-87004i198308-198808
*TT,T=4.0,*TT,T=4.0
main68111-87005i198308-198808
*TT,T=4.0,BRONZE,BRONZE,*TT,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68112-87002i198308-198808
*TEM,T=4.0,*TEM,T=4.0
main68112-87003i198308-198808
*TT,T=4.0,*TT,T=4.0
main68112-87004i198308-198808
*TT,T=4.0,BRONZE,BRONZE,*TT,T=4.0
68141RUN, FRONT DOOR GLASS
main68141-87001i198308-198407
main68141-87006i198407-198808
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
main68160-87001i198308-198808
main68160-87002i198308-198808
RH
main68210-87001i198308-198808
LH
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68170-87007i198508-198808
RH
main68171-87005i198308-198808
main68220-87005i198508-198808
LH
68610CHECK ASSY, FRONT DOOR
main68610-12030i198308-198808
68610APIN(FOR FRONT DOOR CHECK)
main68617-12010i198411-198507
main68617-22010i198308-198411
main68617-90A00i198507-198808
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777122020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-22020
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9015950025
main90159-50025
9018304057
main90183-04057
9165140612
main91651-40612
9165140616
main91651-40616
9338516012
main93385-16012
9352014014
main93520-14014

47 parts on this diagram · 4 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota VAN

This section contains 59 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota VAN. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH.
