Toyota VAN — FRONT DOOR LOCK & HANDLE

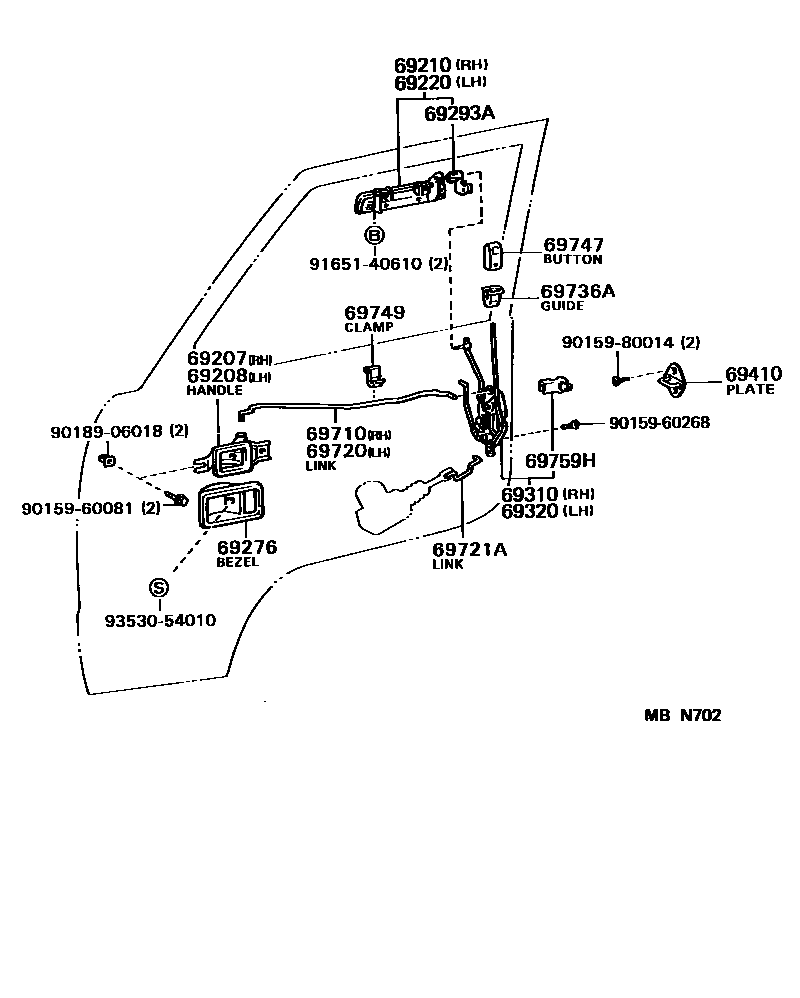

Parts diagram
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-12070-02i198408-198508
WINE,RED/MAROON,TRIM4#
main69205-12070-03i198708-198808
GRAY,GRAY,TRIM1#
main69205-12070-04i198408-198508
BLUE,BLUE,TRIM1#
main69205-12070-26i198508-198808
BROWN,BROWN,TRIM4#
main69205-12070-36i198508-198808
BROWN,BROWN,TRIM4#
main69205-12070-44i198603-198608
BLUE,BLUE,TRIM8#
main69205-32010-05i198308-198408
BEIGE,BEIGE,TRIM4#
main69205-32010-23i198308-198408
GRAY,GRAY,TRIM1#
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-12070-02i198408-198508
WINE,RED/MAROON,TRIM4#
sub69206-16040
main69206-12070-03i198603-198608
GRAY,GRAY,TRIM4#
sub69206-16040
main69206-12070-04i198408-198508
BLUE,BLUE,TRIM1#
sub69206-16040
main69206-12070-26i198508-198808
BROWN,BROWN,TRIM4#
sub69206-16040
main69206-12070-36i198508-198808
BROWN,BROWN,TRIM4#
sub69206-16040
main69206-12070-44i198603-198608
BLUE,BLUE,TRIM8#
sub69206-16040
main69206-32010-05i198308-198408
BEIGE,BEIGE,TRIM4#
main69206-32010-23i198308-198408
GRAY,GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-28010i198308-198808
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-28010i198308-198808
69276BEZEL, FRONT DOOR INSIDE HANDLE
main69277-32020-05×2i198308-198311
BEIGE,BEIGE,TRIM4#
main69277-32020-23×2i198308-198311
GRAY,GRAY,TRIM1#
main69277-89104-02×2i198408-198508
WINE,WINE,TRIM4#
main69277-89104-05×2i198311-198408
BEIGE,BEIGE,TRIM4#
main69277-89104-13×2i198311-198408
GRAY,GRAY,TRIM1#
main69277-89104-14×2i198408-198508
BLUE,BLUE,TRIM1#
main69277-89104-23×2i198708-198808
GRAY,SHADOW GRAY,TRIM1#
main69277-89104-24×2i198508-198603
BLUE,BLUE,TRIM4#,8#
main69277-89104-26×2i198508-198808
BROWN,BROWN,TRIM4#
main69277-89104-46×2i198508-198808
BROWN,BROWN,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-28010i198709-198808
RH
main69293-28020i198709-198808
LH
69310LOCK ASSY, FRONT DOOR, RH
main69310-28010i198308-198408
main69310-28011i198408-198708
main69310-28012i198708-198808
main69310-28020i198308-198408
main69310-28021i198408-198708
W/*EL
main69310-28022i198708-198808
69320LOCK ASSY, FRONT DOOR, LH
main69320-28010i198308-198408
main69320-28011i198408-198708
main69320-28012i198708-198808
main69320-28020i198402-198408
W/*EL
main69320-28021i198408-198708
W/*EL
main69320-28022i198708-198808
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-87001i198308-198808
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
main69711-87001i198308-198408
main69711-87002i198408-198808
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
main69712-87001i198308-198408
main69712-87002i198408-198808
69721ALINK, FRONT DOOR LOCK ACTUATOR
main69721-87001i198308-198408
RH
main69721-87002i198408-198808
RH
main69722-87001i198402-198408
LH,W/*EL
main69722-87002i198408-198808
LH,W/*EL
69736AGUIDE, FRONT DOOR LOCK LINK
main69736-12030×2i198408-198808
main69736-22021×2i198308-198408
69747BUTTON, DOOR LOCKING
main69741-32010-01×2i198308-198808
BLACK,BLACK,TRIM1#,4#
sub69741-90K00
main69741-87003-03×2i198608-198708
GRAY,GRAY,TRIM1#
main69741-87003-04×2i198508-198608
BLUE,BLUE,TRIM8#
main69741-87003-06×2i198508-198808
BROWN,BROWN,TRIM4#
69749CLAMP, FRONT DOOR LOCK LINK
main69749-20010×2i198408-198808
main69749-30020×2i198308-198408
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
main69759-20040i198508-198808
LH
main69759-20050i198508-198808
RH
9015960081
main90159-60081
9015960268
main90159-60268
9015980014
main90159-80014
9018906018
main90189-06018
9165140610
main91651-40610
9353054010
main93530-54010

22 parts on this diagram · 1 diagram in section
