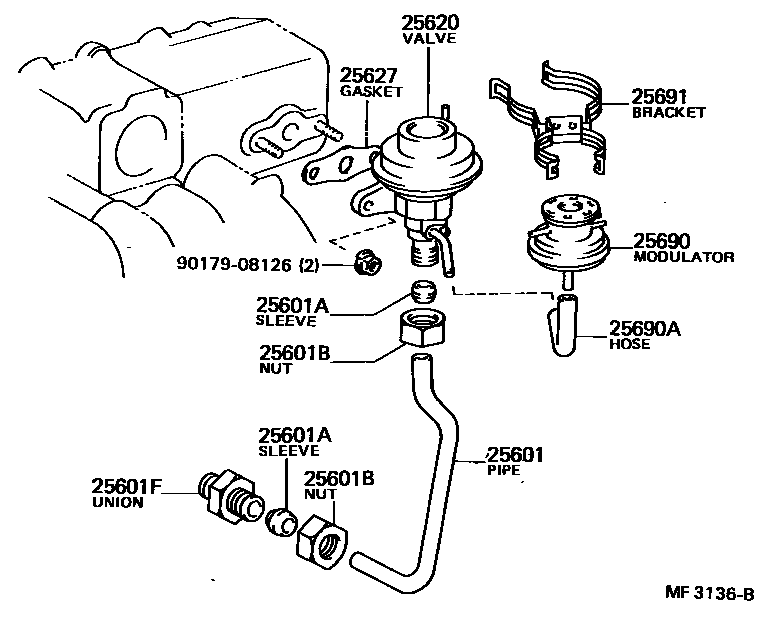

Toyota VAN — EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25601FUNION(FOR EGR PIPE, NO.1)
25627GASKET, EGR VALVE
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
25691BRACKET, EGR VACUUM MODULATOR
9017908126
main90179-08126
10 parts on this diagram · 1 diagram in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota VAN
This section contains 10 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota VAN. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, UNION(FOR EGR PIPE, NO.1), VALVE ASSY, EGR.
