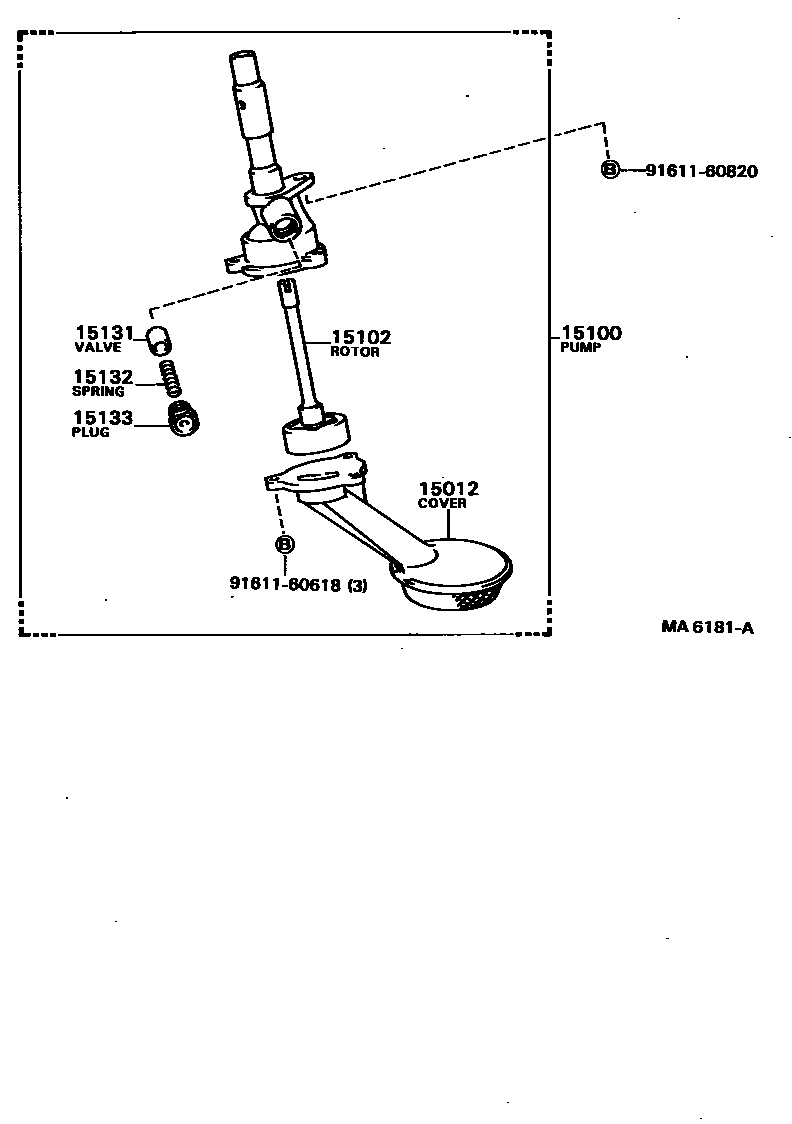

Toyota VAN — ENGINE OIL PUMP

15012COVER SUB-ASSY, OIL PUMP

main15012-71010i198808-199001

15100PUMP ASSY, OIL

main15100-71010i198808-199001

15102ROTOR SET, OIL PUMP

main15102-71010i198808-199001

15131VALVE, OIL PUMP RELIEF

main15131-24010i198808-199001

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i198808-199001

15133PLUG, OIL PUMP RELIEF VALVE

main15133-24010i198808-199001

9161160618

main91611-60618

9161160820

main91611-60820

8 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota VAN

This section contains 8 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota VAN. Key components include: COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, ROTOR SET, OIL PUMP, VALVE, OIL PUMP RELIEF, SPRING, OIL PUMP RELIEF VALVE.
