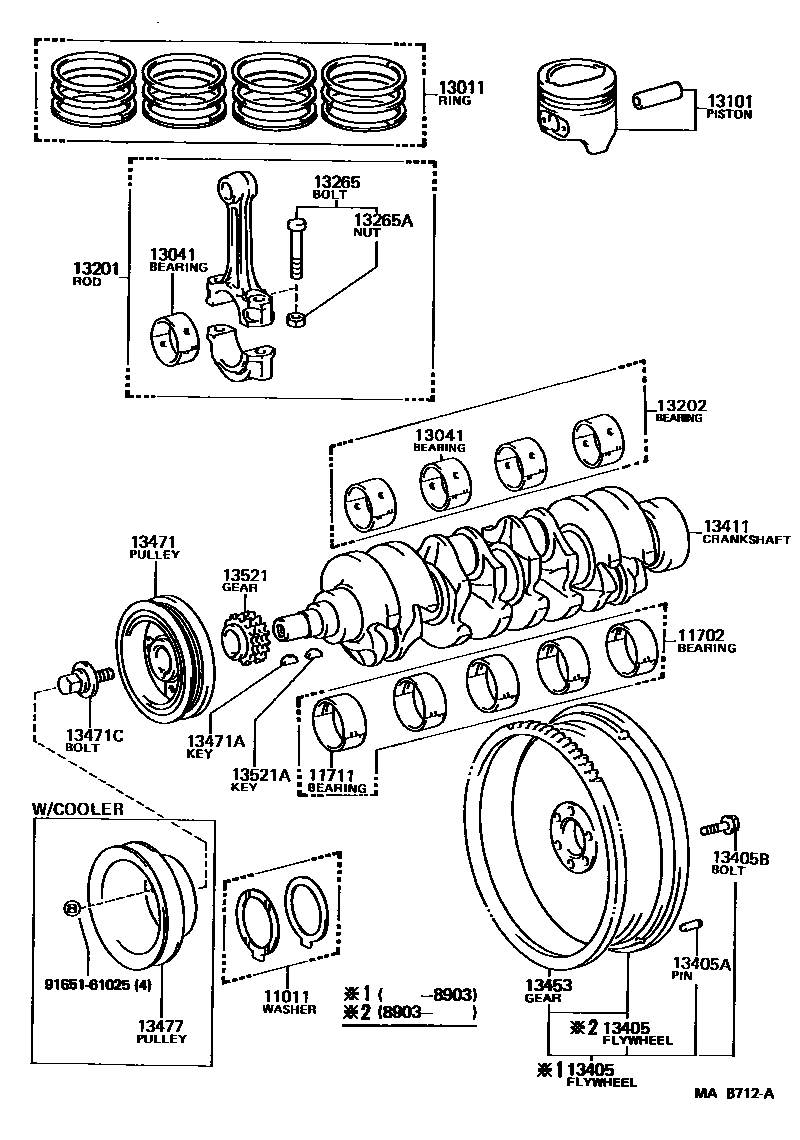

Toyota VAN — CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-25010i4YEC..YR2#,3#198808-199001

STD

11702BEARING SET, CRANKSHAFT

main11704-71020i4YEC..YR2#,3#198808-199001

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-71020-01×5i4YEC..YR2#,3#198808-199001

MARK 1

main11701-71020-02×5i4YEC..YR2#,3#198808-199001

MARK 2

main11701-71020-03×5i4YEC..YR2#,3#198808-199001

MARK 3

13011RING SET, PISTON

main13011-73021i4YEC..YR2#,3#198808-199001

STD

sub13011-73011

main13013-73021i4YEC..YR2#,3#198808-199001

O/S 0.50

sub13013-73032

13041BEARING, CONNECTING ROD

main13041-71011-06×4i4YEC..YR2#,3#198808-199001

MARK 6

sub13041-73010

main13041-71011-07×4i4YEC..YR2#,3#198808-199001

MARK 7

sub13041-73010

main13041-71011-08×4i4YEC..YR2#,3#198808-199001

MARK 8

sub13041-73010

13101PISTON SUB-ASSY, W/PIN

main13101-73031-01×4i4YEC..YR2#,3#198808-199001

STD,MARK 1

main13101-73031-02×4i4YEC..YR2#,3#198808-199001

STD,MARK 2

main13101-73031-03×4i4YEC..YR2#,3#198808-199001

STD,MARK 3

main13103-73031×4i4YEC..YR2#,3#198808-199001

O/S 0.50

13201ROD SUB-ASSY, CONNECTING

main13201-79045×4i4YEC..YR2#,3#198808-199001

sub13201-79046

13202BEARING SET, CONNECTING ROD

main13204-71011i4YEC..YR2#,3#198808-199001

U/S 0.25

sub13204-73010

13265BOLT, CONNECTING ROD

main13265-29025×8i4YEC..YR2#,3#198808-199001

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001×8i4YEC..YR2#,3#198808-199001

13405FLYWHEEL SUB-ASSY

main13405-72011i4YEC..YR2#,3#..5F198903-199001

main13405-79045i4YEC..YR2#,3#..5F198808-198903

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i4YEC..YR2#,3#..5F198808-199001

L=23,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-10042×6i4YEC..YR2#,3#..5F198808-199001

13411CRANKSHAFT

main13411-73010i4YEC..YR2#,3#198808-199001

sub13411-73900

13453GEAR, FLYWHEEL RING

main13453-20010i4YEC..YR2#,3#..5F198808-199001

13471PULLEY, CRANKSHAFT

main13408-73010i4YEC..YR2#,3#198808-199001

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05010i4YEC..YR2#,3#198808-199001

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-14013i4YEC..YR2#,3#198808-198901

main90105-14069i4YEC..YR2#,3#198901-199001

13477PULLEY, CRANKSHAFT, NO.2

main88451-28010i4YEC..YR22..USA198808-199001

W(AIR CONDITIONER)

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-33010i4YEC..YR2#,3#198808-199001

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i4YEC..YR2#,3#198808-199001

9165161025

main91651-61025

22 parts on this diagram · 1 diagram in section
