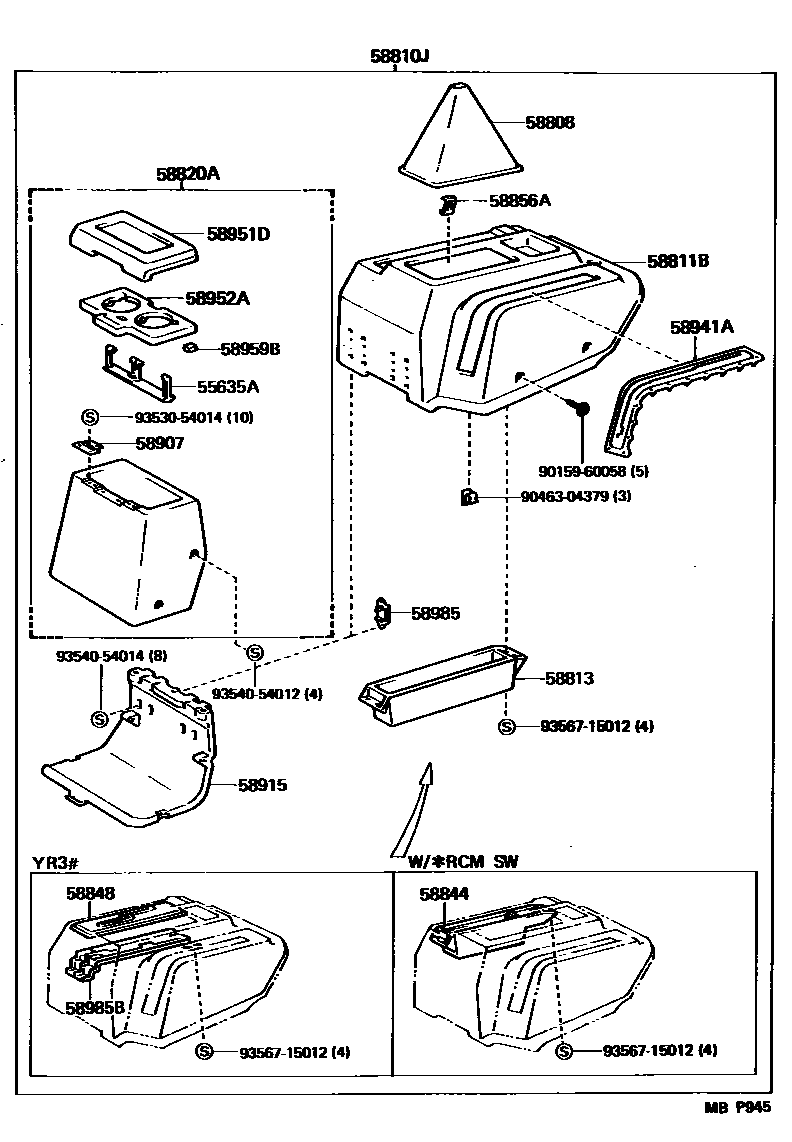

Toyota VAN — CONSOLE BOX & BRACKET

55635ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2

main55635-28010iYR22,31..LE198808-199001

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-87002-03iYR2#,3#..5F198808-199001

SHADOW GRAY,TRIM1#

main58808-87002-04iYR2#,3#..5F198808-199001

BLUE,TRIM8#

main58808-87002-16iYR2#,3#..5F198808-199001

BROWN,TRIM4#

58810JBOX ASSY, CONSOLE

main58810-28051-03iYR22..5F..LE198808-198811

SHADOW GRAY,TRIM1#

main58810-28051-04iYR22..5F..LE198808-198811

W(ICE COOL BOX),BLUE,TRIM8#

main58810-28051-16iYR22..5F..LE198808-198811

SABLE,TRIM4#

main58810-28052-03iYR22..5F..LE198811-199001

SHADOW GRAY,TRIM1#

main58810-28052-04iYR22..5F..LE198811-199001

W(ICE COOL BOX),BLUE,TRIM8#

main58810-28052-06iYR22..5F..LE198811-199001

SABLE,TRIM4#

main58810-28061-03iYR22,31..4FC..LE198808-198811

SHADOW GRAY,TRIM1#

main58810-28061-04iYR22,31..4FC..LE198808-198811

W(ICE COOL BOX),BLUE,TRIM8#

main58810-28061-16iYR22,31..4FC..LE198808-198811

SABLE,TRIM4#

main58810-28062-03iYR22,31..4FC..LE198811-199001

SHADOW GRAY,TRIM1#

main58810-28062-04iYR22,31..4FC..LE198811-199001

W(ICE COOL BOX),BLUE,TRIM8#

main58810-28062-06iYR22,31..4FC..LE198811-199001

SABLE,TRIM4#

main58810-28071-03iYR22..5F..LE198808-198811

SHADOW GRAY,TRIM1#

main58810-28071-04iYR22..5F..LE198808-198811

BLUE,TRIM8#

main58810-28071-16iYR22..5F..LE198808-198811

SABLE,TRIM4#

main58810-28072-03iYR22..5F..LE198811-199001

SHADOW GRAY,TRIM1#

main58810-28072-04iYR22..5F..LE198811-199001

BLUE,TRIM8#

main58810-28072-06iYR22..5F..LE198811-199001

SABLE,TRIM4#

main58810-28081-03iYR22,31..4FC..LE198808-198811

SHADOW GRAY,TRIM1#

main58810-28081-04iYR22,31..4FC..LE198808-198811

BLUE,TRIM8#

main58810-28081-16iYR22,31..4FC..LE198808-198811

SABLE,TRIM4#

main58810-28082-03iYR22,31..4FC..LE198811-199001

SHADOW GRAY,TRIM1#

main58810-28082-04iYR22,31..4FC..LE198811-199001

BLUE,TRIM8#

main58810-28082-06iYR22,31..4FC..LE198811-199001

SABLE,TRIM4#

main58810-28090-03iYR22,31..4FC..LE198808-198811

W(5 SPEAKER & ICE COOL BOX),SHADOW GRAY,TRIM1#

main58810-28090-04iYR22,31..4FC..LE198808-198810

W(5 SPEAKER & ICE COOL BOX),BLUE,TRIM8#

main58810-28090-16iYR22,31..4FC..LE198808-198810

W(5 SPEAKER & ICE COOL BOX),SABLE,TRIM4#

main58810-28091-03iYR22,31..4FC..LE198811-198906

W(5-SPEAKER & ICE COOL BOX),SHADOW GRAY,SHADOW GRAY,TRIM1#

main58810-28091-04iYR22,31..4FC..LE198811-198906

W(5-SPEAKER & ICE COOL BOX),BLUE,BLUE,TRIM8#

main58810-28091-06iYR22,31..4FC..LE..USA198906-199001

W(5-SPEAKER & ICE COOL BOX),SABLE,SABLE,TRIM4#

main58810-28100-03iYR22,31..4FC..LE..USA198808-198811

W(5 SPEAKER),SHADOW GRAY,TRIM1#

main58810-28100-04iYR22,31..4FC..LE..USA198808-198811

W(5 SPEAKER),BLUE,TRIM8#

main58810-28100-16iYR22,31..4FC..LE..USA198808-198811

W(5 SPEAKER),SABLE,TRIM4#

main58810-28101-03iYR22,31..4FC..LE..USA198811-199001

W(5 SPEAKER),SHADOW GRAY,TRIM1#

main58810-28101-04iYR22,31..4FC..LE..USA198811-199001

W(5 SPEAKER),BLUE,TRIM8#

main58810-28101-06iYR22,31..4FC..LE..USA198811-199001

W(5 SPEAKER),SABLE,TRIM4#

main58810-28110-03iYR22..5F..LE198808-198811

GRAY,TRIM1#

main58810-28110-04iYR22..5F..LE198808-198811

W(5 SPEAKER & ICE COOL BOX),BLUE,TRIM8#

main58810-28110-16iYR22..5F..LE198808-198811

W(5 SPEAKER & ICE COOL BOX),SABLE,TRIM4#

main58810-28111-03iYR22..5F..LE198811-199001

W(5-SPEAKER & ICE COOL BOX),SHADOW GRAY,SHADOW GRAY,TRIM1#

main58810-28111-04iYR22..5F..LE198811-199001

W(5-SPEAKER & ICE COOL BOX),BLUE,BLUE,TRIM8#

main58810-28111-06iYR22..5F..LE198811-199001

W(5-SPEAKER & *DRC),SABLE,SABLE,TRIM4#

main58810-28120-03iYR22..5F..LE198808-198811

W(5 SPEAKER),GRAY,TRIM1#

main58810-28120-04iYR22..5F..LE198808-198811

W(5 SPEAKER),BLUE,TRIM8#

main58810-28120-16iYR22..5F..LE198808-198811

W(5 SPEAKER),SABLE,TRIM4#

main58810-28121-03iYR22..5F..LE198811-199001

W(5 SPEAKER),SHADOW GRAY,TRIM1#

main58810-28121-04iYR22..5F..LE198811-199001

W(5 SPEAKER),BLUE,TRIM8#

main58810-28121-06iYR22..5F..LE198811-199001

W(5 SPEAKER),SABLE,TRIM4#

main58810-95D12-03iYR22,31..4FC..LE198808-198810

W(DOOR REMOTE CONTROL MIRROR),SHADOW GRAY,TRIM1#

main58810-95D12-04iYR22,31..4FC..LE198808-198810

W(DOOR REMOTE CONTROL MIRROR),BLUE,TRIM8#

main58810-95D12-16iYR22,31..4FC..LE198808-198810

W(DOOR REMOTE CONTROL MIRROR),SABLE,TRIM4#

main58810-95D13-03iYR3#..5F198808-198810

SHADOW GRAY,TRIM1#

main58810-95D13-04iYR3#..5F198808-198810

BLUE,TRIM8#

main58810-95D13-16iYR3#..5F198808-198810

SABLE,TRIM4#

main58810-95D14-03iYR22,31..4FC..LE198808-198810

W(5 SPEAKER & DOOR REMOTE CONTROL MIRROR),SHADOW GRAY,TRIM1#

main58810-95D14-04iYR22,31..4FC..LE198808-198810

W(5 SPEAKER & DOOR REMOTE CONTROL MIRROR),BLUE,TRIM8#

main58810-95D14-16iYR22,31..4FC..LE198808-198810

W(5 SPEAKER & DOOR REMOTE CONTROL MIRROR),SABLE,TRIM4#

main58810-95D16-03iYR22,31..4FC..LE198808-198810

W(5 SPEAKER & DOOR REMOTE CONTROL MIRROR & ICE COOL BOX),SHADOW GRAY,TRIM1#

main58810-95D16-04iYR22,31..4FC..LE198808-198810

W(5 SPEAKER & DOOR REMOTE CONTROL MIRROR & ICE COOL BOX),BLUE,TRIM8#

main58810-95D16-16iYR22,31..4FC..LE198808-198810

W(5 SPEAKER & DOOR REMOTE CONTROL MIRROR & ICE COOL BOX),SABLE,TRIM4#

main58810-95D17-03iYR22,31..4FC..LE198808-198810

W(DOOR REMOTE CONTROL MIRROR & ICE COOL BOX),SHADOW GRAY,TRIM1#

main58810-95D17-04iYR22,31..4FC..LE198808-198810

W(DOOR REMOTE CONTROL MIRROR & ICE COOL BOX),BLUE,TRIM8#

main58810-95D17-16iYR22,31..4FC..LE198808-198810

W(DOOR REMOTE CONTROL MIRROR & ICE COOL BOX),SABLE,TRIM4#

main58810-95D28-03iYR31..LE198810-198811

W(DOOR REMOTE CONTROL MIRROR),SHADOW GRAY,TRIM1#

main58810-95D28-04iYR31..LE198810-198811

W(DOOR REMOTE CONTROL MIRROR),BLUE,TRIM8#

main58810-95D28-06iYR31..LE198810-198811

W(DOOR REMOTE CONTROL MIRROR),SABLE,TRIM4#

main58810-95D29-03iYR3#..5F198810-199001

SHADOW GRAY,TRIM1#

main58810-95D29-04iYR3#..5F198810-199001

BLUE,TRIM8#

main58810-95D29-06iYR3#..5F198810-199001

SABLE,TRIM4#

main58810-95D30-03iYR31..LE;YR22..4FC..LE..USA198906-199001

W(5-SPEAKER & *DRC),SHADOW GRAY,SHADOW GRAY,TRIM1#

main58810-95D30-04iYR22,31..4FC..LE198811-198906

W(5-SPEAKER & *DRC),BLUE,BLUE,TRIM8#

main58810-95D30-06iYR31..LE198810-198811

W(5-SPEAKER & *DRC),SABLE,SABLE,TRIM4#

main58810-95D32-03iYR31..LE;YR22..4FC..LE..USA198906-199001

W(5-SPEAKER & *DRC & ICE COOL BOX),SHADOW GRAY,SHADOW GRAY,TRIM1#

main58810-95D32-04iYR31..LE;YR22..4FC..LE..USA198906-199001

W(5-SPEAKER & *DRC & ICE COOL BOX),BLUE,BLUE,TRIM8#

main58810-95D32-06iYR22,31..4FC..LE198811-198906

W(5-SPEAKER & *DRC & ICE COOL BOX),SABLE,SABLE,TRIM4#

main58810-95D33-03iYR31..LE198810-198811

W(DOOR REMOTE CONTROL MIRROR & ICE COOL BOX),SHADOW GRAY,TRIM1#

main58810-95D33-04iYR31..LE198810-198811

W(DOOR REMOTE CONTROL MIRROR & ICE COOL BOX),BLUE,TRIM8#

main58810-95D33-06iYR31..LE198810-198811

W(DOOR REMOTE CONTROL MIRROR & ICE COOL BOX),SABLE,TRIM4#

58811BBOX, CONSOLE

main58811-28031-03iYR22..5F..LE198808-198810

SHADOW GRAY,TRIM1#

main58811-28031-04iYR22..5F..LE198808-198810

W(ICE COOL BOX),BLUE,TRIM8#

main58811-28031-16iYR22..4FC..LE198810-198811

SABLE,TRIM4#

main58811-28032-03iYR22..5F..LE198811-199001

SHADOW GRAY,TRIM1#

main58811-28032-04iYR22..5F..LE198811-199001

W(ICE COOL BOX),BLUE,TRIM8#

main58811-28032-06iYR22..5F..LE198811-199001

SABLE,TRIM4#

main58811-28041-03iYR22,31..LE198808-198811

SHADOW GRAY,TRIM1#

main58811-28041-04iYR22,31..LE198808-198811

BLUE,TRIM8#

main58811-28041-16iYR22,31..LE198808-198811

SABLE,TRIM4#

main58811-28042-03iYR22,31..LE198811-199001

SHADOW GRAY,TRIM1#

main58811-28042-04iYR22,31..LE198811-199001

BLUE,TRIM8#

main58811-28042-06iYR22,31..LE198811-199001

SABLE,TRIM4#

main58811-28050-03iYR22..5F..LE198808-198810

W(5 SPEAKER & ICE COOL BOX),SHADOW GRAY,TRIM1#

main58811-28050-04iYR22..5F..LE198808-198810

W(5 SPEAKER & ICE COOL BOX),BLUE,TRIM8#

main58811-28050-16iYR31..LE;YR22..5F..LE198810-198811

W(5 SPEAKER & ICE COOL BOX),SABLE,TRIM4#

main58811-28051-03iYR22,31..4FC..LE..USA198906-199001

W(5-SPEAKER & *DRC & ICE COOL BOX),SHADOW GRAY,SHADOW GRAY,TRIM1#

main58811-28051-04iYR22,31..4FC..LE..USA198906-199001

W(5-SPEAKER & *DRC & ICE COOL BOX),BLUE,BLUE,TRIM8#

main58811-28051-06iYR22,31..4FC..LE..USA198906-199001

W(5-SPEAKER & ICE COOL BOX),SABLE,SABLE,TRIM4#

main58811-28060-03iYR22..5F..LE;YR31..LE..USA198810-198811

W(5 SPEAKER),SHADOW GRAY,TRIM1#

main58811-28060-04iYR22,31..4FC..LE..USA198808-198810

W(5 SPEAKER),BLUE,TRIM8#

main58811-28060-16iYR22,31..4FC..LE..USA198808-198810

W(5 SPEAKER),SABLE,TRIM4#

main58811-28061-03iYR22,31..4FC..LE..USA198811-199001

W(5 SPEAKER),SHADOW GRAY,TRIM1#

main58811-28061-04iYR22,31..4FC..LE..USA198811-199001

W(5 SPEAKER),BLUE,TRIM8#

main58811-28061-06iYR22,31..4FC..LE..USA198811-199001

W(5 SPEAKER),SABLE,TRIM4#

58813BOX, CONSOLE, UPPER

main58813-87001-03iYR2#;YR3#..4FC198808-199001

SHADOW GRAY,TRIM1#

main58813-87001-04iYR2#;YR3#..4FC198808-199001

BLUE,TRIM8#

main58813-87001-16iYR2#;YR3#..4FC198808-199001

SABLE,TRIM4#

58820ABOX ASSY, CONSOLE COMPARTMENT

main58820-28010-03iYR22,31..LE198808-199001

SHADOW GRAY,TRIM1#

main58820-28010-04iYR22,31..LE198808-199001

BLUE,TRIM8#

main58820-28010-16iYR22,31..LE198808-199001

SABLE,TRIM4#

58844BEZEL, CONSOLE BOX

main58844-95D00-03iYR31..LE;YR22..4FC..LE..USA198906-199001

SHADOW GRAY,TRIM1#

main58844-95D00-04iYR31..LE;YR22..4FC..LE..USA198906-199001

BLUE,TRIM8#

main58844-95D00-16iYR31..LE;YR22..4FC..LE..USA198906-199001

SABLE,TRIM4#

58848COVER, SHIFT LEVER HOLE

main58848-95D03iYR3#..5F198808-199001

58856AHOLDER, CONSOLE BOX

main58856-28010iYR2#..5F198808-198810

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-28010iYR22,31..LE198808-199001

58915PANEL, BOX BOTTOM

main58915-87001-13iYR22,31..LE198808-199001

SHADOW GRAY,TRIM1#

main58915-87001-14iYR22,31..LE198808-199001

BLUE,TRIM8#

main58915-87001-16iYR22,31..LE198808-199001

SABLE,TRIM4#

58941ACOVER, PARKING BRAKE HOLE

main58941-28020iYR2#,3#198808-199001

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-28010-03iYR22,31..LE198808-199001

SHADOW GRAY,TRIM1#

main58951-28010-04iYR22,31..LE198808-199001

BLUE,TRIM8#

main58951-28010-16iYR22,31..LE198808-199001

SABLE,TRIM4#

58952ADOOR, CONSOLE COMPARTMENT, INNER

main58952-28010-03iYR22,31..LE198808-199001

SHADOW GRAY,TRIM1#

main58952-28010-04iYR22,31..LE198808-199001

BLUE,TRIM8#

main58952-28010-16iYR22,31..LE198808-199001

SABLE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-28010×2iYR22,31..LE198808-199001

58985RETAINER, CONSOLE BOX

main58985-87001×4iYR22,31..LE198808-199001

58985BRETAINER, CONSOLE BOX, NO.1

main58985-95D02iYR3#..5F198808-199001

9015960058

main90159-60058

9046304379

main90463-04379

9353054014

main93530-54014

9354054012

main93540-54012

9354054014

main93540-54014

9356715012

main93567-15012

23 parts on this diagram · 1 diagram in section
