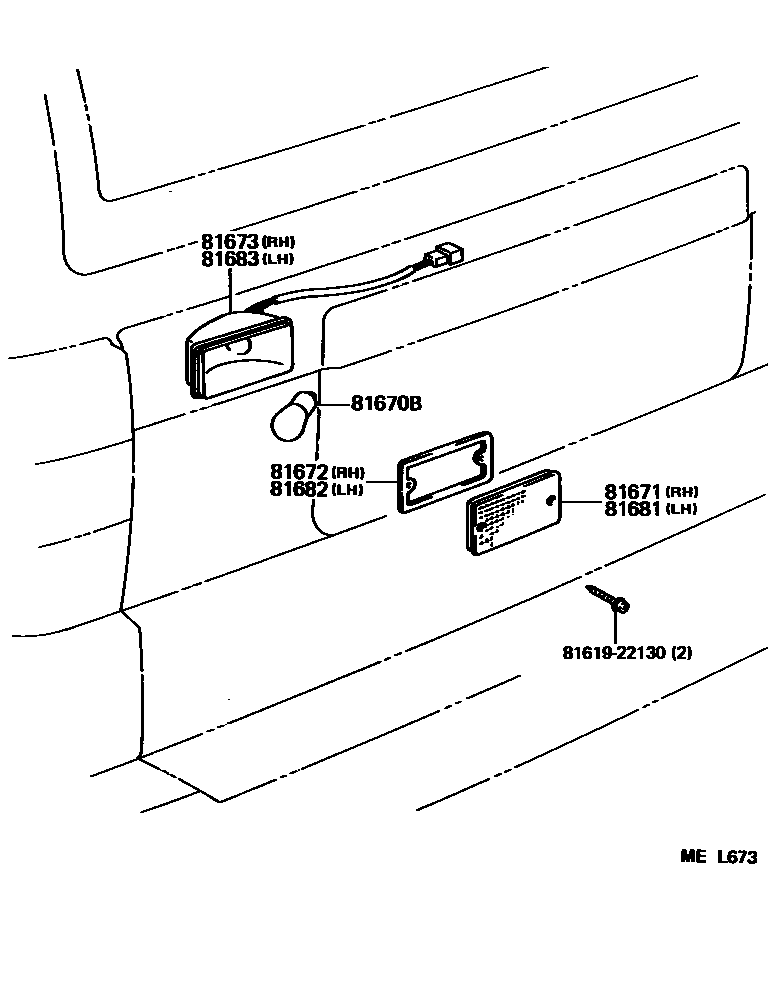

Toyota VAN — BACK UP LAMP

81670BBULB(FOR BACK-UP LAMP)

main99132-11270×2i198808-199001

12V 27W

81671LENS, BACK-UP LAMP, RH

main81671-87001i198808-199001

81672GASKET, BACK-UP LAMP LENS, RH

main81672-87001i198808-199001

81673BODY, BACK-UP LAMP, RH

main81673-28010i198808-199001

81681LENS, BACK-UP LAMP, LH

main81681-87001i198808-199001

81682GASKET, BACK UP LAMP LENS, LH

main81672-87001i198808-199001

81683BODY, BACK UP LAMP, LH

main81683-28010i198808-199001

8161922130

main81619-22130

8 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota VAN

This section contains 8 genuine Toyota parts for the BACK UP LAMP system of the Toyota VAN. Key components include: BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP LENS, RH, BODY, BACK-UP LAMP, RH, LENS, BACK-UP LAMP, LH.
