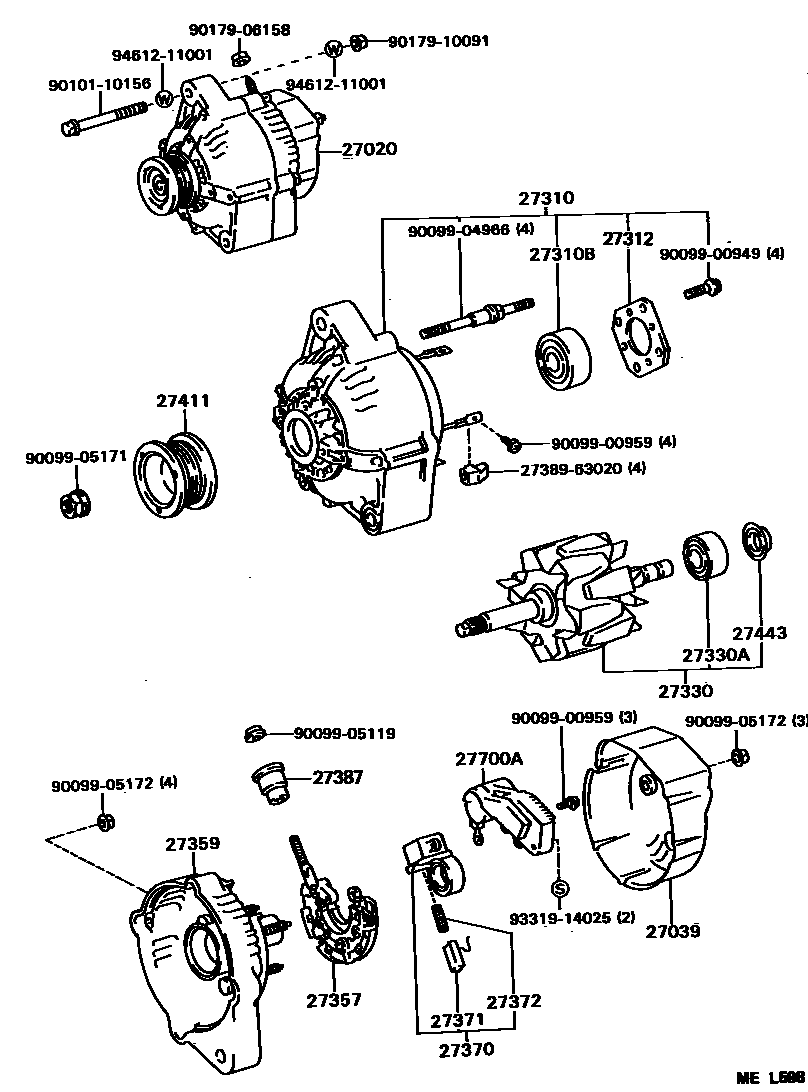

Toyota VAN — ALTERNATOR

27020ALTERNATOR ASSY

main27060-72171i4YEC..YR2#,3#198808-199001

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-72010i4YEC..YR2#,3#198808-199001

sub27039-15170

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-43051i4YEC..YR2#,3#198808-199001

sub27310-72140

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10159i4YEC..YR2#,3#198808-199001

sub90099-10199

27312PLATE, RETAINER

main27312-72100i4YEC..YR2#,3#198808-199001

27330ROTOR ASSY, ALTERNATOR

main27330-72101i4YEC..YR2#,3#198808-199001

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4YEC..YR2#,3#198808-199001

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i4YEC..YR2#,3#198808-199001

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16011i4YEC..YR2#,3#198808-199001

sub27359-16012

sub27384-16380

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-63021i4YEC..YR2#,3#198808-199001

sub27370-70300

27371BRUSH, ALTERNATOR

main27371-63020×2i4YEC..YR2#,3#198808-199001

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-72100×2i4YEC..YR2#,3#198808-199001

sub27372-63020

27387INSULATOR, TERMINAL

main27387-70170i4YEC..YR2#,3#198808-199001

27411PULLEY, ALTERNATOR

main27411-16211i4YEC..YR2#,3#198808-199001

27443COVER, ALTERNATOR BEARING

main27443-63020i4YEC..YR2#,3#198808-199001

27700AREGULATOR ASSY, GENERATOR

main27700-70030i4YEC..YR2#,3#198808-199001

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110156

main90101-10156

9017906158

main90179-06158

9017910091

main90179-10091

9331914025

main93319-14025

9461211001

main94612-11001

28 parts on this diagram · 1 diagram in section
