Toyota VAN — ALTERNATOR

27020ALTERNATOR ASSY

main27060-72010i198308-198405

12V 60A

main27060-72050i198405-198408

12V 60A

main27060-72060i198408-198508

12V 60A,12V 60A

main27060-72100i198508-198608

12V 70A

main27060-72101i198608-198710

12V 70A,12V 70A

main27060-72170i198710-198808

12V 70A,12V 70A

27039COVER, ALTERNATOR REAR END

main27039-72010i198308-198808

12V 60A,70A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-63020i198308-198408

12V 60A

main27312-72100i198408-198808

12V 60A,70A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-43051i198508-198808

12V 70A

main27310-43100i198408-198508

12V 60A

main27310-72010i198308-198309

12V 60A

main27310-72050i198309-198406

12V 60A

main27310-72090i198406-198408

12V 60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10141i198308-198309

12V 60A

main90099-10152i198309-198406

12V 60A

main90099-10156i198406-198408

12V 60A

main90099-10159i198508-198808

12V 70A

main90099-10161i198408-198508

12V 60A

27330ROTOR ASSY, ALTERNATOR

main27330-63021i198308-198408

12V 60A

main27330-72100i198408-198708

12V 60A,70A

main27330-72101i198708-198808

12V 70A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i198308-198808

12V 60A,70A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i198308-198808

12V 60A,70A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16010i198308-198406

12V 60A

main27359-16011i198406-198808

12V 60A,70A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16010i198308-198406

12V 60A

main27370-63021i198406-198408

12V 60A

main27370-63021i198603-198808

12V 60A,70A

main27370-72100i198408-198603

12V 60A,70A

27371BRUSH, ALTERNATOR

main27371-63020i198308-198808

12V 60A,70A

27372SPRING, ALTERNATOR BRUSH

main27372-72100i198308-198808

12V 60A,70A

27411PULLEY, ALTERNATOR

main27411-16180i198708-198808

12V 70A

main27411-63081i198501-198708

12V 70A

main27411-72010i198308-198408

12V 60A

main27411-72100i198408-198501

12V 60A

27443COVER, ALTERNATOR BEARING

main27443-63020i198308-198808

12V 60A,70A

27700AREGULATOR ASSY, GENERATOR

main27700-63021i198308-198405

12V 60A

main27700-63021i198508-198710

12V 70A

main27700-70030i198710-198808

12V 70A

main27700-72040i198405-198508

12V 60A

2738763020INSULATOR, TERMINAL

main27387-63020

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900950

main90099-00950

9009900959

main90099-00959

9009904966

main90099-04966

9009905118

main90099-05118

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110156

main90101-10156

9017906158

main90179-06158

9017910091

main90179-10091

9161160840

main91611-60840

9331514008

main93315-14008

9331914025

main93319-14025

9461211001

main94612-11001

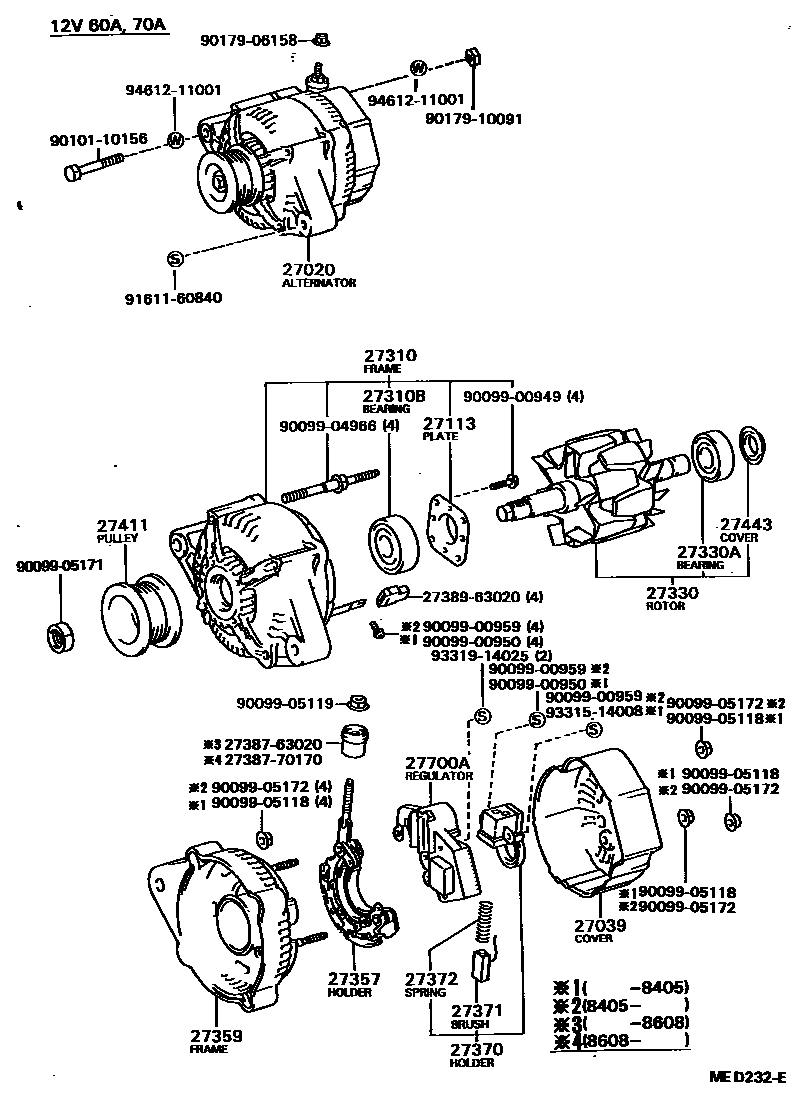

33 parts on this diagram · 1 diagram in section

ALTERNATOR for Toyota VAN

This section contains 33 genuine Toyota parts for the ALTERNATOR system of the Toyota VAN. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, PLATE, BEARING RETAINER, ALTERNATOR, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
