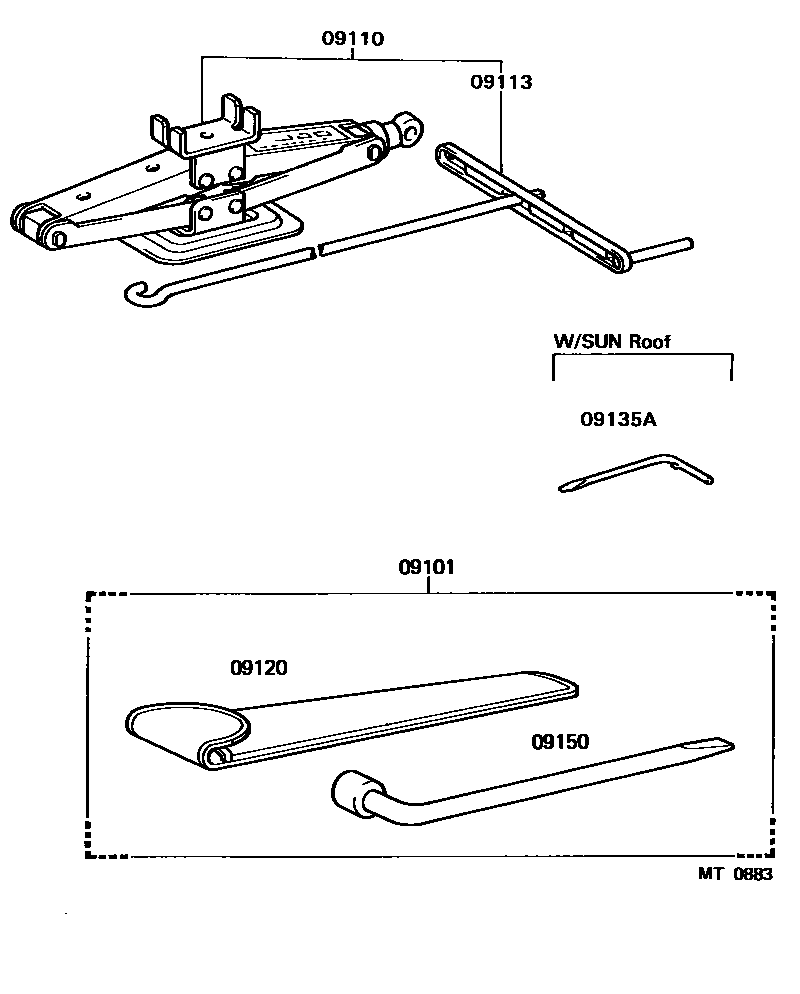

Toyota VAN — STANDARD TOOL

0001 1 0002 1

09101TOOL SET, STANDARD W/O JACK

main09101-14070iYR2#198308-198608

09110JACK ASSY

main09110-27040iYR2#198308-198509

main09111-27040iYR2#198509-198601

main09111-28020iYR2#198601-198606

main09111-28030iYR2#,3#198606-198808

09113HANDLE, JACK

main09113-13021iYR2#198308-198509

09120BAG, TOOL

main09120-12030iYR2#198308-198808

sub09120-32010

main09120-28020iYR3#198608-198808

09135ABIT, SCREW DRIVER

main09135-00012iYR21,22..LE198308-198808

W/SUN ROOF

09150WRENCH, HUB NUT BOX

main09150-40010iYR2#,3#198308-198808

6 parts on this diagram · 2 diagrams in section
