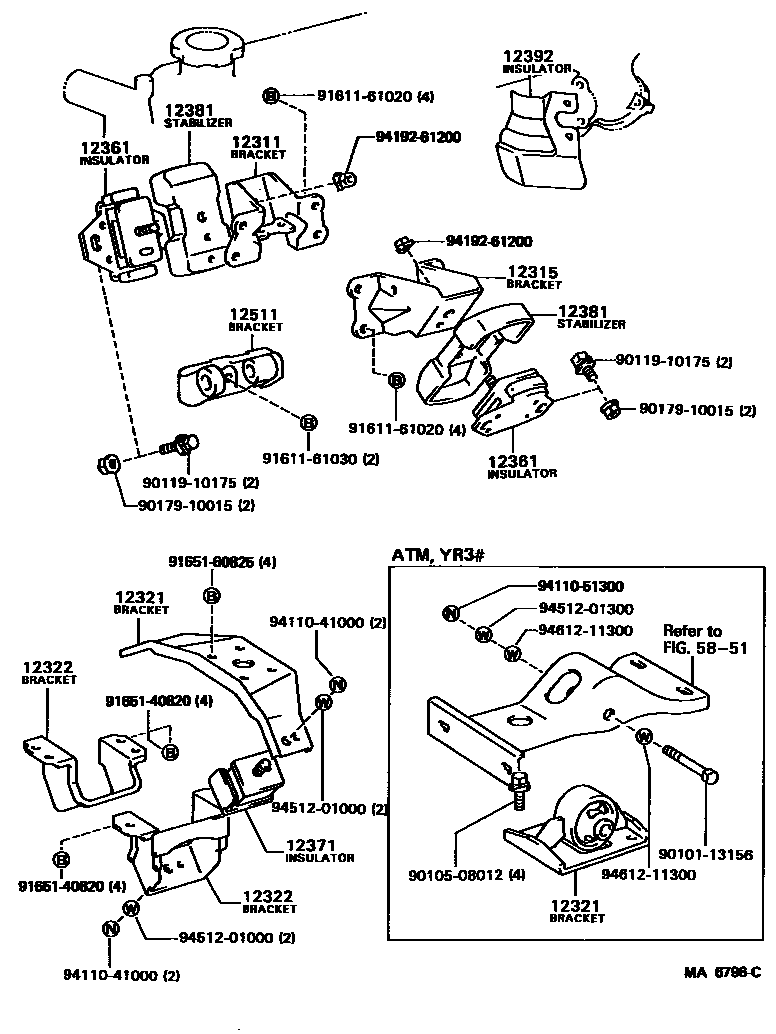

Toyota VAN — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-71010i3YEC,4YEC..YR2#,3#198308-198808

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-71010i3YEC,4YEC..YR2#,3#198308-198808

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-54010i4YEC..YR3#198608-198808

main12303-71010i3YEC,4YEC..YR2#..4FC198308-198808

main12321-71020i3YEC,4YEC..YR2#..5F198308-198808

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-13030i3YEC,4YEC..YR2#..5F198308-198808

RH

main12326-13010i3YEC,4YEC..YR2#..5F198308-198808

LH

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-38120×2i3YEC..YR2#198308-198508

MARUYASU

main12361-38130×2i3YEC..YR2#198308-198508

TOYO GOMU

main12361-71020×2i4YEC..YR2#,3#198508-198808

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-13051×2i3YEC,4YEC..YR2#..5F198308-198808

12381STABILIZER, ENGINE MOUNTING

main12381-71030×2i4YEC..YR2#,3#198508-198808

main12381-73010×2i3YEC..YR2#198308-198508

12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH

main12391-72010i3YEC,4YEC..YR2#,3#198308-198808

12511BRACKET, ALTERNATOR, NO.1

main12501-73010i3YEC..YR2#198308-198505

main12501-73011i3YEC,4YEC..YR2#,3#198505-198808

5851

9010113156

main90101-13156

9010508012

main90105-08012

9011910175

main90119-10175

9017910015

main90179-10015

9161161020

main91611-61020

9161161030

main91611-61030

9165140820

main91651-40820

9165160825

main91651-60825

9411041000

main94110-41000

9411051300

main94110-51300

9419261200

main94192-61200

9451201000

main94512-01000

9451201300

main94512-01300

9461211300

main94612-11300

24 parts on this diagram · 1 diagram in section
