Toyota VAN — MIRROR

0001 1 0002 1

8121

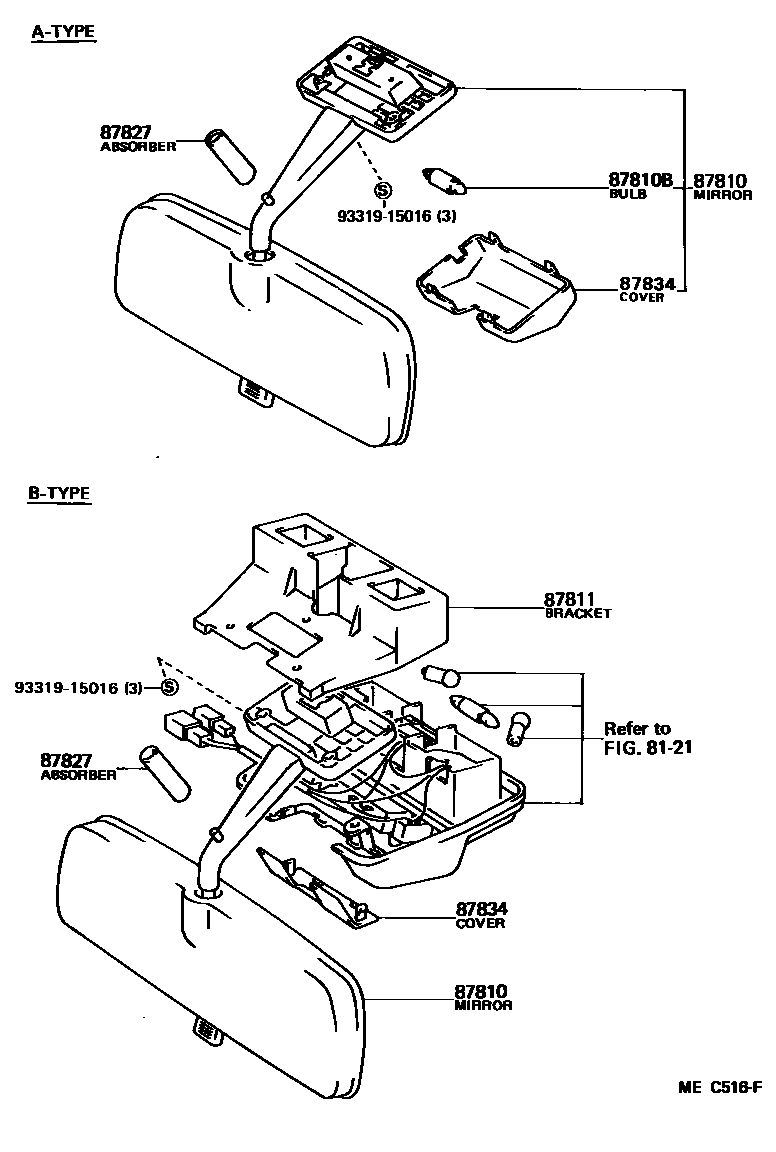

87810MIRROR ASSY, INNER REAR VIEW

main87801-28010-03iYR31..DLX198708-198808

B-TYPE,GRAY,GRAY,TRIM1#

sub87801-87005

main87801-28010-05iYR21..LE198308-198408

B-TYPE,BEIGE,BEIGE,TRIM4#

sub87801-87005

main87801-28010-15iYR21..LE198408-198508

B-TYPE,BEIGE,BEIGE,TRIM4#

sub87801-87005

main87801-28010-25iYR31..DLX198708-198808

B-TYPE,BEIGE,BEIGE,TRIM4#

sub87801-87005

main87801-28020-03iYR22,32..(DLX,STD)..USA198508-198808

A-TYPE,GRAY,GRAY,TRIM1#,8#

main87801-28020-15iYR21;YR27..USA198408-198508

A-TYPE,BEIGE,BEIGE,TRIM4#

main87801-28020-25iYR22,32..(DLX,STD)..USA198508-198808

A-TYPE,BEIGE,BEIGE,TRIM4#

main87801-28030-03iYR29,32198508-198808

A-TYPE,GRAY,GRAY,TRIM1#,4#

sub87801-28050

main87801-28030-05iYR27..CND198311-198408

A-TYPE,BEIGE

sub87801-28050

main87801-28030-15iYR27..CND198408-198508

A-TYPE,BEIGE,BEIGE,TRIM4#

sub87801-28050

main87801-28030-25iYR29,32198508-198808

A-TYPE,BEIGE,BEIGE,TRIM4#

sub87801-28050

main87810-28020-03iYR21..LE198308-198508

A-TYPE,GRAY,GRAY,TRIM1#

main87810-28020-05iYR21;YR27..USA198308-198408

A-TYPE,BEIGE,BEIGE,TRIM4#

main87810-28030-03iYR27..CND198311-198408

A-TYPE,GRAY

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-12100iYR2#,32..DLX,STD198508-198808

12V 10W,12V 10W

87811BRACKET, INNER RR VIEW MIRROR

main87811-87001iYR21,22,31..LE198308-198808

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-12020iYR21198308-198408

L=30

main87828-22020iYR21198308-198408

L=35

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81241-87001iYR2#198308-198508

A-TYPE

main87834-87003-03iYR21,22,31..LE198308-198808

B-TYPE,GRAY,GRAY,TRIM1#,8#

main87834-87003-05iYR21..LE198308-198408

B-TYPE,BEIGE,BEIGE,TRIM4#

main87834-87003-15iYR21..LE198408-198508

B-TYPE,BEIGE,BEIGE,TRIM4#

main87834-87003-25iYR22,31..LE198508-198808

B-TYPE,BEIGE,BEIGE,TRIM4#

9331915016

main93319-15016

7 parts on this diagram · 2 diagrams in section
