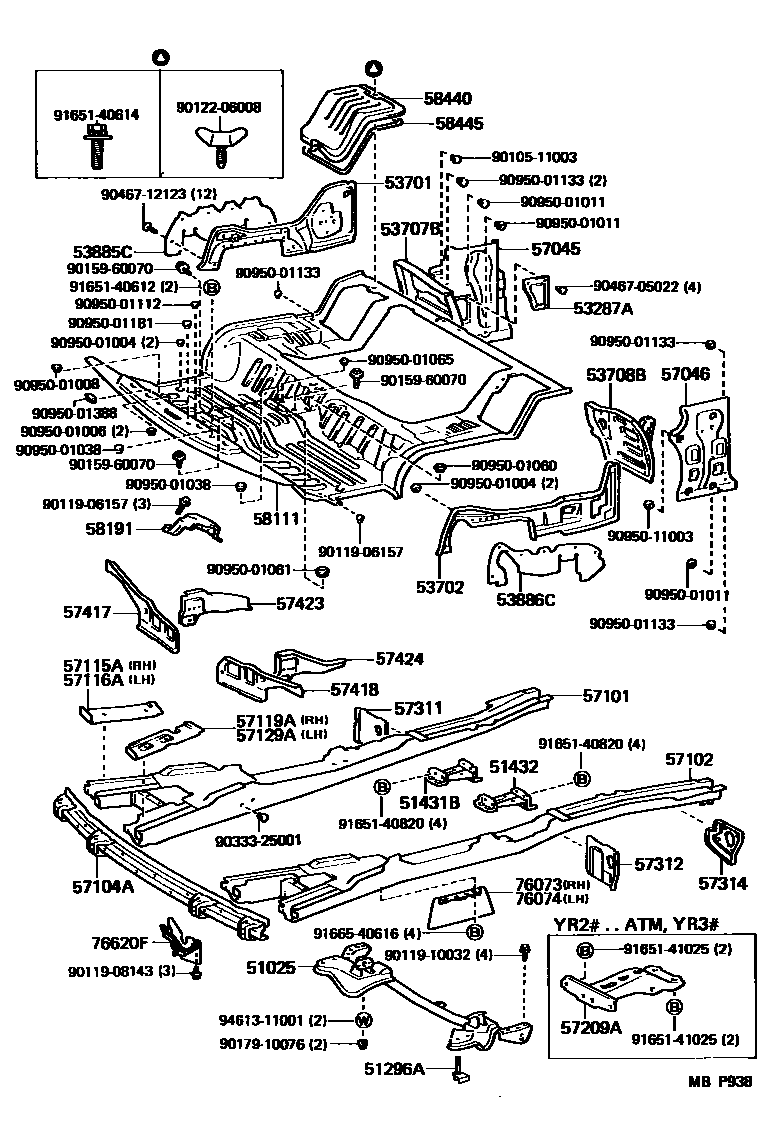

Toyota VAN — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51025-28020iYR2#..USA198808-199001

main51025-28040iYR2#..CND198808-199001

main51025-95D02iYR3#198808-199001

51296ABOLT, ENGINE FRONT SUPPORT MEMBER

main51296-87001iYR2#198808-199001

RH

main51296-87002iYR2#198808-199001

LH

51431BBRACKET, ENGINE REAR MOUNTING

main51431-87002iYR2#..5F198808-199001

51432BRACKET, ENGINE REAR MOUNTING, LH

main51432-87002iYR2#..5F198808-199001

53287ACOVER, COOLER PIPE HOLE

main53287-87001iYR2#,3#198808-199001

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-28011iYR2#,3#198808-199001

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-87013iYR2#,3#198808-199001

sub53702-28110

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-87011iYR2#,3#198808-199001

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-28011iYR2#,3#198808-199001

53885CSEAL, FENDER APRON MUDGUARD, RH

main53885-87004iYR2#198808-199001

main53885-87005iYR3#198808-199001

53886CSEAL, FENDER APRON MUDGUARD, LH

main53886-87002iYR2#198808-199001

main53886-87003iYR3#198808-199001

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-28020iYR2#,3#198808-199001

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-28020iYR2#,3#198808-199001

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28050iYR2#198808-199001

main57101-28110iYR22..LE198808-199001

W(CAPTAIN SEAT = BELT DOWN TYPE)

main57101-95D09iYR3#198808-199001

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28060iYR2#198808-199001

main57102-28090iYR22..LE198808-199001

W(CAPTAIN SEAT = BELT DOWN TYPE)

main57102-95D06iYR3#198808-199001

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-28070iYR2#,3#198808-199001

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-28020iYR2#,3#198808-199001

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-28020iYR2#,3#198808-199001

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-28020iYR2#,3#198808-199001

57129APLATE, FRONT SIDE MEMBER, FRONT LH

main57129-28020iYR2#,3#198808-199001

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-95D01iYR3#198808-199001

main57255-87005iYR2#..4FC198808-199001

57311OUTRIGGER, NO.1 RH

main57301-28010iYR3#198808-199001

57312OUTRIGGER, NO.1 LH

main57302-28050iYR3#198808-199001

57314OUTRIGGER, NO.2 LH

main57314-28010iYR3#198808-199001

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-28010iYR2#,3#198808-199001

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-28010iYR2#,3#198808-199001

sub57418-87002

57423BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-28010iYR2#,3#198808-199001

57424BRACKET, FRONT FLOOR REINFORCEMENT, LH

main57424-28010iYR2#,3#198808-199001

58111PAN, FRONT FLOOR

main58111-28130iYR29,32..CND198808-199001

main58111-28140iYR29,32..CND198808-199001

W(FOOT REST)

main58111-28150iYR22,31..DLX;YR29,32..USA198808-199001

sub58111-87036

main58111-28160iYR22,31..LE198808-199001

W(FOOT REST)

58191FOOTREST, FRONT FLOOR

main58190-28010iYR22,31..LE198808-199001

58440COVER ASSY, BATTERY SERVICE HOLE

main58207-87002iYR2#,3#198808-199001

58445PACKING, BATTERY SERVICE HOLE COVER

main58459-87001iYR2#,3#198808-199001

76073PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, RH

main76073-95D00iYR3#198808-199001

76074PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, LH

main76073-95D00iYR3#198808-199001

76620FPROTECTOR ASSY, STEERING MAIN SHAFT, LH

main76620-95D00iYR3#198808-199001

9010511003

main90105-11003

9011906157

main90119-06157

9011908143

main90119-08143

9011910032

main90119-10032

9012206008

main90122-06008

9015960070

main90159-60070

9017910076

main90179-10076

9033325001

main90333-25001

9046705022

main90467-05022

9046712123

main90467-12123

9095001004

main90950-01004

9095001006

main90950-01006

9095001008

main90950-01008

9095001011

main90950-01011

9095001038

main90950-01038

9095001060

main90950-01060

9095001061

main90950-01061

9095001065

main90950-01065

9095001112

main90950-01112

9095001133

main90950-01133

9095001181

main90950-01181

9095001388

main90950-01388

9095011003

main90950-11003

9165140612

main91651-40612

9165140614

main91651-40614

9165140820

main91651-40820

9165141025

main91651-41025

9166540616

main91665-40616

9461311001

main94613-11001

64 parts on this diagram · 3 diagrams in section
