E
EPC Data

Toyota VAN — ARMREST & VISOR

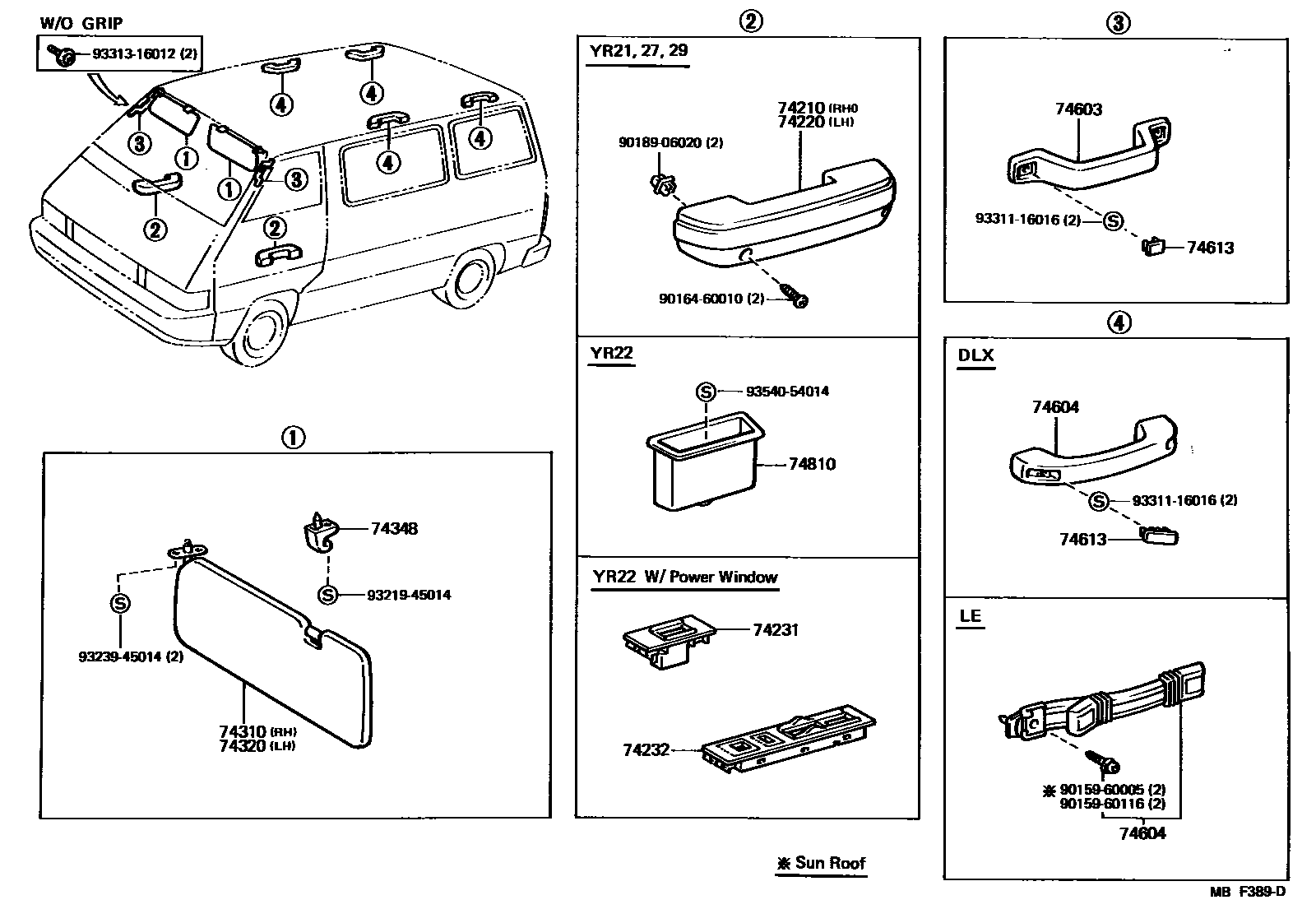

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74250-20010-02i198408-198508
WINE,RED/MAROON,TRIM4#
main74250-20010-03i198308-198408
GRAY,GRAY,TRIM1#
main74250-20010-13i198603-198808
GRAY,SHADOW GRAY,TRIM1#,4#
main74250-20010-14i198408-198508
BLUE,BLUE,TRIM1#
main74250-20010-15i198308-198408
BEIGE,BEIGE,TRIM4#
main74250-20010-45i198508-198808
BEIGE,BEIGE,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74250-20010-02i198408-198508
WINE,RED/MAROON,TRIM4#
main74250-20010-03i198308-198408
GRAY,GRAY,TRIM1#
main74250-20010-13i198603-198808
GRAY,SHADOW GRAY,TRIM1#,4#
main74250-20010-14i198408-198508
BLUE,BLUE,TRIM1#
main74250-20010-15i198308-198408
BEIGE,BEIGE,TRIM4#
main74250-20010-45i198508-198808
BEIGE,BEIGE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74232-87001-03i198608-198808
W/*PW,GRAY,SHADOW GRAY,TRIM1#
main74232-87001-04i198508-198608
W/*PW,BLUE,BLUE,TRIM8#
main74232-87001-06i198508-198808
W/*PW,BROWN,BROWN,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74231-87001-04i198508-198601
W/*PW,BLUE,BLUE,TRIM8#
sub84820-87H00
sub84820-87H02
sub84820-95H00
sub84820-95H01
sub84820-87H01
sub84820-87H03
main74231-87001-06i198508-198601
W/*PW,BROWN,BROWN,TRIM4#
sub84820-87H00
sub84820-87H02
sub84820-95H00
sub84820-95H01
sub84820-87H01
sub84820-87H03
main74231-87002-03i198608-198808
W/*PW,GRAY,SHADOW GRAY,TRIM1#
main74231-87002-04i198601-198608
W/*PW,BLUE,BLUE,TRIM8#
main74231-87002-06i198601-198808
W/*PW,BROWN,BROWN,TRIM4#
74310VISOR ASSY, RH
main74310-28040i198308-198408
BEIGE
main74310-28040-03i198708-198808
GRAY,GRAY,TRIM1#
main74310-28040-15i198408-198508
BEIGE,BEIGE,TRIM4#
main74310-28040-25i198508-198808
BEIGE,BEIGE,TRIM4#
main74310-28050-03i198308-198808
GRAY,GRAY,TRIM1#,8#
sub74310-28021
main74310-28050-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub74310-28021
main74310-28050-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub74310-28021
main74310-28050-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub74310-28021
main74310-28060-03i198308-198408
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74310-28060-05i198308-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-28060-13i198408-198508
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74310-28060-15i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74310-28060-23i198508-198808
W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
main74310-28060-25i198508-198808
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
74320VISOR ASSY, LH
main74320-28030-03i198308-198408
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74320-28030-05i198308-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74320-28030-13i198408-198508
W/SUN ROOF,GRAY,GRAY,TRIM1#
main74320-28030-15i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74320-28030-23i198508-198808
W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
main74320-28030-25i198508-198808
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
main74320-28040-03i198508-198808
W/TRAILER TOWING CAUTION,GRAY,GRAY,TRIM1#,4#
main74320-28040-05i198402-198408
BEIGE,BEIGE,TRIM4#
main74320-28040-15i198408-198508
BEIGE,BEIGE,TRIM4#
main74320-28040-25i198508-198808
W/TRAILER TOWING CAUTION,BLUE,BEIGE,TRIM1#,4#
main74320-87015-03i198508-198808
GRAY,GRAY,TRIM1#,4#
sub74320-87014
main74320-87015-05i198311-198408
BEIGE,BEIGE,TRIM4#
sub74320-87014
main74320-87015-25i198408-198508
BEIGE,BEIGE,TRIM4#
sub74320-87014
main74320-87015-35i198508-198808
BEIGE,BEIGE,TRIM4#
sub74320-87014
main74320-95D01-03i198608-198808
W/TRAILER TOWING CAUTION,GRAY,GRAY,TRIM1#
main74320-95D01-05i198608-198808
BEIGE,BEIGE,TRIM4#
main74320-95D02-03i198608-198808
GRAY,GRAY,TRIM1#
main74320-95D02-05i198608-198808
BEIGE,BEIGE,TRIM4#
74348HOLDER, VISOR
main74348-32010-13×2i198708-198808
GRAY,GRAY,TRIM1#
sub74348-17010
sub74348-12020
main74348-32010-15×2i198308-198408
BEIGE,BEIGE,TRIM4#
sub74348-17010
sub74348-12020
main74348-32010-25×2i198408-198508
BEIGE,BEIGE,TRIM4#
sub74348-17010
sub74348-12020
main74348-32010-35×2i198508-198808
BEIGE,BEIGE,TRIM4#
sub74348-17010
sub74348-12020
74603GRIP SUB-ASSY, ASSIST, FRONT
main74603-16010-03×2i198308-198608
GRAY,GRAY,TRIM1#,8#
sub74610-16010
sub74610-12030
main74603-16010-05×2i198308-198408
BEIGE,BEIGE,TRIM4#
sub74610-16010
sub74610-12030
main74603-16010-15×2i198408-198508
BEIGE,BEIGE,TRIM4#
sub74610-16010
sub74610-12030
main74603-16010-25×2i198508-198608
BEIGE,BEIGE,TRIM4#
sub74610-16010
sub74610-12030
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-10020-15×3i198308-198408
BEIGE,BEIGE,TRIM4#
main74610-10020-35×3i198408-198508
BEIGE,BEIGE,TRIM4#
main74610-14030-05×3i198308-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub74610-12050
main74610-14030-13×3i198308-198808
W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
sub74610-12050
main74610-14030-25×3i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub74610-12050
main74610-14030-35×4i198508-198808
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub74610-12050
main74610-87005-03×3i198708-198808
GRAY,GRAY,TRIM1#
main74610-87005-05×3i198308-198408
BEIGE,BEIGE,TRIM4#
main74610-87005-15×3i198408-198508
BEIGE,BEIGE,TRIM4#
main74610-87005-25×4i198508-198808
BEIGE,BEIGE,TRIM4#
74613PLUG, ASSIST GRIP
main74617-14010-05×6i198308-198408
RR,BEIGE,BEIGE,TRIM4#
main74617-14010-25×6i198408-198508
RR,BEIGE,BEIGE,TRIM4#
main74617-16010-05×4i198308-198408
FR,BEIGE,BEIGE,TRIM4#
main74617-16010-13×4i198308-198608
FR,GRAY,GRAY,TRIM1#,8#
main74617-16010-35×4i198408-198508
FR,BEIGE,BEIGE,TRIM4#
main74617-16010-45×4i198508-198608
FR,BEIGE,BEIGE,TRIM4#
74810PULL ASSY, DOOR, INSIDE
main74811-87001-03×2i198608-198708
GRAY,SHADOW GRAY,TRIM1#
main74811-87001-04×2i198508-198608
BLUE,BLUE,TRIM8#
main74811-87001-06×2i198508-198808
BROWN,BROWN,TRIM4#
9015960005
main90159-60005
9015960116
main90159-60116
9016460010
main90164-60010
9018906020
main90189-06020
9321945014
main93219-45014
9323945014
main93239-45014
9331116016
main93311-16016
9331316012
main93313-16012
9354054014
main93540-54014

20 parts on this diagram · 1 diagram in section

Toyota VAN ARMREST & VISOR — Parts Diagram | EPC Data
