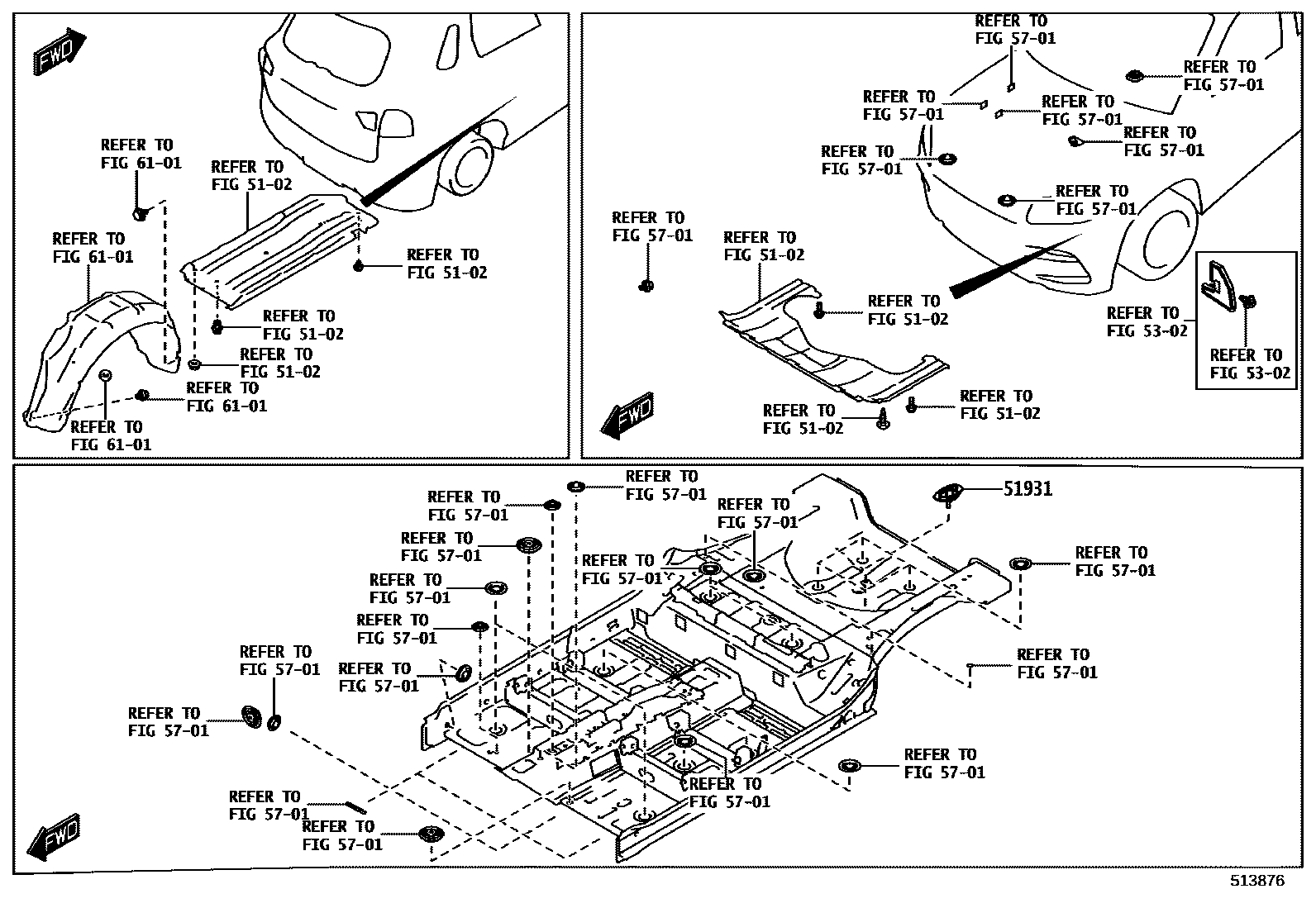

Toyota URBAN CRUISER — SPARE WHEEL CARRIER

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51931CARRIER, SPARE WHEEL, NO.1

main51931-WC003i202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5701HOLE PLUG

→ Go to FIG 57-01

6101SIDE MEMBER

→ Go to FIG 61-01

5 parts on this diagram · 1 diagram in section

SPARE WHEEL CARRIER for Toyota URBAN CRUISER

This section contains 5 genuine Toyota parts for the SPARE WHEEL CARRIER system of the Toyota URBAN CRUISER. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, CARRIER, SPARE WHEEL, NO.1, HOOD & FRONT FENDER, HOLE PLUG, SIDE MEMBER.
