Toyota URBAN CRUISER — ROOF SIDE VENTILATOR

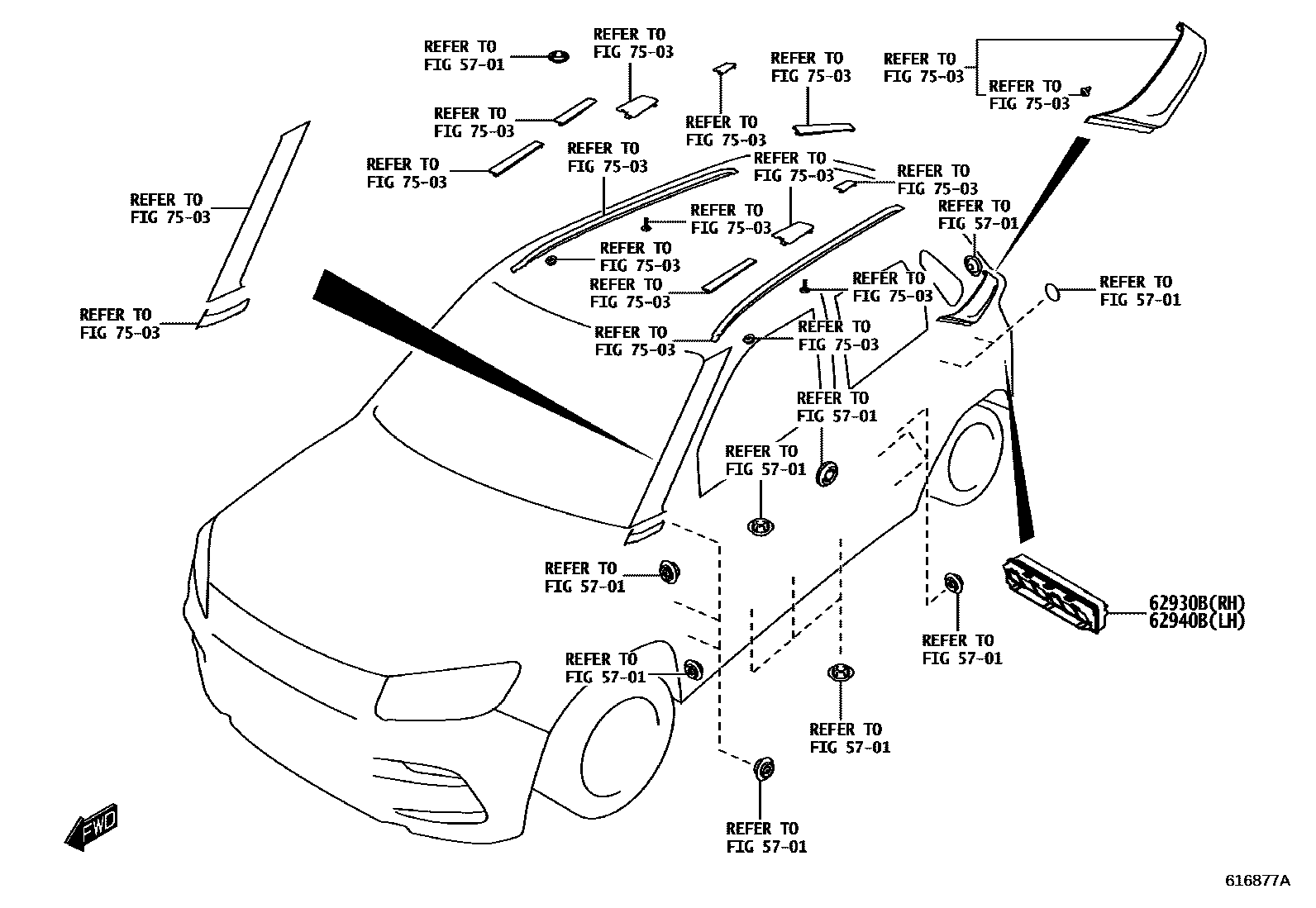

Parts diagram
5701HOLE PLUG
→ Go to FIG 57-01
62930BDUCT ASSY, QUARTER VENT, RH
main62940-WC002i202012
62940BDUCT ASSY, QUARTER VENT, LH
main62940-WC002i202012
7503SIDE MOULDING
→ Go to FIG 75-03

4 parts on this diagram · 2 diagrams in section

ROOF SIDE VENTILATOR for Toyota URBAN CRUISER

This section contains 4 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota URBAN CRUISER. Key components include: HOLE PLUG, DUCT ASSY, QUARTER VENT, RH, DUCT ASSY, QUARTER VENT, LH, SIDE MOULDING.
