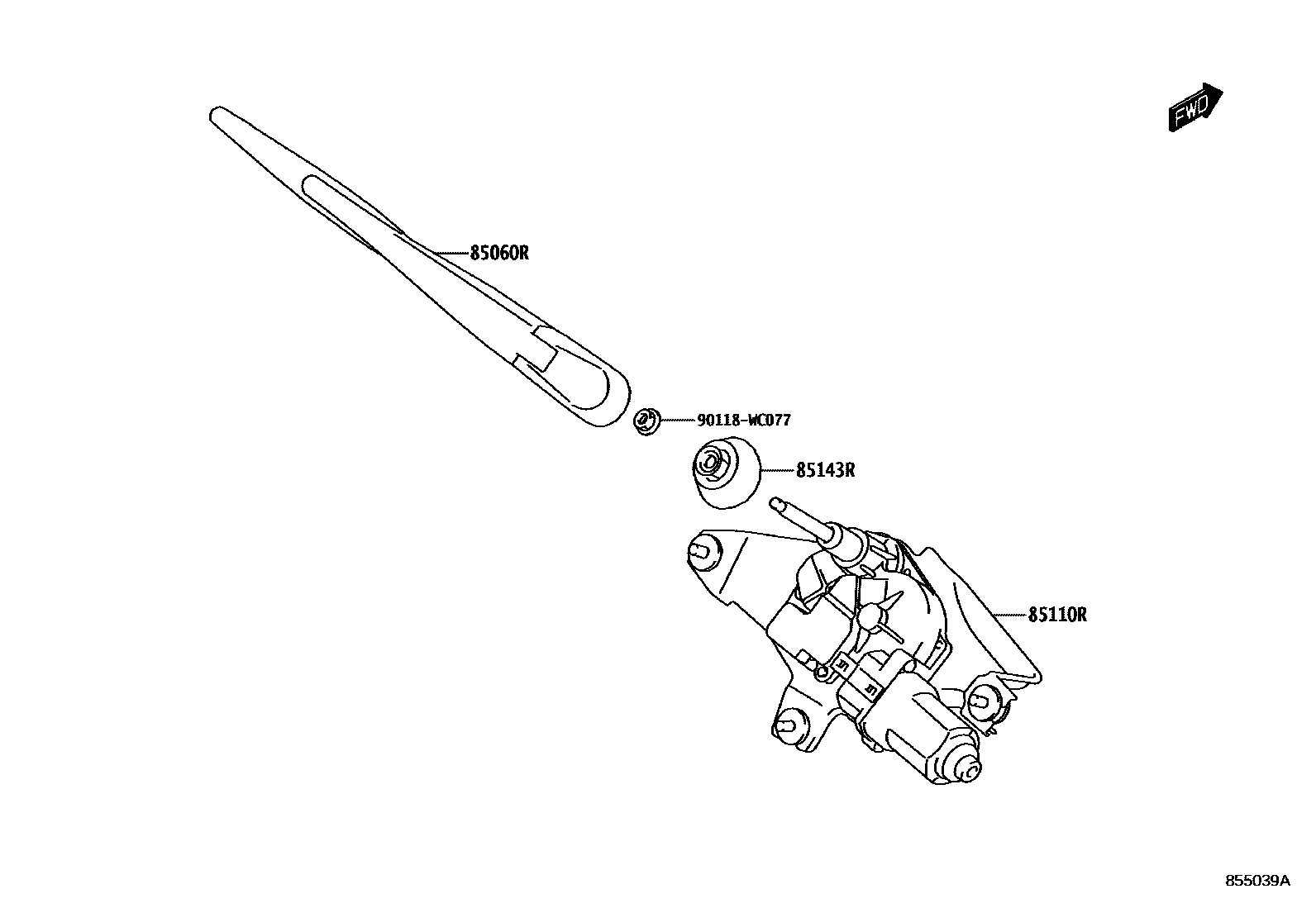

Toyota URBAN CRUISER — REAR WIPER
85060RARM AND BLADE ASSY, REAR WIPER
main85240-WC003iFG6112K..GHA; FG6112K..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.43; POS.44; POS.49; POS.50; POS.51; POS.53; POS.54
85110RMOTOR ASSY, REAR WIPER
main85130-WC006iFG6112K..GHA; FG6112K..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.43; POS.44; POS.49; POS.50; POS.51; POS.53; POS.54
85143RGROMMET, REAR WIPER MOTOR
main85143-WC005iFG6112K..GHA; FG6112K..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.43; POS.44; POS.49; POS.50; POS.51; POS.53; POS.54
90118WC077
main90118-WC077
4 parts on this diagram · 1 diagram in section
REAR WIPER for Toyota URBAN CRUISER
This section contains 4 genuine Toyota parts for the REAR WIPER system of the Toyota URBAN CRUISER. Key components include: ARM AND BLADE ASSY, REAR WIPER, MOTOR ASSY, REAR WIPER, GROMMET, REAR WIPER MOTOR.
