Toyota URBAN CRUISER — PARTIAL ENGINE ASSEMBLY

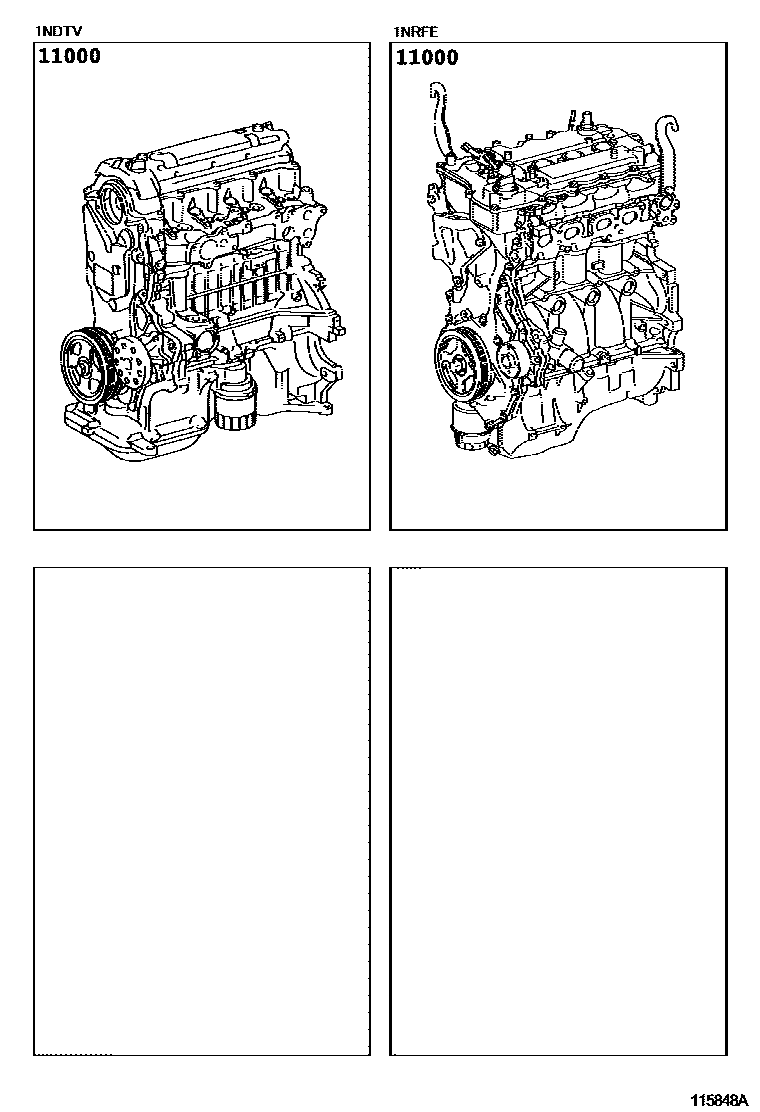

11000ENGINE ASSY, PARTIAL

main19000-33280i200901-200911

main19000-33281i200911-201008

main19000-33330i201008-201009

main19000-33331i201009-201112

main19000-33332i201112-201405

main19000-47080i200901-201008

WITH(STOP & START SYSTEM)

main19000-47081i201008-201301

WITH(STOP & START SYSTEM)

main19000-47082supersedes 19000-47092i201301-201405

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota URBAN CRUISER

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota URBAN CRUISER. Key components include: ENGINE ASSY, PARTIAL.
