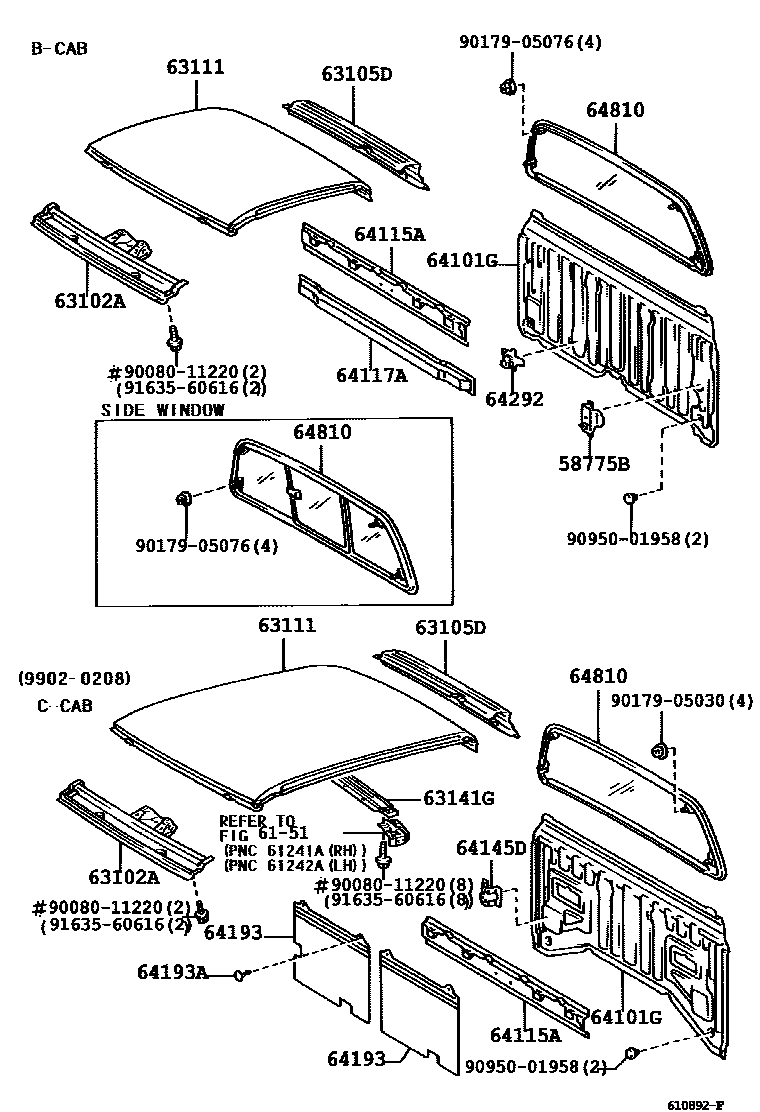

Toyota TUNDRA — ROOF PANEL & BACK PANEL
58775BBRACKET, JACK ROD SUPPORT, NO.1
6151SIDE MEMBER
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
63141GREINFORCEMENT, ROOF PANEL, NO.1
64101GPANEL SUB-ASSY, BACK
64115AREINFORCEMENT, BACK, UPPER
64117AREINFORCEMENT, CAB BACK, LOWER
64145DBRACKET, REAR SEATBACK SET
64193PAD, BACK PANEL SILENCER
64193ACLIP(FOR BACK PANEL SILENCER PAD)
64810WINDOW ASSY, BACK
9008011220
main90080-11220
9017905030
main90179-05030
9017905076
main90179-05076
9095001958
main90950-01958
9163560616
main91635-60616
19 parts on this diagram · 6 diagrams in section
ROOF PANEL & BACK PANEL for Toyota TUNDRA
This section contains 82 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota TUNDRA. Key components include: BRACKET, JACK ROD SUPPORT, NO.1, BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, RH, BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, LH, SIDE MEMBER, PLATE, CAB REAR PILLAR, UPR RH.
