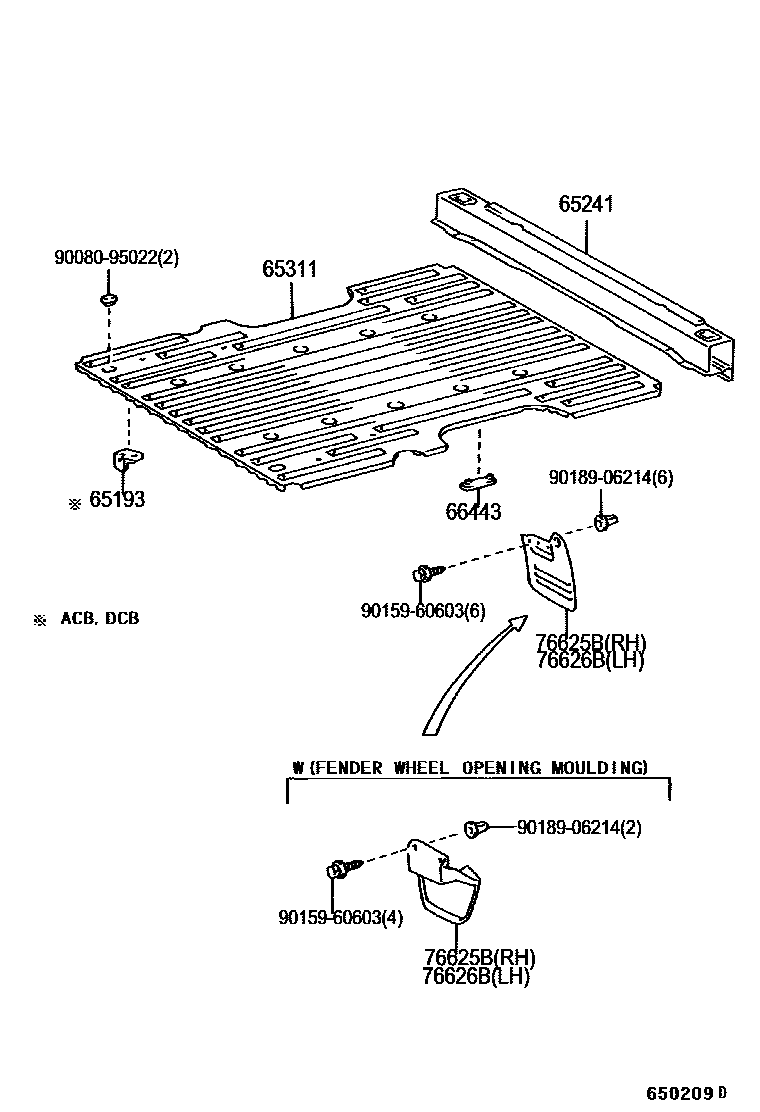

Toyota TUNDRA — REAR BODY FLOOR & FENDER

Parts diagram

65193BRACKET, MOUNTING, NO.5 RH

main65193-0C010i200208-200408

65241SILL, REAR CROSS

main65240-0C010i200408

main65240-0C020i200408

main65240-0C030i200408

65311PANEL, FLOOR, CENTER

main65311-0C010i199902-200208

main65311-0C030i199902-200208

main65311-0C040i200208-200408

66443SHIM, MOUNTING, NO.3

main66443-34020×4i199902-200208

76625BMUDGUARD, REAR BODY, RH

main76625-0C010i199902-200208

main76625-0C020i200408

W(FENDER WHEEL OPENING MOULDING)

main76625-0C040i200208-200408

main76625-0C050i200310-200408

76626BMUDGUARD, REAR BODY, LH

main76626-0C010i200208-200408

main76626-0C020i200008-200208

W(FENDER WHEEL OPENING MOULDING)

main76626-0C040i200408

main76626-0C050i200408

9008095022

main90080-95022

9015960603

main90159-60603

9018906214

main90189-06214

9 parts on this diagram · 3 diagrams in section

REAR BODY FLOOR & FENDER for Toyota TUNDRA

This section contains 12 genuine Toyota parts for the REAR BODY FLOOR & FENDER system of the Toyota TUNDRA. Key components include: SILL ASSY, CROSS, NO.2, SILL ASSY, CROSS, NO.4, SILL ASSY, CROSS, NO.5, BRACKET, MOUNTING, NO.5 RH, SILL, REAR CROSS.
