Toyota TUNDRA — REAR BODY ASSEMBLY

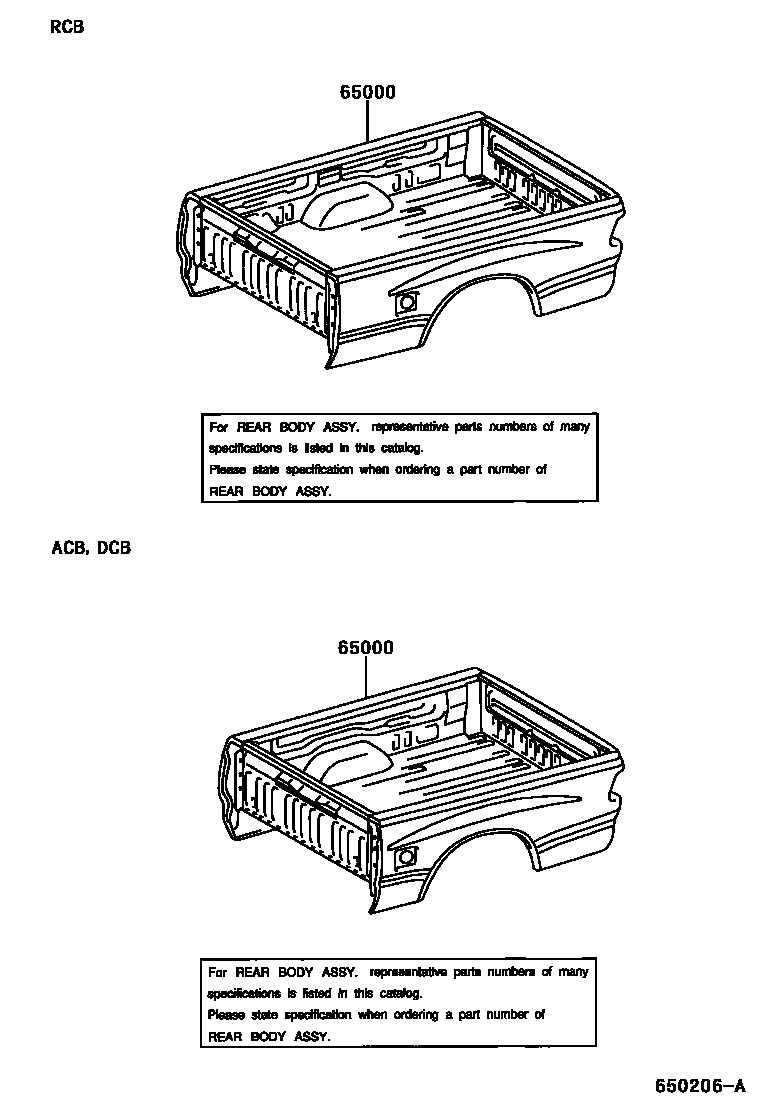

Parts diagram

65000BODY ASSY, REAR

main66000-0C040i199902-200008

main66000-0C041i200008-200208

main66000-0C042i200208-200408

main66000-0C050i199902-200008

main66000-0C051i200008-200208

main66000-0C052i200208-200408

main66000-0C060i199906-200008

W(OVER FENDER)

main66000-0C061i200008-200208

W(OVER FENDER)

main66000-0C062i200208-200408

W(OVER FENDER)

main66000-0C080i200208-200408

main66000-0C160i200408-200608

main66000-0C170i200408

main66000-0C180i200408

W(OVER FENDER)

main66000-0C190i200408

main66000-0C200i200408

main66000-0C210i200310-200408

main66000-0C220i200310-200408

W(OVER FENDER)

main66000-0C230i200408

W(OVER FENDER)

1 parts on this diagram · 1 diagram in section

REAR BODY ASSEMBLY for Toyota TUNDRA

This section contains 1 genuine Toyota parts for the REAR BODY ASSEMBLY system of the Toyota TUNDRA. Key components include: BODY ASSY, REAR.
