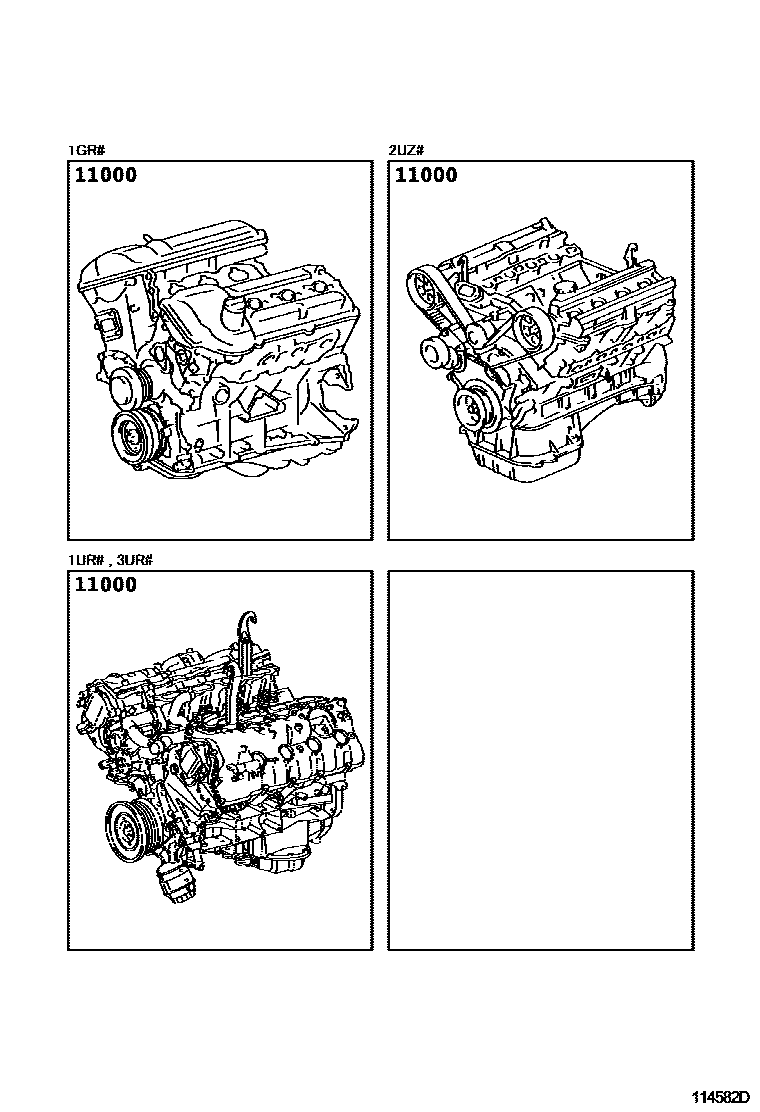

Toyota TUNDRA — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0F030i2UZFE..UCK5#200611-200904

sub19000-50D80

main19000-0P120i1GRFE..GSK5#200904-201010

sub19000-31Q90

main19000-0S010i3URFBE..USK55,56200808-200903

TOWING PACKAGE-WITH

sub11452-0S011

sub15301-38061

main19000-0S011supersedes 19000-0S021i3URFE..USK50,51,55,56200903-200904

(L)

sub19000-38271

main19000-0S070supersedes 19000-0S080i1URFE..UPK52,57200904-201005

TOWING PACKAGE-WITH

sub19000-38760

main19000-0S090supersedes 19000-0S100i3UR#..USK52,57201109-201308

TOWING PACKAGE-WITH

sub19000-38780

main19000-0S140i1URFE..UPK5#201708-201907

sub19000-38830

main19000-31K80i1GRFE..GSK5#201010-201012

main19000-31K81i1GRFE..GSK5#201012-201308

main19000-38180i3URFE..USK50,51,55,56200701-200810

(J)

main19000-38270supersedes 19000-38250i3URFE..USK50,51,55,56200810-200904

TOWING PACKAGE-WITH,(J)

sub19000-38271

sub11452-38081

sub15301-38061

main19000-0S120supersedes 19000-0S130i3URFBE..USK56,57201708-201907

TOWING PACKAGE-WITH

sub19000-38810

main19000-0S170i3URFE..USK51,56..CMAX..S201409-201708

MEXICO SPEC

sub19000-38850

main19000-0S180i3URFE..USK56..CMAX;3URFE..USK51..CMAX..S201708

SOUTH AMERICA SPEC&TOWING PACKAGE-WITH

sub19000-38860

main19000-0S190i1URFE..UPK5#..CMAX201708-201907

SOUTH AMERICA SPEC

1 parts on this diagram · 1 diagram in section
