Toyota TUNDRA — PARTIAL ENGINE ASSEMBLY

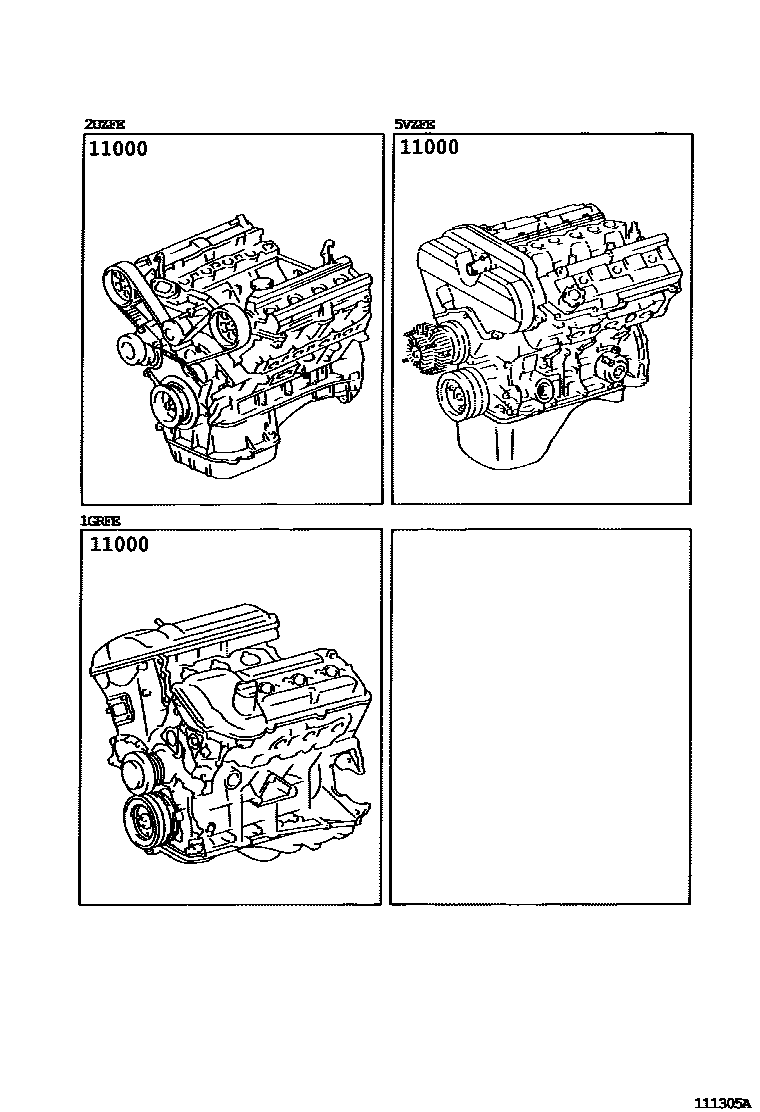

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0F010i200305-200408
(L)
main19000-0F020i200408
sub19000-50B10
main19000-0P070i200508
(L)
sub19000-31Q80
main19000-31560i200408-200409
(J)
sub16603-31030
sub16649-31010
main19000-31561i200409
(J)
main19000-50460i199902-199903
main19000-50461i199903-199911
main19000-50462i199911-200001
main19000-50463i200001-200006
sub12262-0F020
main19000-50464i200006-200110
sub89661-0C331
sub89661-0C341
sub89661-0C351
sub89661-0C361
main19000-50700i200208-200408
(J)
main19000-62320i199902-200208
main19000-62330i199902-200208

1 parts on this diagram · 1 diagram in section
