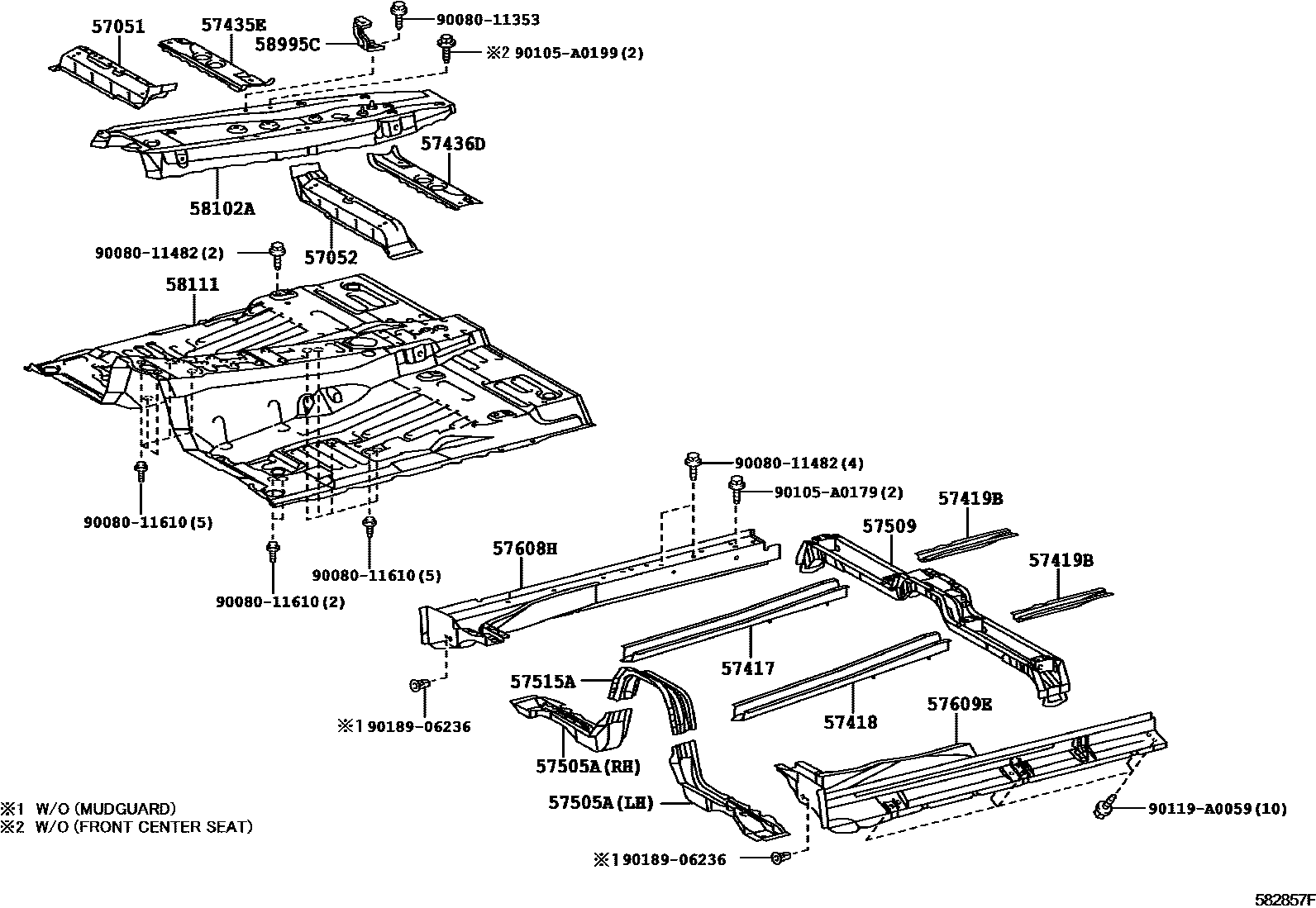

Toyota TUNDRA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0C010i200611-200904

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0C010i200611-200904

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0C020i200611-200904

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-0C020i200611-200904

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-0C020×2i200611-200904

57435EMEMBER, CENTER FLOOR SIDE, RH

main57435-0C020i201308-201708

57436DMEMBER, CENTER FLOOR SIDE, LH

main57436-0C020i201708-201907

57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-0C050i201308-201409

main57506-0C010i201308-201409

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-0C020i200611-200904

57515AREINFORCEMENT, FRONT FLOOR, CENTER

main57515-0C040i201308-201708

57608HREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH

main57608-0C010i200611-200904

57609EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH

main57609-0C010i200611-200904

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-0C020i200611-200903

main58102-0C021i200904-201005

main58102-0C022i201708-201907

58111PAN, FRONT FLOOR

main58111-0C170i200611-200904

58995CBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0C040i200611-200707

NUMBER OF PASSENGER-FRONT:2; NUMBER OF PASSENGER-FRONT:2 REAR:3

9008011353

main90080-11353

9008011482

main90080-11482

9008011610

main90080-11610

90105A0179

main90105-A0179

90105A0199

main90105-A0199

90119A0059

main90119-A0059

9018906236

main90189-06236

22 parts on this diagram · 2 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota TUNDRA

This section contains 43 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota TUNDRA. Key components include: PROTECTOR, STEP COVER, RH, PROTECTOR, STEP COVER, LH, SPACER, STEP ARM, RH, SPACER, STEP ARM, LH, PLATE, STEP, RH.
