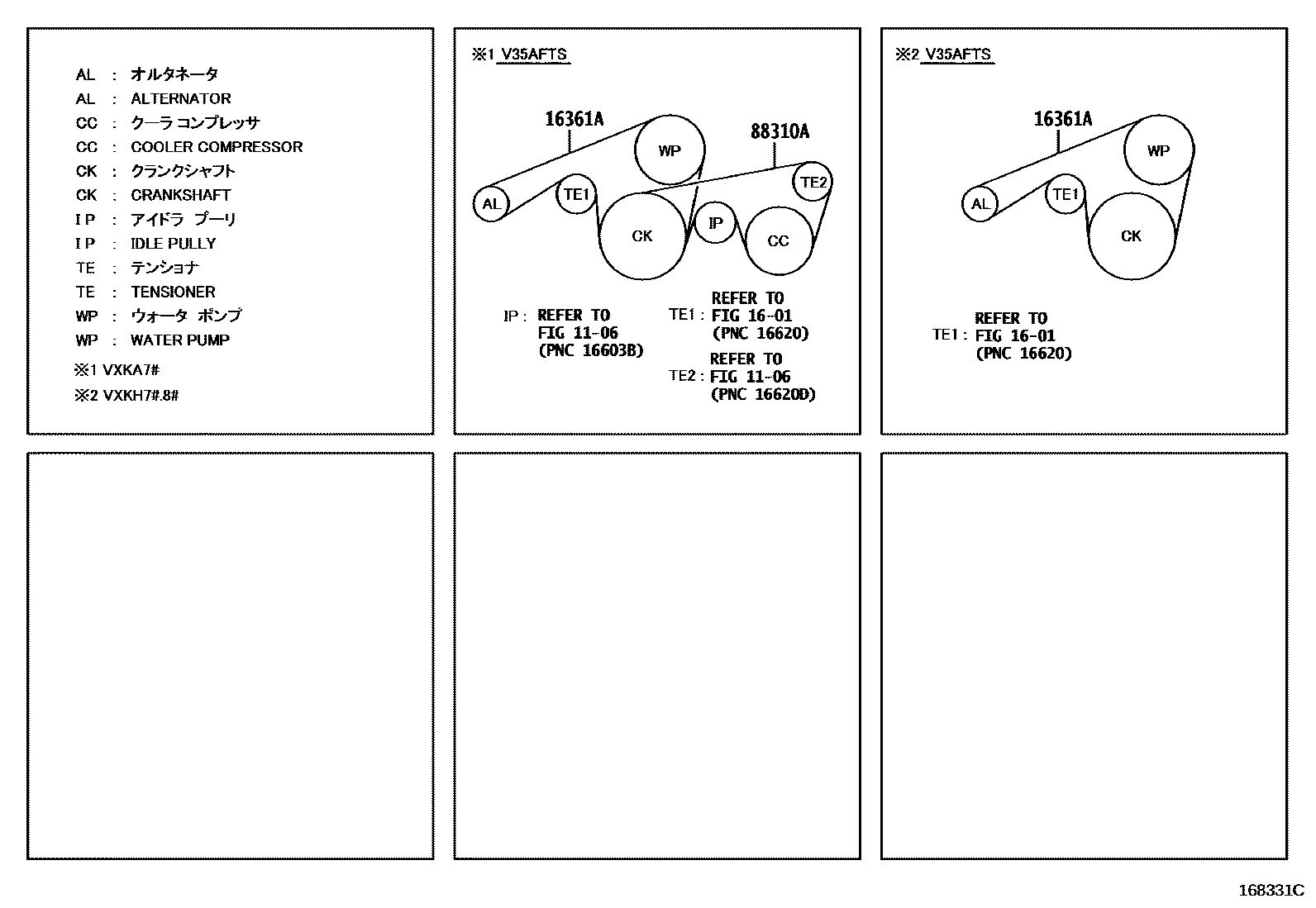

Toyota TUNDRA/SEQUOIA — V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-A2028i202111-202408

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-A2028i202111-202408

L=1148

4 parts on this diagram · 1 diagram in section

V-BELT for Toyota TUNDRA/SEQUOIA

This section contains 4 genuine Toyota parts for the V-BELT system of the Toyota TUNDRA/SEQUOIA. Key components include: TIMING GEAR COVER & REAR END PLATE, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
