Toyota TUNDRA/SEQUOIA — METER

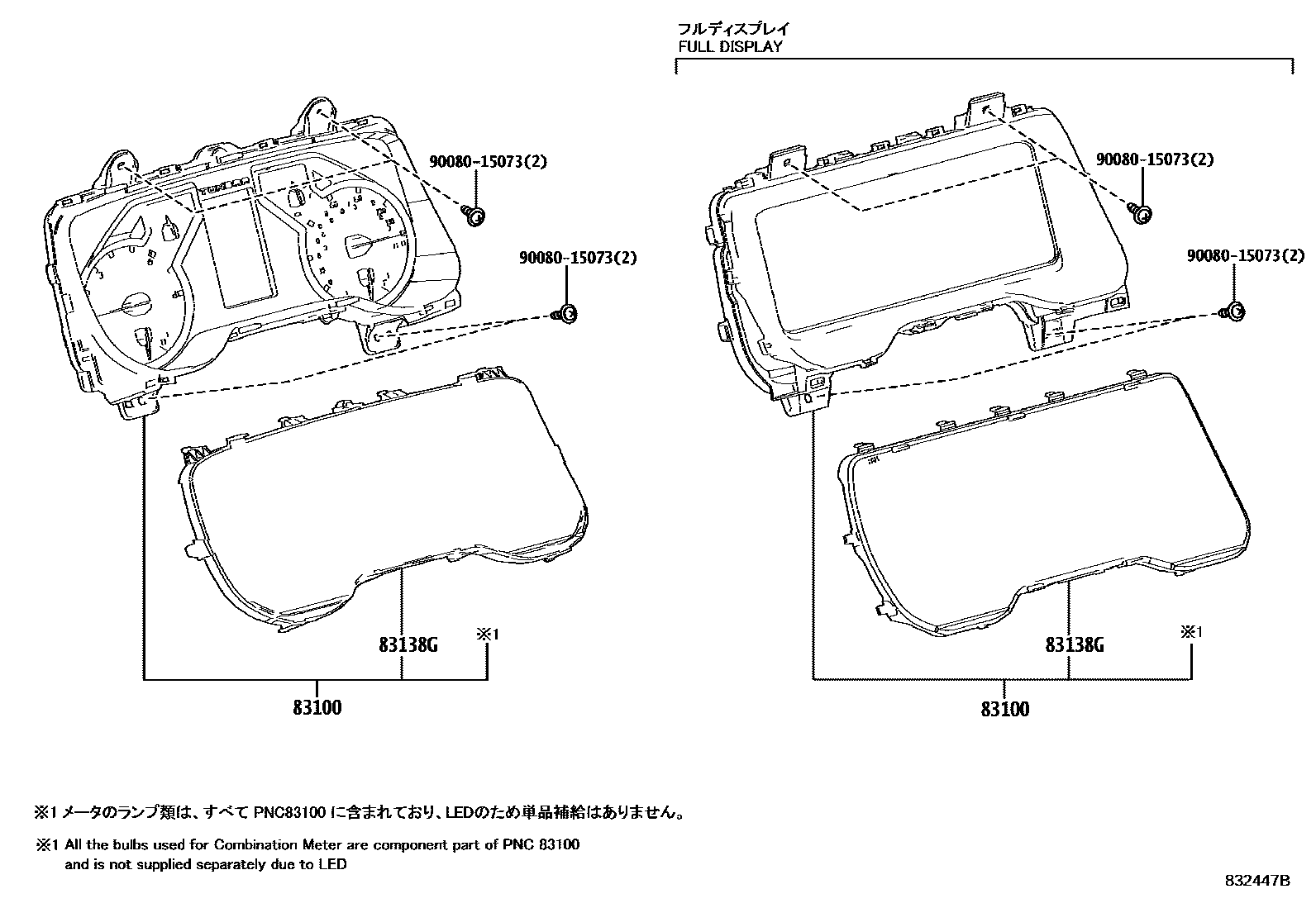

83100METER ASSY, COMBINATION

main83800-0CV70i202207-202406

DENSO,*614

main83800-0CV71i202406-202409

DENSO

main83800-0CW20supersedes 83800-0CS60i202111-202203

YAZAKI,*614; YAZAKI,FUEL TANK-122L & LEV3,*614

main83800-0CW21supersedes 83800-0CS61i202204-202409

YAZAKI,*614; YAZAKI,FUEL TANK-122L & LEV3,*614

main83800-0CW30supersedes 83800-0CS72i202111-202203

DENSO,*614; DENSO,FUEL TANK-122L & LEV3,*614

main83800-0CW31i202204-202206

DENSO,*614; DENSO,FUEL TANK-122L & LEV3,*614

main83800-0CW32i202207-202212

DENSO,*614; DENSO,FUEL TANK-122L & LEV3,*614

main83800-0CW33supersedes 83800-0CS73i202308-202406

DENSO,*614

main83800-0CW34i202406-202408

DENSO

main83800-0CW40i202203-202204

DENSO,*614

main83800-0CW41i202204-202206

DENSO,*614

main83800-0CW42i202207-202212

DENSO,*614

main83800-0CW43i202301-202406

DENSO,*614

main83800-0CW44i202406-202408

DENSO

main83800-0CX50i202207-202406

DENSO,*614; DENSO,HEADLAMP-3 LOW BEAM & 1 HIGH BEAM,*614; DENSO,HEADLAMP-3 LOW BEAM&1 HIGH BEAM&TRD PRO PACKAGE,*614

main83800-0CX51i202406-202408

DENSO

main83800-AN030supersedes 83800-AN010i202409-202507

YAZAKI,*614; YAZAKI,FUEL TANK-122L & LEV3,*614

main83800-AN050i202409-202507

DENSO,*614

main83800-AN070i202409-202507

DENSO,*614

main83800-AN100i202409-202507

*614

main83800-0CS60i202111-202203

YAZAKI,*614; YAZAKI,FUEL TANK-85L & LEV3,*614

main83800-0CS61i202204-202409

YAZAKI,*614; YAZAKI,FUEL TANK-85L & LEV3,*614

main83800-0CV80i202111-202203

YAZAKI,CANADA SPEC&FUEL TANK-85L & LEV3,*614; YAZAKI,CANADA SPEC,*614; YAZAKI,MIDDLE AMERICA SPEC,*614; YAZAKI,NEW CALEDONIA SPEC,*614

main83800-0CV81i202204-202308

YAZAKI,CANADA SPEC,*614; YAZAKI,MIDDLE AMERICA SPEC,*614

main83800-0CV90i202111-202203

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CV91i202204-202206

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CV92i202207-202212

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CV93i202301-202308

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CW10i202207-202406

DENSO,MEXICO SPEC,*614

main83800-0CW11i202406-202409

DENSO,MEXICO SPEC

main83800-0CW70i202203-202204

DENSO,MEXICO SPEC,*614

main83800-0CW71i202204-202206

DENSO,MEXICO SPEC,*614

main83800-0CW72i202207-202212

DENSO,MEXICO SPEC,*614

main83800-0CW73i202301-202406

DENSO,MEXICO SPEC,*614

main83800-0CW74i202406-202409

DENSO,MEXICO SPEC

main83800-0CW80i202207-202406

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CW81i202406-202409

DENSO,CANADA SPEC; DENSO,MIDDLE AMERICA SPEC

main83800-0CX10i202111-202203

YAZAKI,CANADA SPEC&FUEL TANK-122L & LEV3,*614; YAZAKI,CANADA SPEC,*614; YAZAKI,MIDDLE AMERICA SPEC&FUEL TANK-122L & LEV3,*614; YAZAKI,NEW CALEDONIA SPEC&FUEL TANK-122L & LEV3,*614

main83800-0CX11i202204-202308

YAZAKI,CANADA SPEC&FUEL TANK-122L & LEV3,*614; YAZAKI,CANADA SPEC,*614; YAZAKI,MIDDLE AMERICA SPEC&FUEL TANK-122L & LEV3,*614

main83800-0CX20i202111-202203

DENSO,CANADA SPEC&FUEL TANK-122L & LEV3,*614; DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC&FUEL TANK-122L & LEV3,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CX21i202204-202206

DENSO,CANADA SPEC&FUEL TANK-122L & LEV3,*614; DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC&FUEL TANK-122L & LEV3,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CX22i202207-202212

DENSO,CANADA SPEC&FUEL TANK-122L & LEV3,*614; DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC&FUEL TANK-122L & LEV3,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CX23i202301-202406

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CX24i202406-202408

DENSO,CANADA SPEC

main83800-0CX30i202203-202204

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CX31i202204-202206

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CX32i202207-202212

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CX33i202301-202406

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CX34i202406-202409

DENSO,CANADA SPEC; DENSO,MIDDLE AMERICA SPEC

main83800-0CX60i202207-202406

DENSO,CANADA SPEC&HEADLAMP-3 LOW BEAM & 1 HIGH BEAM,*614; DENSO,CANADA SPEC&HEADLAMP-3 LOW BEAM&1 HIGH BEAM&TRD PRO PACKAGE,*614; DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC&HEADLAMP-3 LOW BEAM & 1 HIGH BEAM,*614; DENSO,MIDDLE AMERICA SPEC&HEADLAMP-3 LOW BEAM&1 HIGH BEAM&TRD PRO PACKAGE,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-0CX61i202406-202409

DENSO,CANADA SPEC; DENSO,CANADA SPEC&HEADLAMP-3 LOW BEAM & 1 HIGH BEAM; DENSO,CANADA SPEC&HEADLAMP-3 LOW BEAM&1 HIGH BEAM&TRD PRO PACKAGE; DENSO,MIDDLE AMERICA SPEC; DENSO,MIDDLE AMERICA SPEC&HEADLAMP-3 LOW BEAM & 1 HIGH BEAM; DENSO,MIDDLE AMERICA SPEC&HEADLAMP-3 LOW BEAM&1 HIGH BEAM&TRD PRO PACKAGE

main83800-0CX70i202207-202406

DENSO,MEXICO SPEC&HEADLAMP-3 LOW BEAM & 1 HIGH BEAM,*614; DENSO,MEXICO SPEC,*614

main83800-0CX71i202406-202409

DENSO,MEXICO SPEC; DENSO,MEXICO SPEC&HEADLAMP-3 LOW BEAM & 1 HIGH BEAM

main83800-AN010i202409-202508

YAZAKI,*614; YAZAKI,FUEL TANK-85L & LEV3,*614

main83800-AN020i202409-202508

YAZAKI,CANADA SPEC&FUEL TANK-85L & LEV3,*614; YAZAKI,CANADA SPEC,*614; YAZAKI,NEW CALEDONIA SPEC,*614

main83800-AN040i202409-202507

YAZAKI,CANADA SPEC&FUEL TANK-122L & LEV3,*614; YAZAKI,CANADA SPEC,*614; YAZAKI,NEW CALEDONIA SPEC&FUEL TANK-122L & LEV3,*614

main83800-AN060i202409-202507

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-AN080i202409-202507

DENSO,CANADA SPEC,*614; DENSO,MIDDLE AMERICA SPEC,*614

main83800-AN090i202409-202507

DENSO,MEXICO SPEC,*614

main83800-AN110i202409-202507

CANADA SPEC,*614; MIDDLE AMERICA SPEC,*614

main83800-AN120i202409-202507

MEXICO SPEC,*614

main83800-AN130i202409-202507

*614; HEADLAMP-3 LOW BEAM & 1 HIGH BEAM,*614; HEADLAMP-3 LOW BEAM&1 HIGH BEAM&TRD PRO PACKAGE,*614

main83800-AN140i202409-202507

CANADA SPEC&HEADLAMP-3 LOW BEAM & 1 HIGH BEAM,*614; CANADA SPEC&HEADLAMP-3 LOW BEAM&1 HIGH BEAM&TRD PRO PACKAGE,*614; CANADA SPEC,*614; MIDDLE AMERICA SPEC&HEADLAMP-3 LOW BEAM & 1 HIGH BEAM,*614; MIDDLE AMERICA SPEC&HEADLAMP-3 LOW BEAM&1 HIGH BEAM&TRD PRO PACKAGE,*614; MIDDLE AMERICA SPEC,*614

main83800-AN150supersedes 83800-AN130i202409-202507

MEXICO SPEC&HEADLAMP-3 LOW BEAM & 1 HIGH BEAM,*614; MEXICO SPEC,*614

83138GGLASS, COMBINATION METER

main83852-0CS60i202204-202409

main83852-0CS70i202111-202409

9008015073

main90080-15073

3 parts on this diagram · 2 diagrams in section

METER for Toyota TUNDRA/SEQUOIA

This section contains 5 genuine Toyota parts for the METER system of the Toyota TUNDRA/SEQUOIA. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER.
