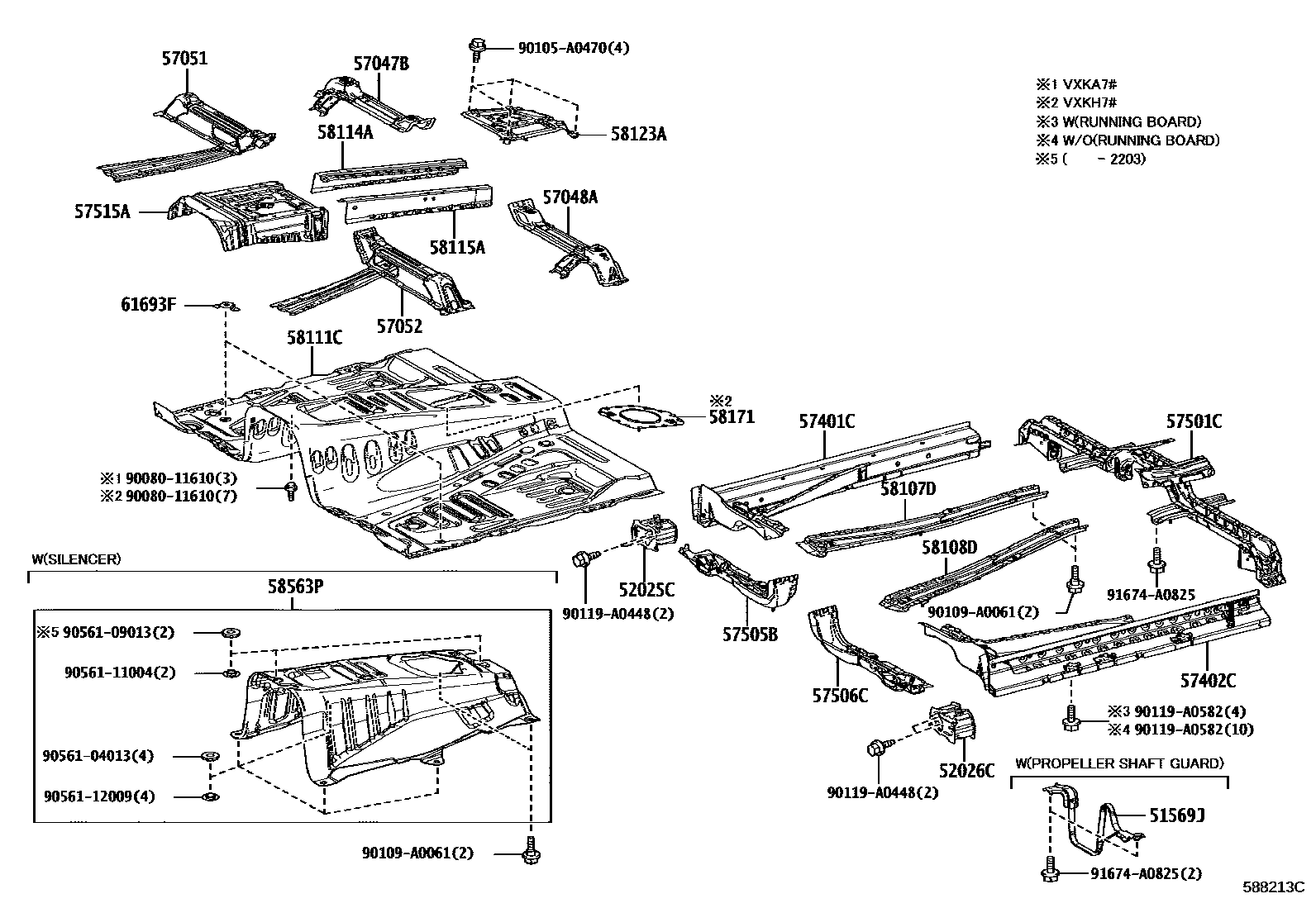

Toyota TUNDRA/SEQUOIA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51569JGUARD, PROPELLER SHAFT
52025CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52026CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH
57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER
57505BREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH
57506CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH
57515AREINFORCEMENT, FRONT FLOOR, CENTER
58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
main58108-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111
58111CPAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
main58114-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111
58115AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58171REINFORCEMENT, PARKING BRAKE BASE
58563PSILENCER, FRONT FLOOR
61693FBRACKET, FRONT FLOOR
9008011610
main90080-11610
90105A0470
main90105-A0470
90109A0061
main90109-A0061
90119A0448
main90119-A0448
90119A0582
main90119-A0582
9056104013
main90561-04013
9056109013
main90561-09013
9056111004
main90561-11004
9056112009
main90561-12009
91674A0825
main91674-A0825
32 parts on this diagram · 4 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota TUNDRA/SEQUOIA
This section contains 53 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota TUNDRA/SEQUOIA. Key components include: GUARD, PROPELLER SHAFT, BRACKET SUB-ASSY, CAB FRONT MOUNTING, RH, BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH, BRACKET SUB-ASSY, CAB REAR MOUNTING, RH, BRACKET SUB-ASSY, CAB REAR MOUNTING, LH.
