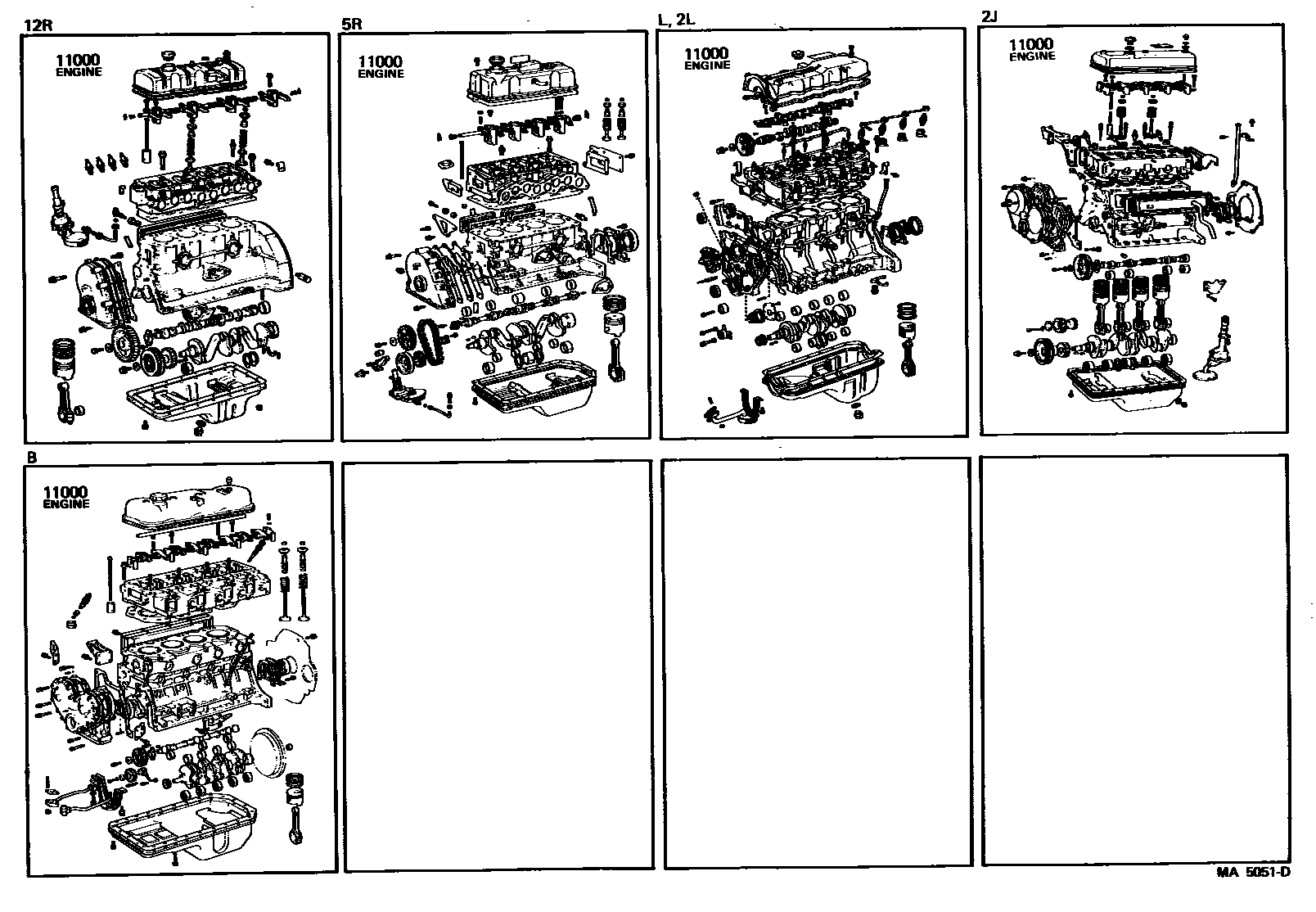

Toyota TOYOACE — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-31145i12R..RY20197903-198001

main19000-31146i12R..RY20198001-198201

sub19000-31291

main19000-31281i12R..RY21198201-198507

main19000-44171i5R..RY32198201-198507

main19000-44260i5R..RY31197903-198001

sub15301-44080

main19000-44261i5R..RY31198001-198201

main19000-48060i2J..JY30197903-198204

main19000-48061i2J..JY30198204-198308

main19000-54020iL..LY20,30197903-198105

sub11321-54013

main19000-54021iL..LY20,30198105-198107

main19000-54022iL..LY20,30198107-198107

sub11354-54010

sub11355-54030

sub91611-40814

main19000-54083iL..LY20,30198107-198202

main19000-54084iL..LY20,30198202-198204

sub11321-54014

sub13568-54050

sub13613-54020

sub90109-08087

sub90170-08184

sub94611-10800

main19000-54085iL..LY20,30198204-198205

sub11321-54014

sub13568-54050

sub13613-54020

main19000-54086iL..LY20,30198205-198308

main19000-54280iL..LY20198308-198507

sub19000-54281

main19000-54350i2L..LY21,31198308-198407

main19000-54351i2L..LY21,31198407-198507

sub19000-54500

main19000-56090iB..BY30198009-198201

sub22177-56042

sub22811-56011

sub90179-08161

sub91611-41014

main19000-56091iB..BY30198201-198209

main19000-56092iB..BY30198209-198308

sub19000-56120

main19000-56110iB..BY31198308-198408

main19000-56130iB..BY31198501-198507

main19000-56150iB..BY31198501-198507

W/PS

main19000-56250iB..BY31198408-198501

main19000-56260iB..BY31198408-198501

W/PS

1 parts on this diagram · 1 diagram in section
