Toyota TOYOACE — BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-92515i197903-198507

main67006-92515i197903-198507

67885WEATHERSTRIP, BACK DOOR, RH

main65980-92515i197903-198507

main65997-92515i197903-198507

UPR CORNER LH

67886WEATHERSTRIP, BACK DOOR, LH

main65990-92515i197903-198507

68131GLASS, BACK DOOR

main65781-92500×2i197903-198507

68132GUARD, BACK DOOR

main65459-92500×4i197903-198507

68291WEATHERSTRIP, BACK DOOR GLASS

main65783-92500×2i197903-198507

68293KEY, BACK WINDOW WEATHERSTRIP

main65784-92500×2i197903-198507

9331116012

main93311-16012

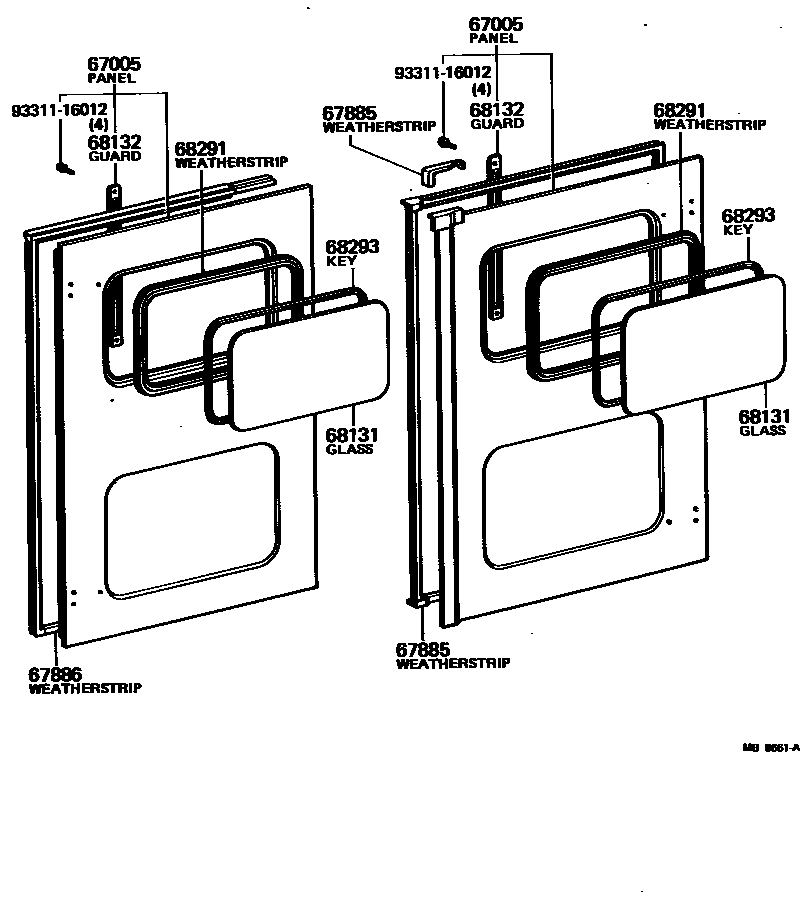

8 parts on this diagram · 1 diagram in section

BACK DOOR PANEL & GLASS for Toyota TOYOACE

This section contains 8 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota TOYOACE. Key components include: PANEL SUB-ASSY, BACK DOOR, WEATHERSTRIP, BACK DOOR, RH, WEATHERSTRIP, BACK DOOR, LH, GLASS, BACK DOOR, GUARD, BACK DOOR.
