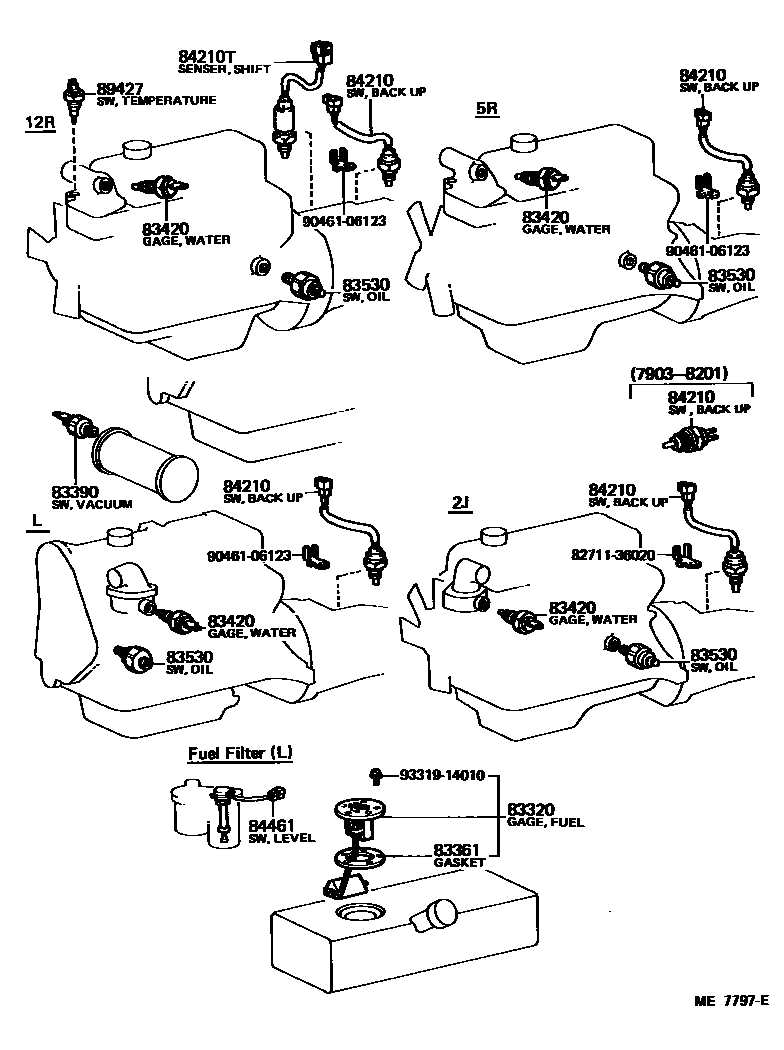

Toyota TOYOACE — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1

83320GAGE ASSY, FUEL SENDER

main83320-29016iJY30,LY20,30,RY20,3#197903-198201

main83320-29345iJY30,LY3#,RY20,3#198201-198507

83361GASKET, FUEL SENDER GAGE

main83361-20030iJY30,LY20,3#,RY20,3#197903-198507

83390SWITCH ASSY, VACUUM WARNING

main83390-55040iLY31198308-198507

main83390-60010iJY30,LY20,30197903-198308

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iJY30,LY20,3#,RY20,3#197912-198507

DENSO

main83420-20011iJY30,LY20,30,RY20,3#197903-197912

BLUE,YAZAKI

main83420-20020iJY30,LY20,3#,RY20,3#197912-198507

PINK,YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iJY30,RY20,3#198201-198503

main83530-14030iRY20,3#198503-198507

sub83530-28030

main83530-30030iRY31197903-198004

main83530-30060iLY31198503-198507

sub83530-60030

main83530-36011iLY3#198201-198503

84210SWITCH ASSY, BACK-UP LAMP

main84210-14010iJY30197903-198201

main84210-25020iLY20,3#,RY20,3#197903-198507

main84210-36010iJY30198201-198308

84210TSENSOR ASSY, SHIFT POINT

main84220-25020iRY20,30..RHD197903-198204

HONG KONG SPEC

84461SWITCH, LEVEL WARNING

main84461-14030iLY31198308-198507

main84461-30030iLY20,30197903-198002

main84461-30040iLY20,30198002-198308

89427SWITCH, TEMPERATURE DETECT

main89428-12030iRY20,30..RHD197903-198204

HONG KONG SPEC

8271136020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36020

9046106123

main90461-06123

9331914010

main93319-14010

12 parts on this diagram · 3 diagrams in section
