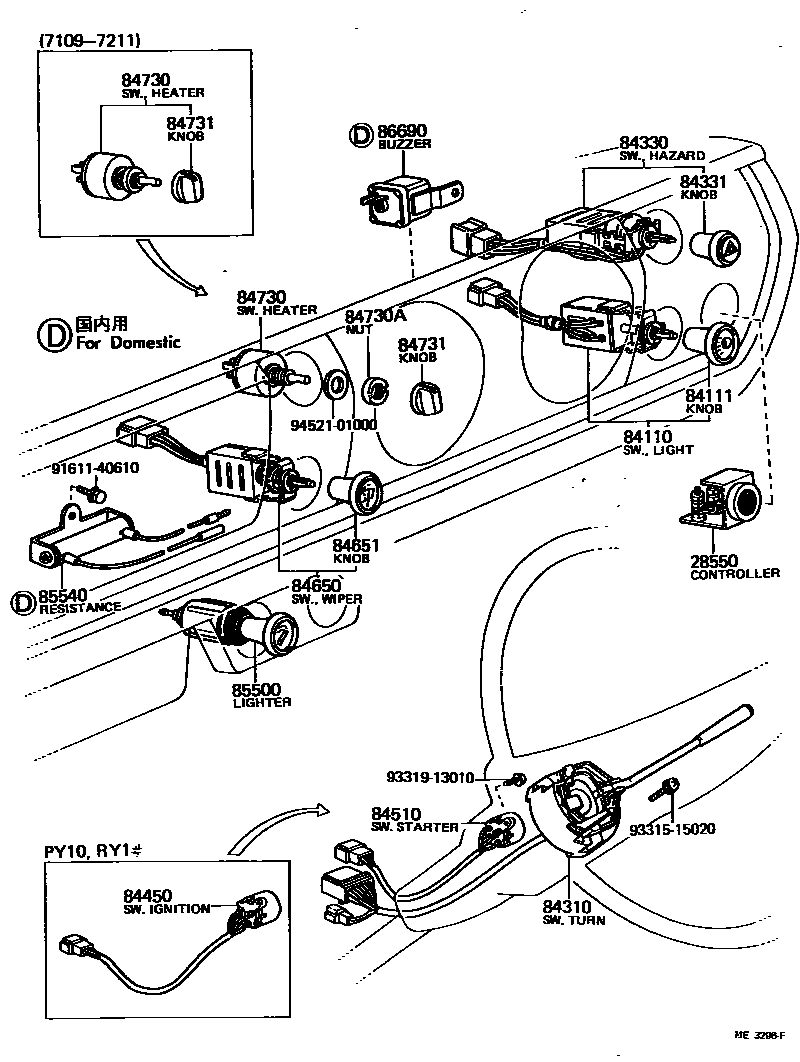

Toyota TOYOACE — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28550CONTROLLER ASSY, GLOW PLUG

main28550-46020i2J..JY16197207-197410

main28550-46021i2J..JY16197410-197902

84110SWITCH ASSY, LIGHT CONTROL, NO.1

main84110-25030iJY16,RY1#197109-197503

main84112-10010iJY16,RY1#197511-197902

main84112-25010iJY16,RY1#197503-197511

84111KNOB, LIGHT CONTROL SWITCH

main84111-10021iJY16,RY1#197109-197503

sub84111-10030

main84111-11020iJY16,RY1#197503-197902

84310SWITCH ASSY, TURN SIGNAL

main84310-25040iRY1#..RHD197109-197206

main84310-25050iRY1#..LHD197109-197206

main84310-25060iJY16,RY1#..LHD197206-197902

main84310-25070iJY16,RY1#..RHD197206-197902

84330SWITCH ASSY, HAZARD WARNING SIGNAL

main84330-35030iJY16,RY1#197109-197503

main84332-26010iJY16,RY1#197503-197902

84331KNOB, HAZARD WARNING SIGNAL SWITCH

main84331-10012iJY16,RY1#197503-197902

main84331-12011iJY16,RY1#197109-197503

84450SWITCH ASSY, IGNITION OR STARTER

main84450-25020iRY1#197206-197902

84510SWITCH ASSY, STARTER

main84510-25010iJY16197207-197902

sub84510-60030

84650SWITCH ASSY, WINDSHIELD WIPER

main84650-27011iJY16,RY1#197109-197503

main84652-27010iJY16,RY1#197503-197902

84651KNOB, WINDSHIELD WIPER SWITCH

main84651-10021iJY16,RY1#197109-197503

sub84651-10030

main84651-11010iJY16,RY1#197503-197509

main84651-11020iJY16,RY1#197509-197902

84730SWITCH ASSY, HEATER BLOWER

main84730-10031iJY16,RY1#197109-197211

main84732-10020iJY16,RY1#197211-197902

84730ANUT, HEATER BLOWER SWITCH

main90179-10155iJY16,RY1#197211-197902

84731KNOB, HEATER BLOWER SWITCH

main84731-10011iJY16,RY1#197109-197902

85500LIGHTER ASSY, CIGARETTE

main85500-10020iJY16,RY1#197109-197503

main85500-10030iJY16,RY1#197503-197902

sub85500-20042

85540RESISTANCE ASSY, CIGARETTE LIGHTER

86690BUZZER ASSY, SPEED INDICATOR

9161140610

main91611-40610

9331515020

main93315-15020

9331913010

main93319-13010

9452101000

main94521-01000

20 parts on this diagram · 4 diagrams in section
