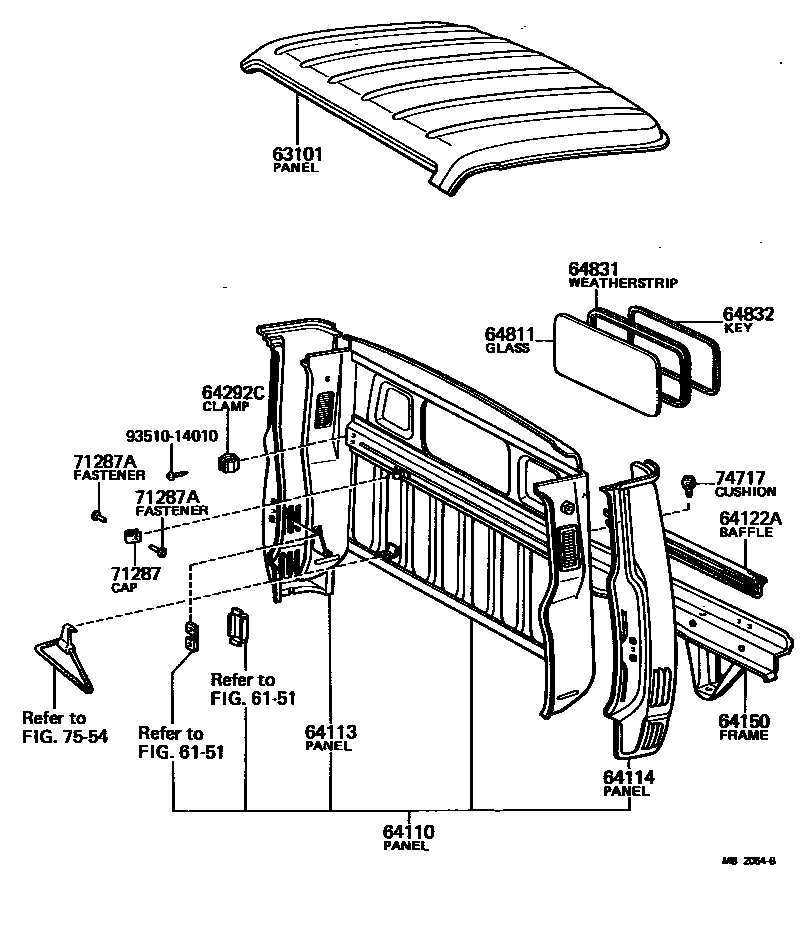

Toyota TOYOACE — ROOF PANEL & BACK PANEL

6151SIDE MEMBER

→ Go to FIG 61-51

63101PANEL SUB-ASSY, ROOF

main63111-95012i197109-197902

64110PANEL ASSY, FRONT BODY BACK

main64100-95020i197309-197902

main64100-95021i197309-197605

main64100-95024i197309-197902

main64100-95025i197309-197605

main64100-95026i197605-197902

main64100-95027i197605-197902

64113PANEL, BACK CORNER, OUTER RH

main64113-95011i197109-197902

64114PANEL, BACK CORNER, OUTER LH

main64114-95011i197109-197902

64122ABAFFLE, DUST REAR BODY

main64122-95011i197109-197902

64150FRAME ASSY, BACK

main64150-95016i197109-197605

main64150-95021i197305-197902

FOR AUSTRALIA

main64150-95023i197605-197902

64292CCLAMP, JACK HANDLE

main74716-95010i197109-197902

64811GLASS, BACK WINDOW

main64811-95010i197109-197902

TP.T=3.2

main64811-95015i197109-197902

*TEM,T=4.0,TP.T=4.0

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95010i197109-197902

main64831-95015i197109-197902

FOR T=4.0 GLASS

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010i197109-197902

71287CAP, PASSENGER SEAT BACK FRAME STOP

main71287-95111i197605-197902

71287AFASTENER, LEATHER(FOR PASSENER SEATBACK FRAME STOP CAP)

main90530-03007i197605-197902

L=10

main90530-03008i197605-197902

L=4.5

74717CUSHION (FOR JACK HANDLE)

main90541-10052i197109-197902

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

9351014010

main93510-14010

16 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK PANEL for Toyota TOYOACE

This section contains 16 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota TOYOACE. Key components include: SIDE MEMBER, PANEL SUB-ASSY, ROOF, PANEL ASSY, FRONT BODY BACK, PANEL, BACK CORNER, OUTER RH, PANEL, BACK CORNER, OUTER LH.
