Toyota TOYOACE — PARTIAL ENGINE ASSEMBLY

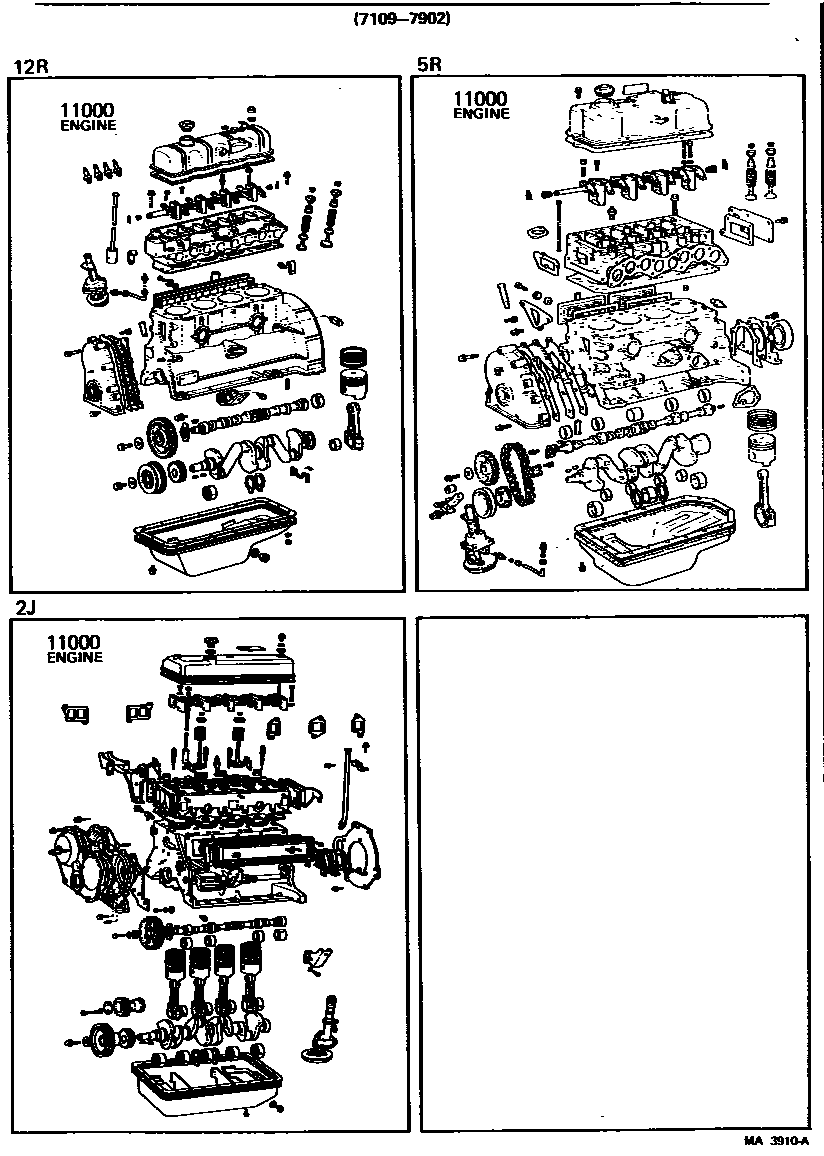

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-31141i197109-197208
W/PCV
sub16371-31021
sub27411-31033
sub99521-10897
main19000-31142i197208-197309
W/PCV
sub11201-39116
sub90999-09001
main19000-31143i197309-197503
W/PCV
main19000-31151i197109-197208
L/PCV
sub16371-31021
sub27411-31033
sub99521-10897
main19000-31152i197208-197309
L/PCV
sub11201-39126
sub90999-09001
main19000-31153i197309-197511
L/PCV
main19000-31220i197503-197511
W/PCV
main19000-31221i197511-197902
W/PCV
sub19000-31270
sub15301-31050
main19000-44073i197207-197304
sub90919-02041
main19000-44074i197304-197410
sub19000-44075
sub90910-05107
main19000-44110i197410-197511
sub90910-05107
main19000-44111i197511-197708
L/PCV
main19000-44112i197708-197902
L/PCV
main19000-44120i197507-197511
CHINA SPEC.
main19000-44121i197511-197708
CHINA SPEC.
main19000-44122i197708-197902
CHINA SPEC.
main19000-44140i197511-197708
W/PCV
main19000-44141i197708-197902
W/PCV
main19000-48012i197207-197708
main19000-48040i197708-197902

1 parts on this diagram · 1 diagram in section
