Toyota TOYOACE — FRONT VENTILATOR

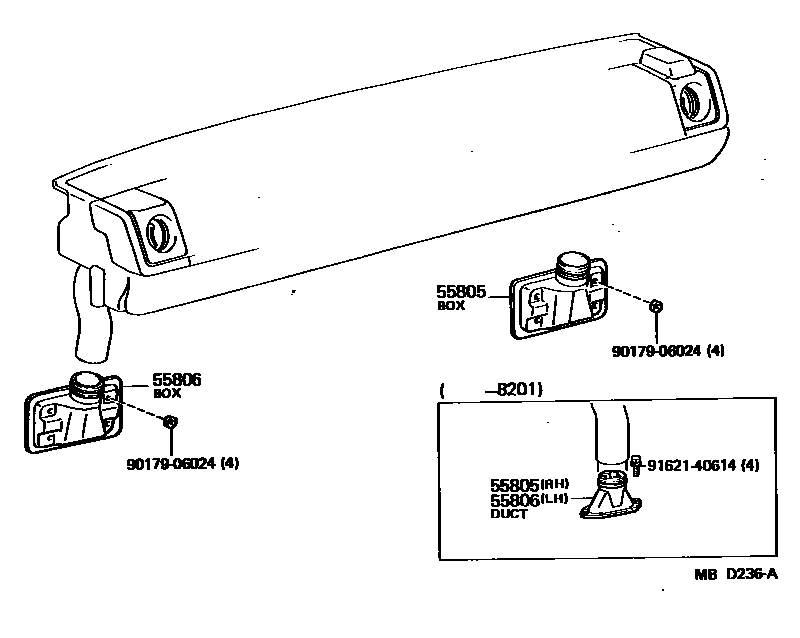

Parts diagram
55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
main55805-95010i197903-198201
main55805-95011i198201-198507
55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
main55805-95010i197903-198201
main55805-95011i198201-198507
9017906024
main90179-06024
9162140614
main91621-40614

4 parts on this diagram · 1 diagram in section

FRONT VENTILATOR for Toyota TOYOACE

This section contains 4 genuine Toyota parts for the FRONT VENTILATOR system of the Toyota TOYOACE. Key components include: DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH, DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH.
