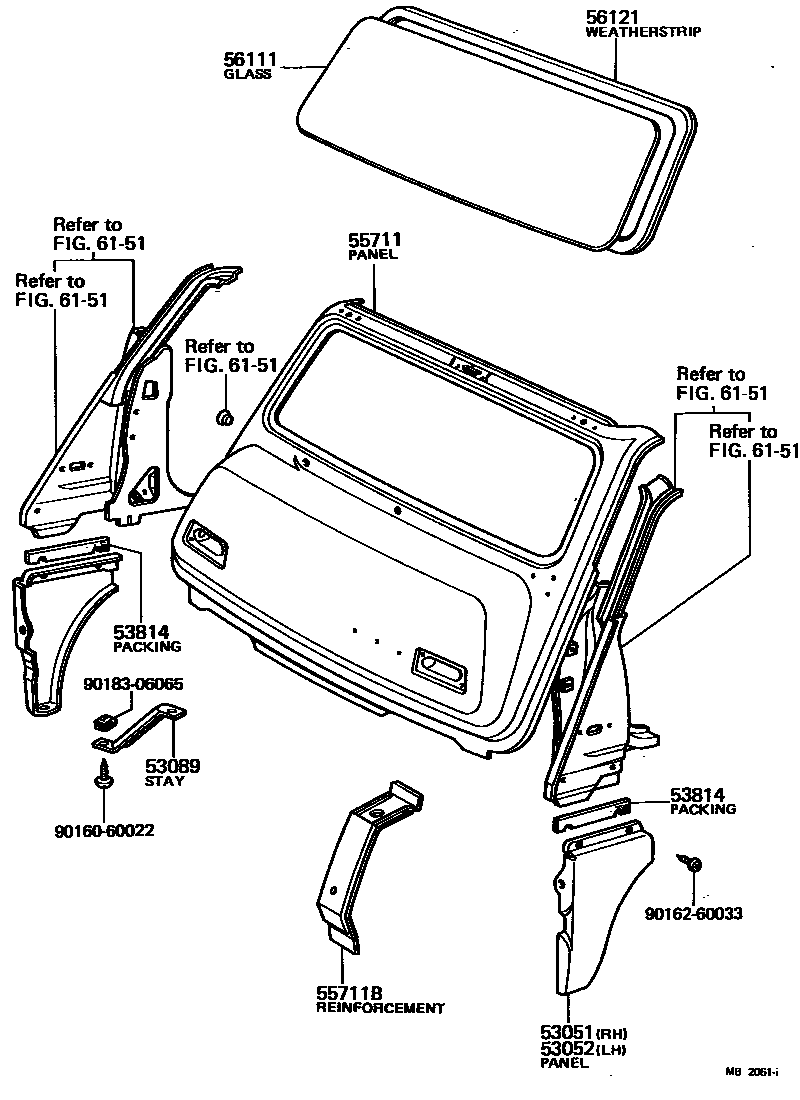

Toyota TOYOACE — FRONT PANEL & WINDSHIELD GLASS

53051PANEL SUB-ASSY, SKIRT, RH

main53811-95013i197109-197902

53052PANEL SUB-ASSY, SKIRT, LH

main53812-95013i197109-197902

53089STAY SUB-ASSY, SKIRT PANEL

main53813-95010i197109-197902

53814PACKING, SKIRT PANEL

main53814-95010i197109-197902

55711PANEL, COWL TOP, OUTER

main55710-95033i197109-197309

main55710-95035i197109-197309

main55710-95039i197309-197902

main55710-95043i197309-197902

main55710-95045i197309-197902

FOR AUSTRALIA

55711BREINFORCEMENT SUB-ASSY, FRONT PANEL

main55709-95014i197207-197902

main55709-95015i197604-197902

56111GLASS, WINDSHIELD

main56111-95012i197109-197902

ZN.TP.T=5.0

main56111-95013i197109-197902

LM.T=6.7

56121WEATHERSTRIP, WINDSHIELD

main56121-95012i197109-197902

main56121-95013i197109-197902

FOR T=6.7 GLASS

6151SIDE MEMBER

→ Go to FIG 61-51

9016060022

main90160-60022

9016260033

main90162-60033

9018306065

main90183-06065

12 parts on this diagram · 1 diagram in section

FRONT PANEL & WINDSHIELD GLASS for Toyota TOYOACE

This section contains 12 genuine Toyota parts for the FRONT PANEL & WINDSHIELD GLASS system of the Toyota TOYOACE. Key components include: PANEL SUB-ASSY, SKIRT, RH, PANEL SUB-ASSY, SKIRT, LH, STAY SUB-ASSY, SKIRT PANEL, PACKING, SKIRT PANEL, PANEL, COWL TOP, OUTER.
