Toyota TOYOACE — PARTIAL ENGINE ASSEMBLY

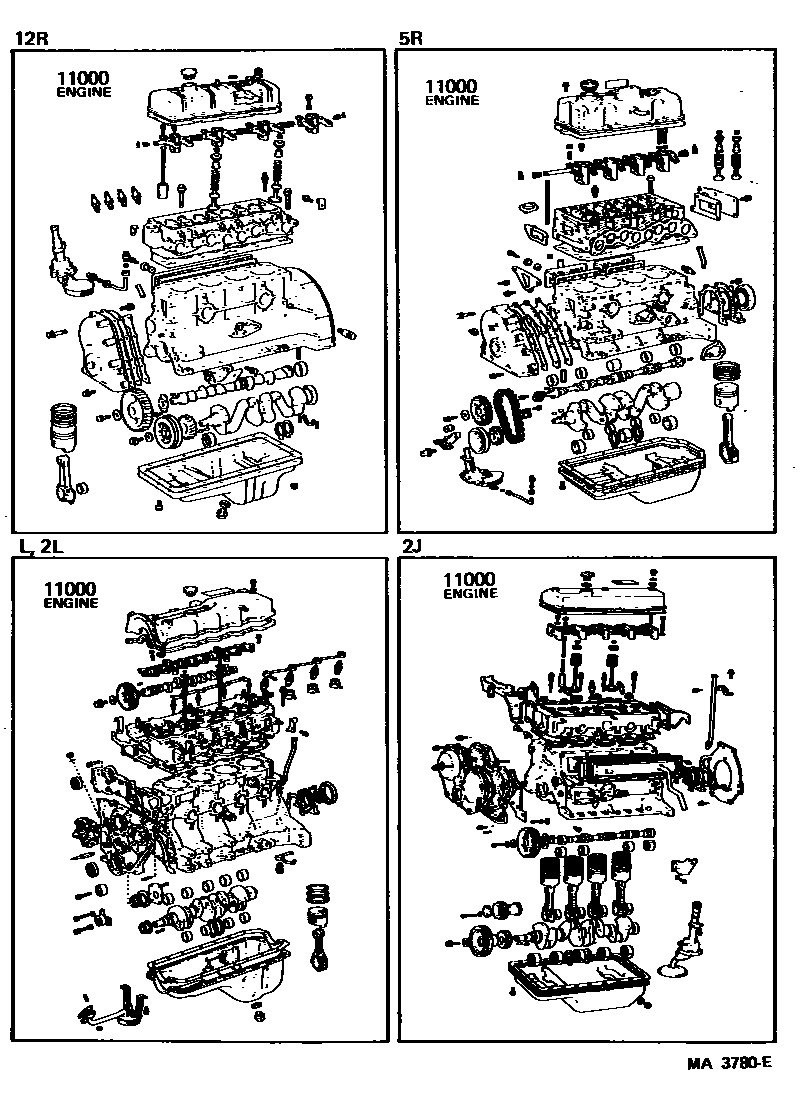

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-31270i197903-198001
main19000-31271i198001-198211
main19000-31272i198211-198507
main19000-44221i198201-198308
CHINA SPEC
main19000-44270i197903-198001
sub15301-44080
main19000-44271i198001-198507
main19000-44280i197903-198001
CHINA SPEC
sub15301-44080
main19000-44281i198001-198201
CHINA SPEC
main19000-48060i197903-198204
main19000-48061i198204-198308
main19000-54020i197903-198105
sub11321-54013
main19000-54021i198105-198107
main19000-54022i198107-198108
sub11354-54010
sub11355-54030
sub91611-40814
main19000-54083i198108-198202
main19000-54084i198202-198204
sub11321-54014
sub13568-54050
sub13613-54020
sub90109-08087
sub90170-08184
sub94611-10800
main19000-54085i198204-198205
sub11321-54014
sub13568-54050
sub13613-54020
main19000-54086i198205-198308
sub19000-54280
main19000-54350i198308-198407
main19000-54351i198407-198507
sub19000-54500

1 parts on this diagram · 1 diagram in section
