Toyota TOYOACE — HEATING & AIR CONDITIONING - SET

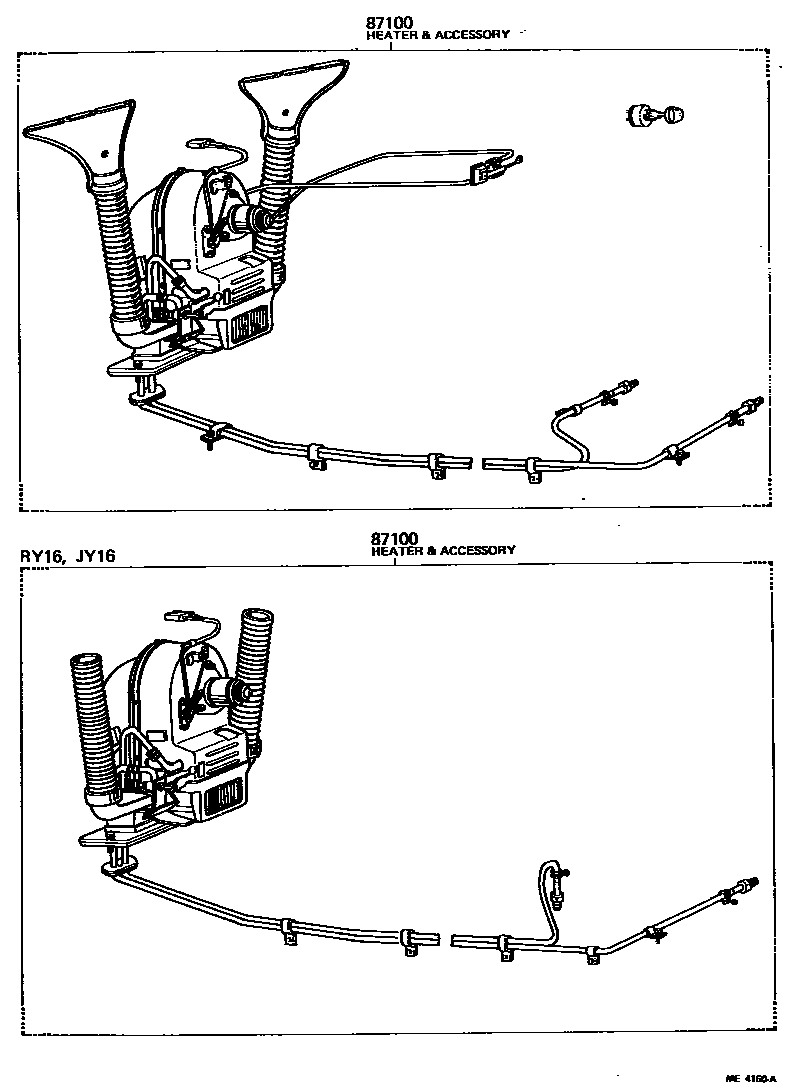

87100HEATER AND ACCESSORY ASSY

main87100-25102i197611-197902

main87100-25140i197207-197504

main87100-25142i197611-197902

main87100-25150i197207-197504

main87100-25160i197207-197405

main87100-25161i197405-197504

main87100-25162i197611-197902

main87100-25180i197611-197902

main87100-25190i197611-197902

main87100-25210i197611-197902

main87100-29035i197109-197504

main87100-29065i197207-197504

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota TOYOACE

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota TOYOACE. Key components include: HEATER AND ACCESSORY ASSY.
